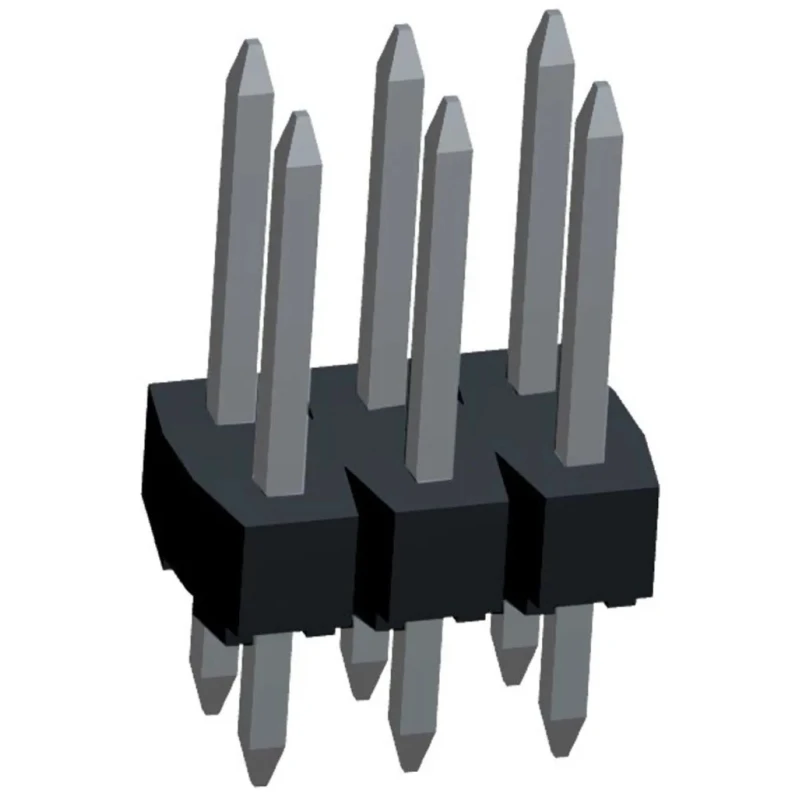

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123

Name: Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123
Brand: Molex
SKU: 206732
Price: 0.94 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Designed for board to board and wire to board applications.
Breakaway design allows cutting to custom sizes for enhanced design flexibility.
High retention force for secure mating connections.
Contacts provide high mechanical stability after soldering.
Constructed with brass contacts and tin plating for durability.
Operating voltage up to 350 V with a current rating of 3 A.
Suitable for industrial, medical, consumer electronics, and automotive safety systems.
Supports operating temperatures ranging from -55°C to 125°C.

Product Description

Molex 90131-0123 C-Grid III Series Straight Through Hole Pin Header delivers reliable connectivity for printed circuit boards with 6 male brass contacts arranged in 2 rows and a 2.54 mm pitch. This unshrouded pin header is designed for through hole mounting, ensuring robust solder connections and high mechanical stability. It supports a current rating of 3 A and voltage up to 350 V, making it suitable for a wide range of electronic applications.

The header’s breakaway design allows designers to cut it to the exact number of pins required, providing flexibility in layout and assembly. The tin-plated brass contacts offer superior conductivity and corrosion resistance, maintaining contact integrity over prolonged use. Operating temperature range from -55°C to 125°C enables use in diverse operating conditions.

Applications for the Molex C-Grid III Series include industrial equipment, medical devices, consumer electronics, telecommunications, and automotive safety systems. Its reliable wire-to-board connection system provides secure mating with compatible C-Grid III sockets and crimp housings.

The product is engineered to meet stringent industry requirements with consistent performance, making it a trusted component for manufacturing and repair tasks requiring durable and efficient PCB connectors.

Designed for board to board and wire to board applications. Breakaway design allows cutting to custom sizes for enhanced design flexibility. High retention force for secure mating connections. Contacts provide high mechanical stability after soldering.

Constructed with brass contacts and tin plating for durability. Operating voltage up to 350 V with a current rating of 3 A. Suitable for industrial, medical, consumer electronics, and automotive safety systems. Supports operating temperatures ranging from -55°C to 125°C.

Explore more from Molex and browse PCB connectors and headers on EnvMart for comprehensive solutions in electronic component connectivity.
