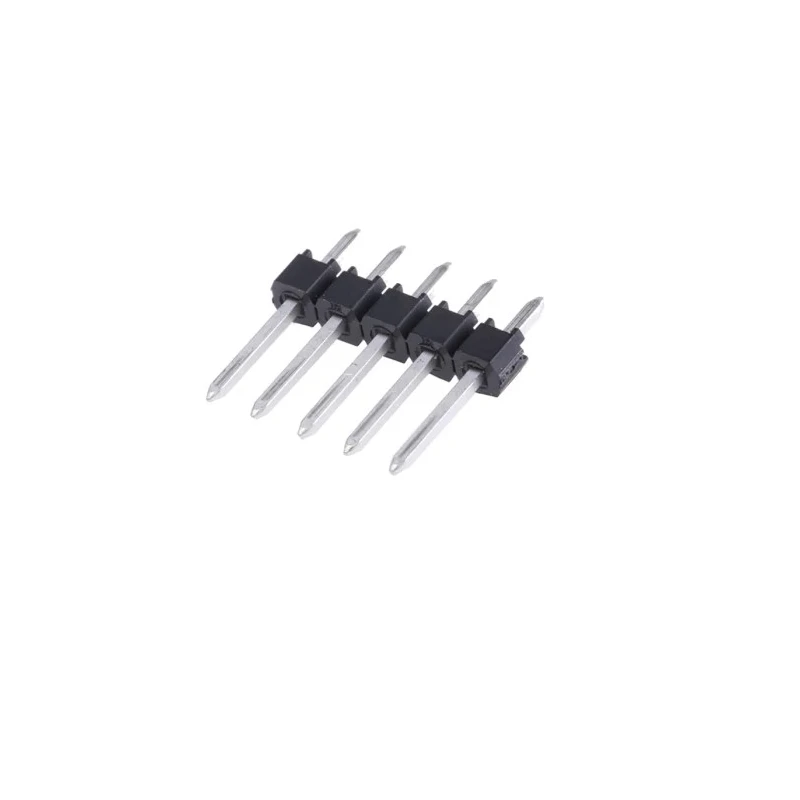

Molex C-Grid III Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0125

Molex 90120-0125 C-Grid III Series Straight Through Hole Pin Header is a critical component for electronic interconnections in PCBs. Designed with a 2.54 mm pitch and 5 male contacts in a single row, this header provides reliable and robust connections suitable for diverse industrial and consumer electronics applications.

The pin header features brass contact material with tin plating ensuring corrosion resistance and longevity. Its unshrouded design allows for straightforward soldering and visual inspection during assembly. Engineered for high mechanical stability once soldered, it supports currents up to 3 A and withstands voltages up to 350 V.

Operating temperature ranges from -55°C to 125°C, making it suitable for demanding environments. The through-hole mount type provides durable mechanical support on the PCB, and the breakaway design allows easy customization by cutting to the desired length, enhancing design flexibility.

This C-Grid III series pin header mates perfectly with corresponding C-Grid III PCB sockets and crimp housings for both board-to-board and wire-to-board applications. It is used extensively in sectors such as industrial machinery, computers, medical devices, telecommunications, consumer electronics, transportation electronics, and automotive safety systems.

Industry standard 2.54 mm pitch ensures compatibility across applications. 5 male contact pins in a single row offer compact, reliable connections. Breakaway design allows custom length tailoring for circuit needs. High retention force ensures stable and secure mating connections.

Suitable for harsh temperature conditions from -55°C to 125°C. Through-hole mounting type with solder termination for robust PCB mounting. Gold plating is not present but tin plating provides corrosion resistance. Broad application in industrial, medical, consumer, telecommunications, and automotive sectors.

Molex C-Grid III pin headers are integral for connector systems requiring wire-to-board and board-to-board connectivity solutions. Their precision design and mechanical stability improve product reliability in manufacturing and assembly setups. Explore the extensive range of Molex PCB headers and connectors on EnvMart for advanced electronic component needs.
