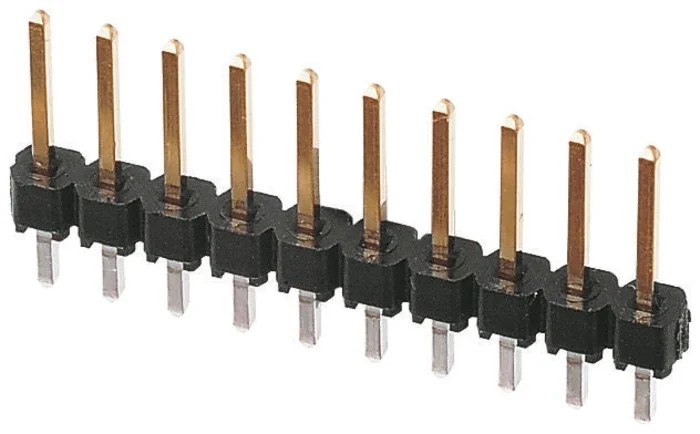

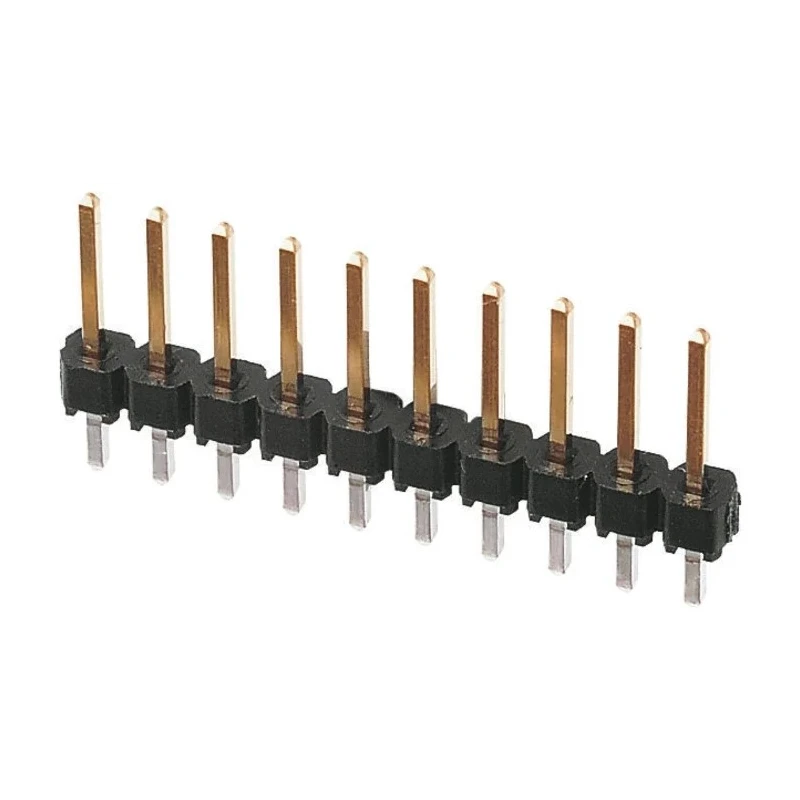

Molex C-Grid III Series Straight Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0128

Molex 90120-0128 C-Grid III Series Straight Through Hole Pin Header features 8 contacts spaced at a 2.54 mm pitch in a single, unshrouded row. The device is designed to meet demanding industrial and commercial PCB interconnection requirements with a focus on high retention force and mechanical stability once soldered.

This pin header is made with a polyester housing for durability, brass contacts with tin plating for corrosion resistance and optimized conductivity. Its wire-to-board connector system, through-hole mounting, and solder termination type ensure a robust and reliable connection.

Operating temperature spans from -55°C to 125°C, making it suitable for harsh environments in sectors such as industrial machinery, medical equipment, consumer electronics, telecommunications infrastructure, and automotive safety electronics.

The breakaway feature allows customization of pin length to suit specific board designs, adding flexibility during PCB manufacturing. Its 350 V voltage and 3 A current ratings accommodate typical PCB connector power requirements.

Features a straight through-hole mounting style for durable and secure installation. Contact plating is tin over brass for excellent conductivity and corrosion resistance. Suitable for wire-to-board connector systems providing strong mechanical stability once soldered.

Operates reliably in temperature ranges from -55°C to 125°C, supporting industrial applications. Rated for voltage up to 350 V and current up to 3 A per contact. Breakaway design allows cutting to size for flexible PCB designs.

Single row configuration with 8 contacts spaced at 2.54 mm pitch. Unshrouded pins with male contact gender and 2.9 mm tail pin length for solder termination. Applicable across various industries including industrial, medical, computing, telecommunications, and automotive electronics.

These pin headers contribute to reliable PCB connector assemblies in industrial, laboratory, construction, telecommunications, and transportation applications. They are ideal components for manufacturing and repair of electronic equipment where secure mechanical and electrical connections are critical.
