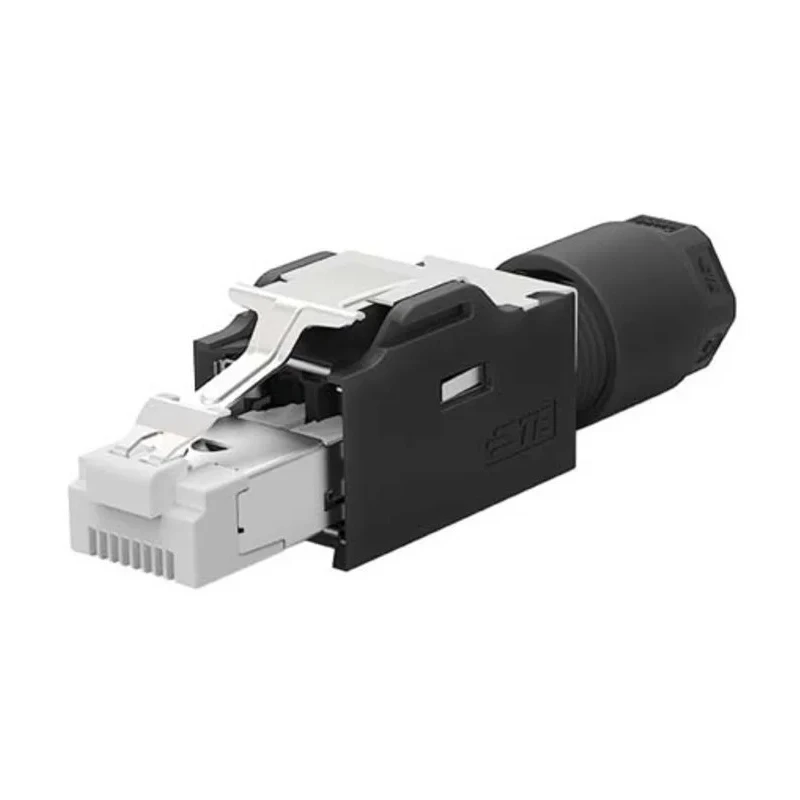

TE Connectivity Cat6a Shielded Industrial RJ45 Male Connector, Cable Mount, Shielded Straight 1 Port 8 Way RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 60.06mm |
| Model | RJ45 |
| Depth | 17.66mm |
| IP Rating | IP20 |
| Connector Type | Plug |
| Number Of Ways | 8 |
| Width | 13.9mm |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | 2120892 |
| Number Of Ports | 1 |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet 10 Gbit/s performance |
| Shield Type | Shielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Male |
| LAN Category | Cat6a |
| Ethernet Connector Type | RJ45 |
Key Features
- Suitable for industrial Ethernet up to 10 Gbit/s performance.
- Cat6a shielded plug with straight orientation and 1 port, 8 way configuration.
- Tool-free IDC contacts with automatic wire cut-off for error-free installation.
- Gold over nickel plated copper alloy contacts ensure reliable connectivity.
- IP20 rated housing suitable for industrial environments.
- Temperature range from -40°C to 85°C for broad application spectrum.
- Compact dimensions with length 60.06mm, width 13.9mm, and depth 17.66mm.
- Mates with standard 8 position RJ45 sockets as per DIN EN 60603-7-1 standard.
Product Description
TE Connectivity 2120892-1 Ethernet RJ45 male connector is designed for industrial Cat6a shielded cable applications supporting high-speed Ethernet performance up to 10 Gbit/s. This cable mount, straight orientation connector features a single 1 port and 8 way contacts configuration.
The shielded housing and gold over nickel plated copper alloy contacts ensure robust signal integrity and durability in demanding industrial environments. The IDC contact design allows tool-free wire termination with an automatic wire cut-off function, enabling quick, error-free installation without specialized tools.
Its IP20 rated enclosure safeguards internal components from solid particle ingress, making it suitable for controlled industrial settings. Operating temperature ranges from -40°C to 85°C, expanding its usability in varied thermal conditions.
Compact in size with 60.06mm length, 13.9mm width, and 17.66mm depth, the connector complies with DIN EN 60603-7-1 standards for RJ45 sockets, providing compatibility with a wide range of Ethernet ports and equipment. This connector is ideal for industrial automation, manufacturing networking, and other high-speed data communication applications.
Suitable for industrial Ethernet up to 10 Gbit/s performance. Cat6a shielded plug with straight orientation and 1 port, 8 way configuration. Tool-free IDC contacts with automatic wire cut-off for error-free installation.
Gold over nickel plated copper alloy contacts ensure reliable connectivity. IP20 rated housing suitable for industrial environments. Temperature range from -40°C to 85°C for broad application spectrum. Compact dimensions with length 60.06mm, width 13.9mm, and depth 17.66mm.
Mates with standard 8 position RJ45 sockets as per DIN EN 60603-7-1 standard.
This TE Connectivity 2120892 Series RJ45 connector is widely used in industrial communications, factory automation networks, and other Ethernet-connected device installations requiring reliable, high-speed data transfer. Browse the Ethernet Connectors category on EnvMart for compatible products and accessories.
