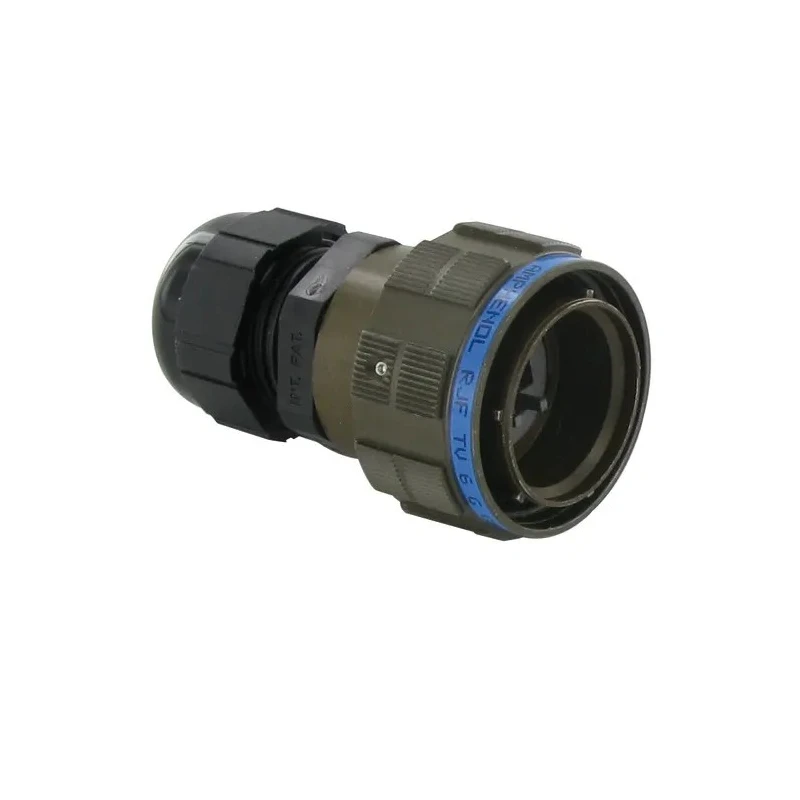

Amphenol Socapex RJFTV Series RJ45 Male Connector Cable Mount Cat5e Shielded Straight 1 Port 8 Way
Specifications
| Country of Origin | India |
|---|---|
| Brand | Amphenol Socapex |
| Orientation | Straight |
| Length | 56mm |
| Model | RJ45 |
| Depth | 38mm |
| IP Rating | IP68 |
| Connector Type | Plug |
| Number Of Ways | 8 |
| Width | 38mm |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | RJFTV |
| Number Of Ports | 1 |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold |
| Connector Gender | Male |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- Supports Ethernet class D Cat5e connection for 10 BaseT, 100 BaseTX, and 1000 BaseT networks.
- IP68 sealed for protection against dust and water ingress.
- Constructed with gold-plated copper alloy contacts for reliable signal transmission.
- Operates effectively in temperatures from -40°C to 85°C.
- Robust cable mount design with screw termination type for secure connections.
- Features a patented RJStop system enabling usage of standard RJ45 cordsets.
- Shock, vibration, and traction resistant with EMI protection and 4-position mechanical polarization.
- Compliant with ISO/IEC 11801, MIL-C-26500, NAS 1599, NF F 16 101 standards and RoHS directives.
Product Description
Amphenol Socapex RJFTV6MG RJ45 Male Connector Cable Mount Cat5e Shielded Straight 1 Port 8 Way Ethernet Connector delivers robust data acquisition and transmission performance in harsh industrial environments. Specifically designed for Ethernet class D Cat5e networks supporting 10 BaseT, 100 BaseTX, and 1000 BaseT, it ensures reliable network connectivity under challenging conditions.
The connector is IP68 rated, providing superior protection against dust and water ingress. Its gold-plated copper alloy contacts guarantee excellent conductivity and corrosion resistance. With operating temperatures ranging from -40°C to 85°C, it suits a wide range of industrial application scenarios.
The cable mount connector employs a screw termination type for secure and stable installation. The patented RJStop system allows compatibility with standard RJ45 cordsets, enhancing installation flexibility. Mechanical features such as shock and vibration resistance, EMI shielding, and 4-position mechanical coding ensure reliable performance and prevent misconnection.
Manufactured according to stringent standards including ISO/IEC 11801, MIL-C-26500, NAS 1599, and compliant with RoHS directives, this connector meets high quality and environmental requirements. The housing features an aluminum shell with olive drab cadmium plating for enhanced durability.
Typical industrial applications include railway systems, radar installations, communication shelters, battlefield communication equipment, and naval systems where resilience and performance are critical.
Supports Ethernet class D Cat5e networks for high-speed data transmission. IP68 sealing provides robust protection against environmental factors. Gold-plated copper alloy contacts ensure reliable conductivity. Wide operating temperature range of -40°C to 85°C.
Screw termination type for secure cable connections. Patented RJStop system compatible with standard RJ45 cordsets. Shock, vibration, and EMI resistant with mechanical polarization. Compliant with ISO/IEC 11801, MIL-C-26500, NAS 1599, NF F 16 101 standards and RoHS compliant.
Durable aluminum shell with cadmium plating for industrial environments. Explore the extensive range of industrial connectors on EnvMart for your networking and electronic component needs.
