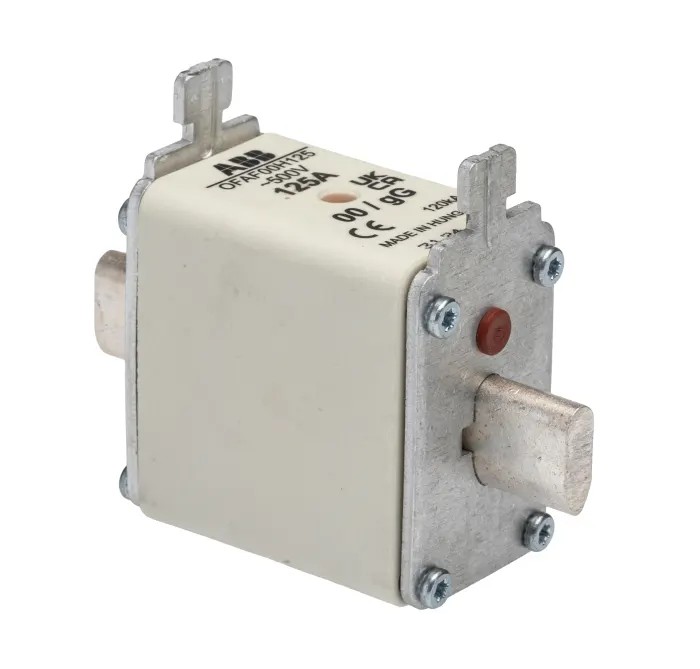

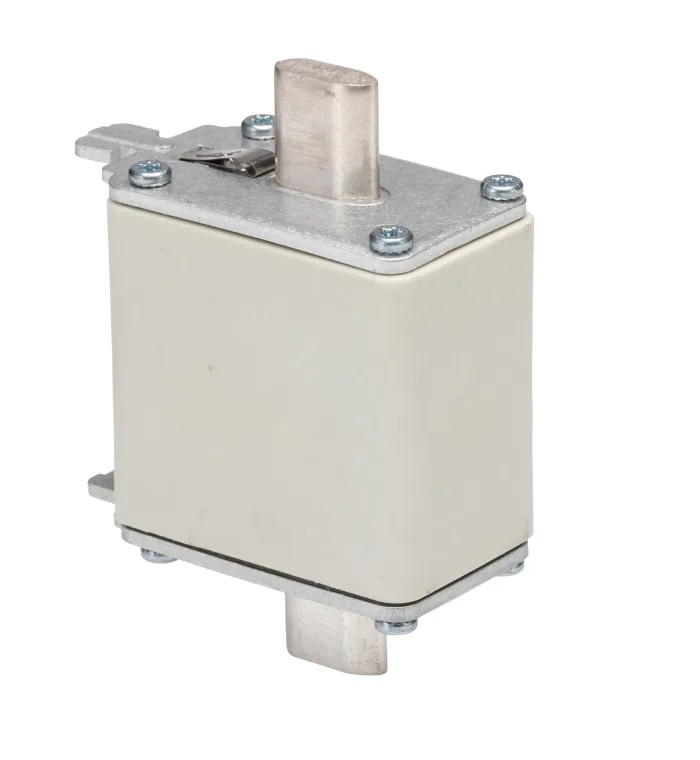

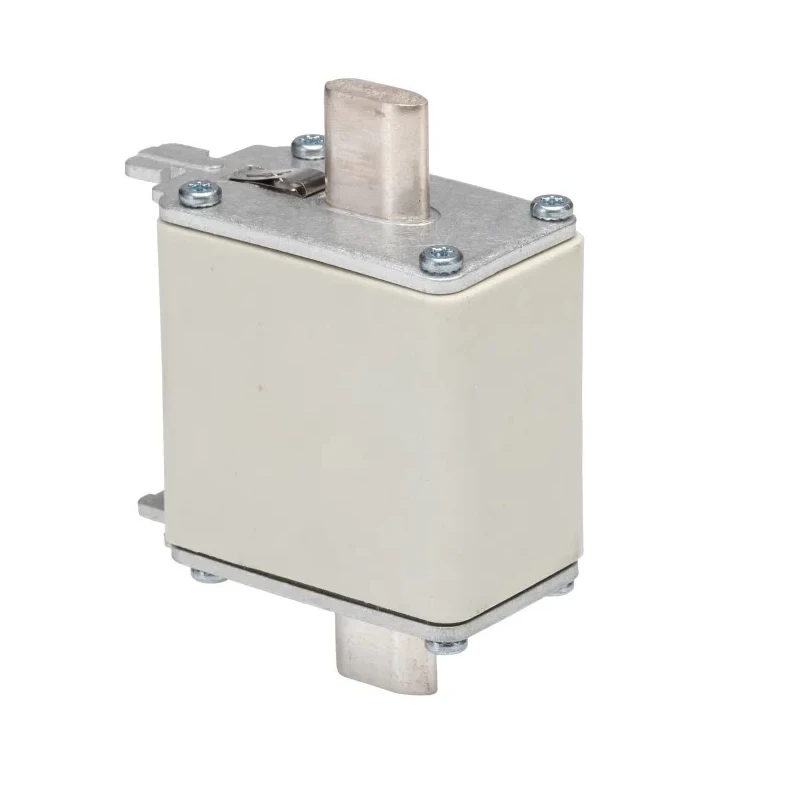

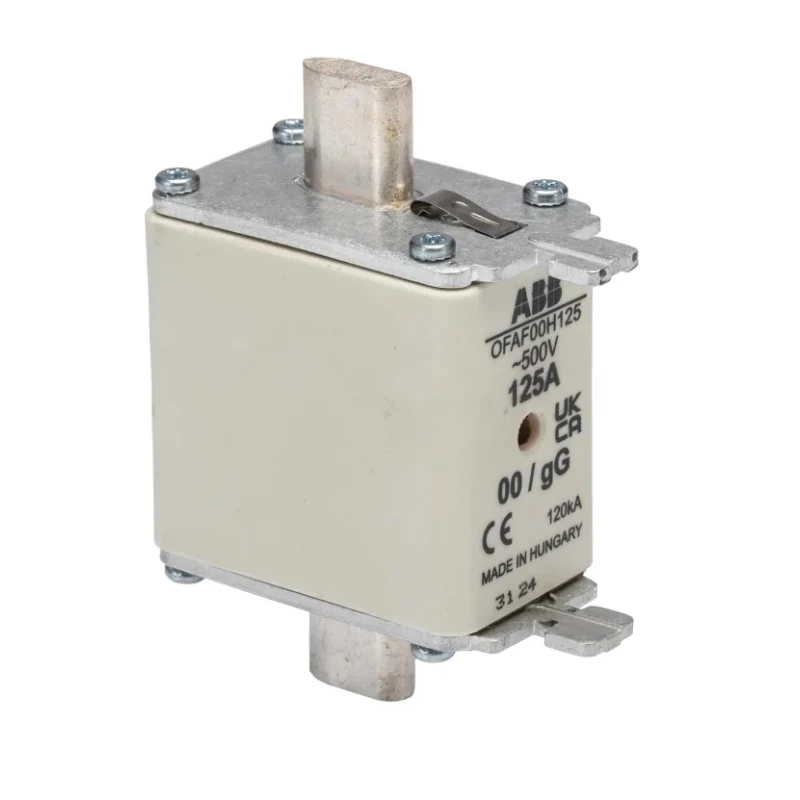

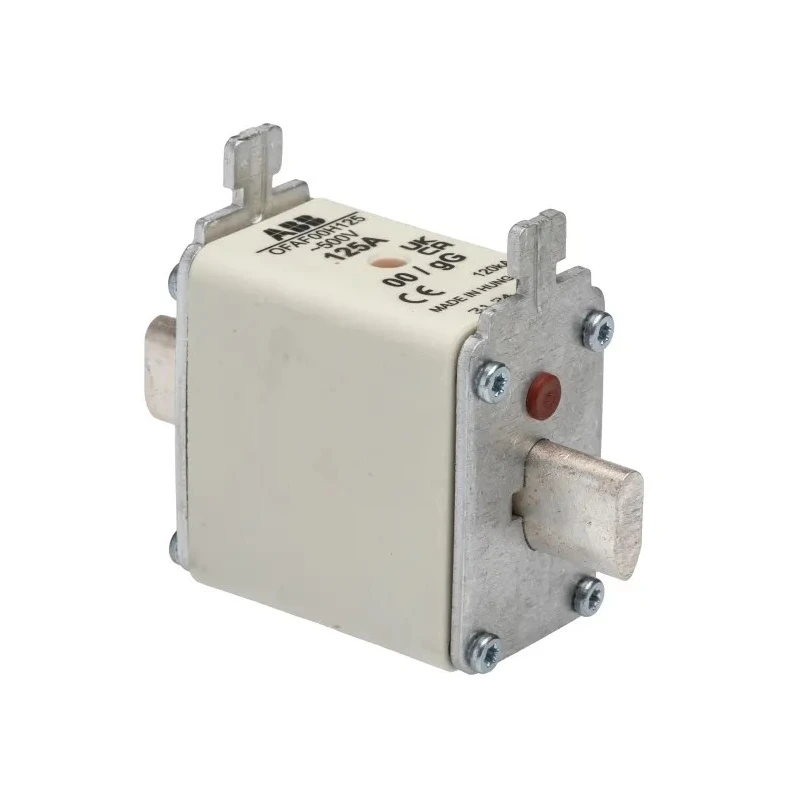

ABB 125A Centred Tag Fuse NH00 500V High Rupture Capacity Blade Tag OFAF00H125 1SCA022627R1630

ABB NH00 Centred Tag Fuse 125A 500V, Model OFAF00H125 1SCA022627R1630, is a high rupture capacity (HRC) fuse designed to provide dependable electrical protection in industrial and commercial settings. Operating at a rated current of 125 amperes and voltage of 500 volts, this fuse complies with DIN IEC 60269 standards, ensuring safety and performance.

The centred blade tag design simplifies installation and maintenance by allowing secure connections within switchgear and control panels. Its compact dimensions (79mm overall length, 29.5mm height, and 59.5mm width) facilitate efficient use in constrained spaces. The blade tag type enhances electrical contact, supporting reliable operation.

With a tag width of 15mm and a length of 50mm, this fuse is well suited to a gG application category, capable of interrupting high fault currents safely. Its high rupture capacity makes it ideal for protecting electrical circuits against overloads and short-circuits in various industrial applications including automation, manufacturing, and electrical distribution systems.

The ABB OFAF000H series assures consistent performance and protection, critical for maintaining system integrity and safety. Regular inspection and timely replacement after operation under fault conditions will ensure optimal working condition of the fuse.

The fuse has a current rating of 125 amperes suitable for robust electrical systems. It features a centred blade tag design facilitating secure and easy installation. The fuse size NH00 conforms to international fuse standards for compatibility.

Rated voltage is 500 volts, appropriate for various industrial applications. Compact dimensions allow efficient use in control panels and switchgear. High rupture capacity ensures protection against short circuits and overloads.

Durable construction ensures reliable operation under demanding conditions. Suitable for use in automation systems and electrical distribution. The blade tag type supports straightforward integration in existing fuse holders.

This fuse is a critical component in electrical protection schemes within industrial automation, manufacturing facilities, and other commercial environments requiring reliable and standardized electrical safety devices.
