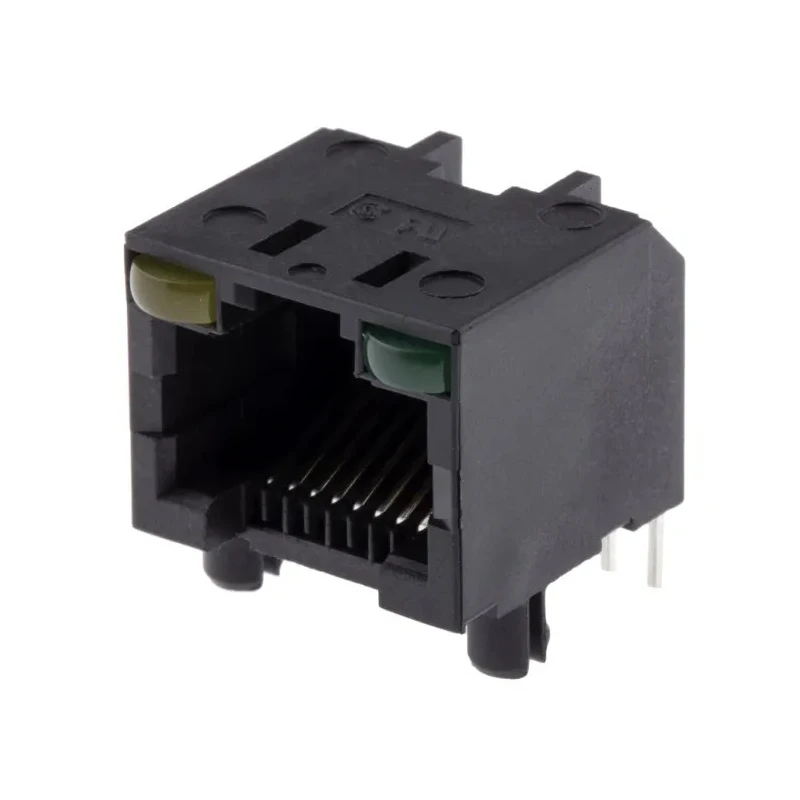

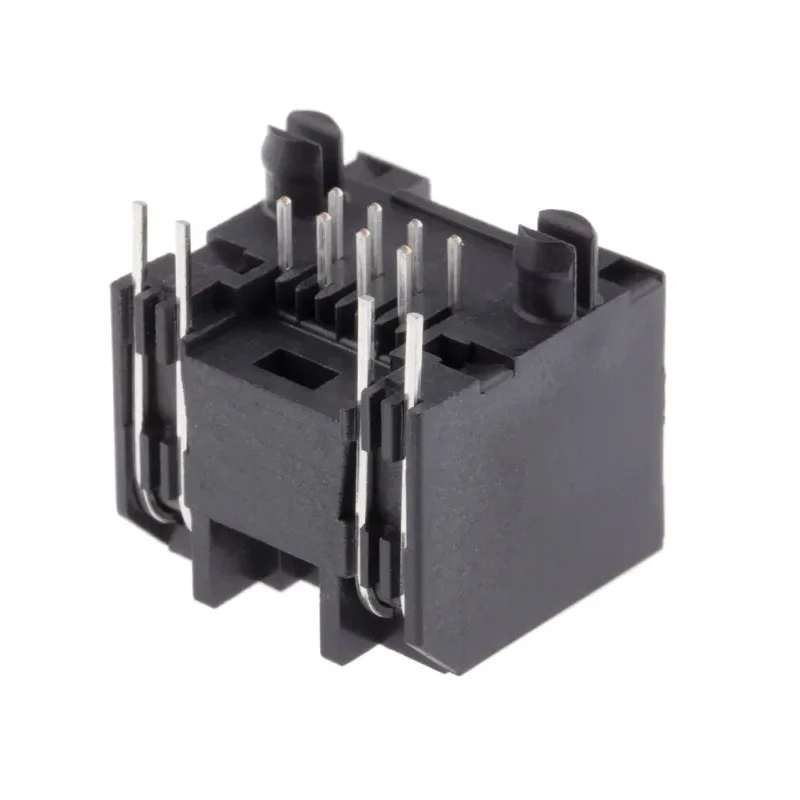

Amphenol Communications Solutions RJHS Series RJ45 Connector Female, Through Hole, Cat5 Unshielded Right Angle 1 Port 8

Amphenol Communications Solutions RJHS-4081 RJ45 Connector is a high-quality female modular jack designed for Cat5 Ethernet networks. This through hole mounted connector features unshielded contacts arranged in a right angle orientation for PCB integration. The phosphor bronze contacts plated with gold over nickel provide low contact resistance and high reliability for data transmission.

The socket supports standard RJ45 Ethernet interface with an 8-way configuration and a single port. It incorporates built-in LEDs that indicate network connection status with typical forward voltage and current ratings designed for efficient operation. Operating temperature from -55°C to 85°C ensures suitability for diverse industrial and commercial environments.

The RJHS series connectors have robust thermoplastic casings that offer mechanical strength while maintaining a compact form factor with dimensions of approximately 15.75 mm in length and 14.99 mm in depth. Solder termination and through hole mounting allow secure PCB attachment and durable connections.

This connector is widely used in Ethernet and telecom equipment, industrial networking devices, and other electronic systems requiring reliable Cat5 Ethernet connections. The unshielded design suits environments where electromagnetic interference is minimal or controlled.

This RJ45 modular jack features unshielded construction for Cat5 LAN category applications. The connector supports a current rating of 1.5 A and a voltage rating of 125 V ac. Phosphor bronze contacts plated with gold over nickel ensure reliable electrical connections.

Included LEDs provide operational status indication with forward current of 7 mA. Operating temperature ranges from -55°C to maximum 85°C for use in various environments. The connector is designed for solder termination and through hole mounting on PCBs.

Compact dimensions of 15.75 mm length and 14.99 mm depth allow easy integration in equipment. The RJHS series sockets feature rugged thermoplastic bodies for durability. Ideal for industrial, networking, and telecommunication applications requiring Cat5 Ethernet connections.
