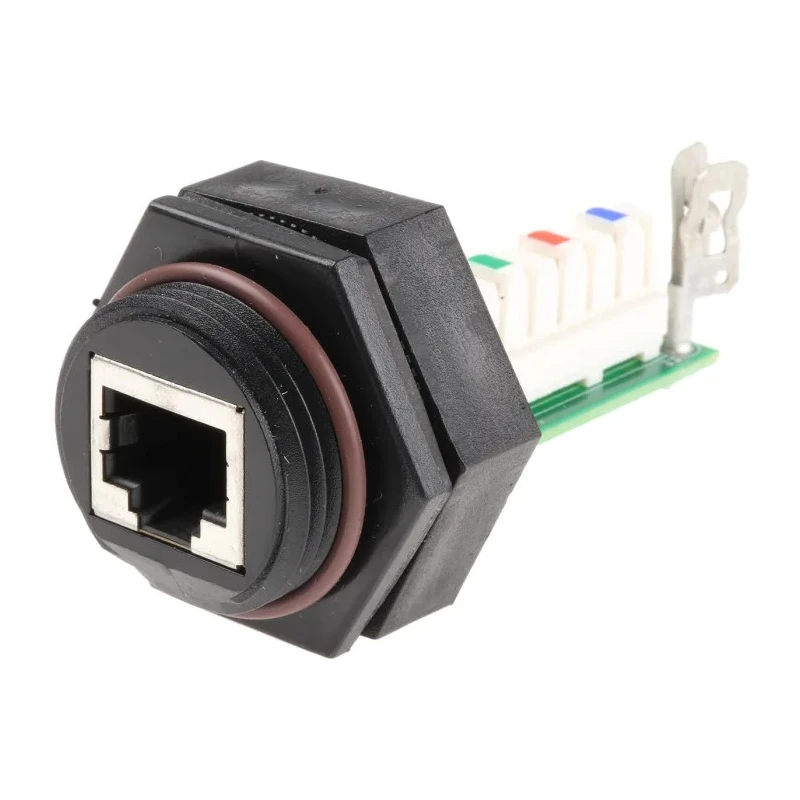

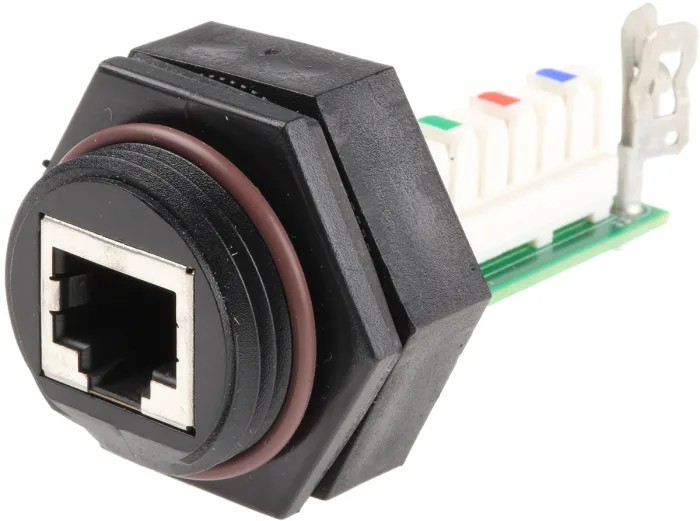

Brad from Molex ENDR Series RJ45 Connector Female Panel Mount Straight 1 Port RJ45

Free Delivery in India | Lowest Global Shipping Charges

Brad from Molex ENDR Series RJ45 Connector Female Panel Mount Straight 1 Port RJ45

Name: Brad from Molex ENDR Series RJ45 Connector Female Panel Mount Straight 1 Port RJ45
Brand: Brad from Molex
SKU: 186199
Price: 94.61 USD
Availability: InStock



Category Ethernet Connector Brand Brad from Molex Condition New

Specifications

Country of Origin	India
Brand	Brad from Molex
Orientation	Straight
Length	56mm
Model	RJ45
Depth	55.5mm
IP Rating	IP67
Connector Type	Receptacle
Width	32.8mm
Mount Type	Panel Mount
Contact Material	Copper Alloy
Series	ENDR
Number Of Ports	1
Termination Type	Screw
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Contact Plating	Gold
Connector Gender	Female
Ethernet Connector Type	RJ45
Check out	385-4197

Key Features

The connector is rated IP67 for dust-tight and waterproof protection when mated or capped.
Constructed from high quality ABS housing with copper alloy contacts plated in gold for reliable connection.
Operates in temperatures from -20°C to 80°C suitable for industrial applications.
Features a shielded port that prevents electrical interference during data transmission.
Mounts via a 1" - 14 UNC thread for secure installation in panels.
The connector is designed for Ethernet Category 5e standard performance.
Suitable for use in industry, datacom installations, and environments requiring rugged dust and water resistant network connectors.

Product Description

Brad from Molex RJ45 ENDR Series RJ45 Connector Female Panel Mount Straight 1 Port RJ45 provides a high-quality Ethernet connection with robust IP67 sealing for demanding industrial and commercial environments.

This connector features a female gender receptacle with screw termination and a straight orientation for easy panel mounting. The rugged housing made from high-grade ABS and copper alloy contacts plated with gold ensure durability and reliable conductivity. It supports a single port Ethernet connection suitable for category 5e network standards.

The ENDR series is designed to offer superior resistance to dust ingress and water exposure with an IP67 rating, making it ideal for installation in harsh environmental conditions. The connector operates reliably within a wide temperature range from -20°C to 80°C, capable of functioning in cold storage areas to warm industrial settings.

The port is shielded to protect against electrical interference, ensuring stable data transmission for critical telecommunication and networking applications. Mounting is facilitated through a standard 1" - 14 UNC thread, allowing secure attachment to panels or enclosures.

Applications of this RJ45 connector include industrial automation, networking infrastructure, datacom installers, rugged outdoor enclosures, and extended network connections between multi-floor buildings or floors.

The connector is fully sealed and rated IP67 for dust-tight and water ingress protection with a protection cap. Constructed from high-quality ABS body material with copper alloy contacts plated with gold. Supports panel mount installation with a straight orientation receptacle connector.

Terminations are via screw type for secure cable connections. Operational temperature range from -20°C to +80°C ensures industrial usability. Shielded port to minimize electromagnetic interference and maintain signal integrity.

Compatible with category 5e Ethernet standards for reliable industrial network communication. This RJ45 connector is engineered for industrial, networking, manufacturing, commercial, and telecom applications where ruggedness and sealed protection are critical.
