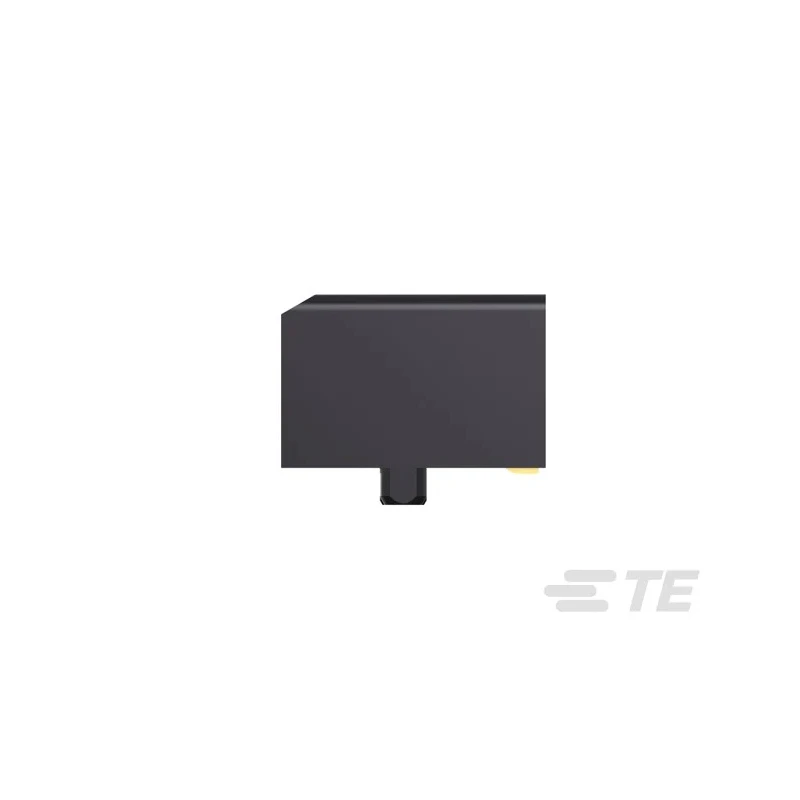

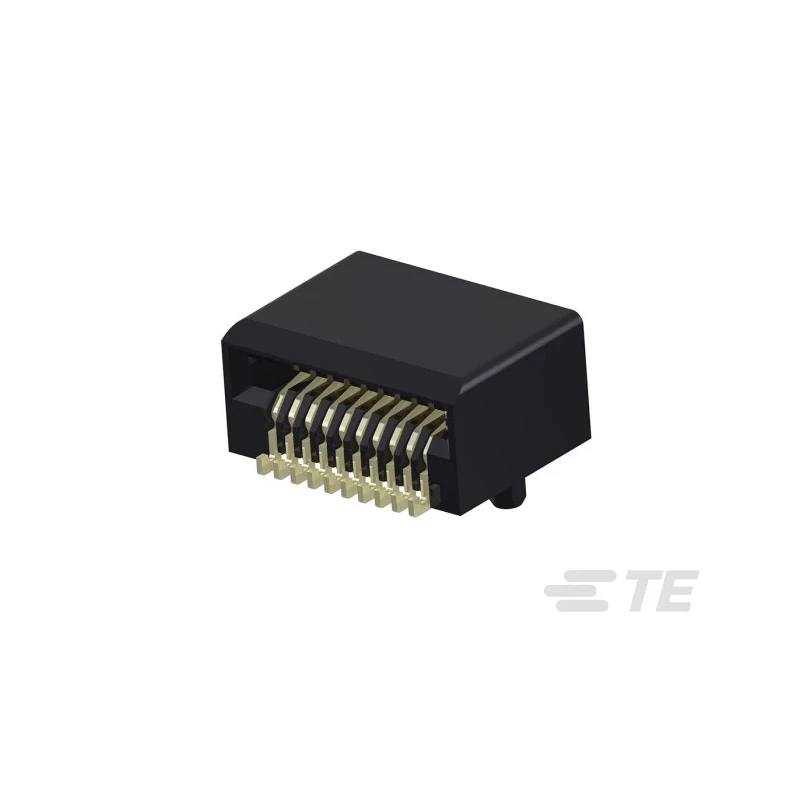

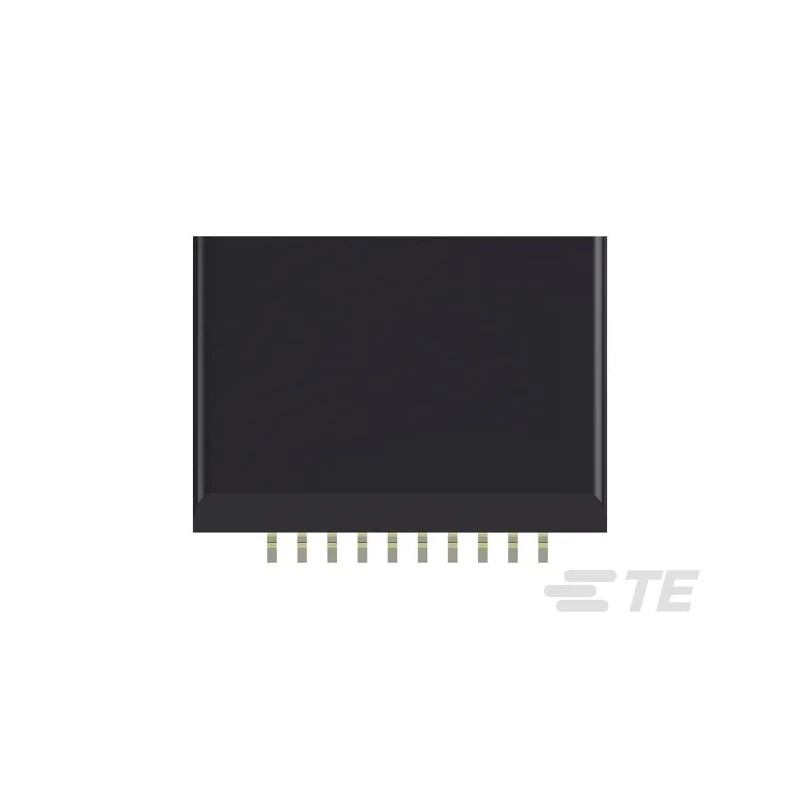

TE Connectivity Pluggable I/O Connector ZSFP+ Connector Female Solder 20-Position 2170088-1

TE Connectivity model 2170088-1 is a pluggable I/O connector specifically designed with a ZSFP+ form factor. This female solder connector has 20 positions and a right angle orientation, optimized for high-speed Ethernet and Fibre Channel applications. The connector features copper alloy contacts plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. Its thermoplastic housing provides mechanical stability and protection during operation and handling.

Designed to support data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, this connector is suitable for modern telecommunications infrastructure including cellular networks, central office uplink equipment, and optical transport systems. It is also widely used in data centers on switches, routers, and servers due to its compact size and stackable configurations. The connector’s design includes elastomeric gasket or spring finger options to reduce EMI and maintain signal integrity across demanding environments.

The connector assembly offers compatibility with single high 1xN cages as well as stacked assemblies in multiple port configurations, enabling increased port density and optimized PCB space usage. It maintains backwards compatibility by sharing the same mating interface and cage dimensions with the SFP+ connector, allowing for seamless upgrades and replacements.

Applications extend into medical diagnostic equipment and test and measurement instruments, where reliable high-speed data transfer is critical. The connector supports a current rating of 500 mA and is assembled from materials designed to meet the mechanical and electrical demands of industrial and commercial environments.

TE Connectivity 2170088-1 is manufactured in China and ships with new product condition. It is part of the ZSFP series connectors, providing a reliable solution for network and telecom connector requirements.

Supports data rates up to 28 Gbps NRZ and 56 Gbps PAM-4. Right angle, 20-position female solder connector. Gold over nickel plating on copper alloy contacts ensures durability. Thermoplastic housing provides structural integrity.

Compatible with single high 1xN cages and stacked assemblies. Backwards compatible with SFP+ connector mating interface. Applications in telecommunications, data centers, medical, and networking. Explore the range of Pluggable I/O Connectors from TE Connectivity and related products on EnvMart for industrial, communications, medical, and data center solutions.
