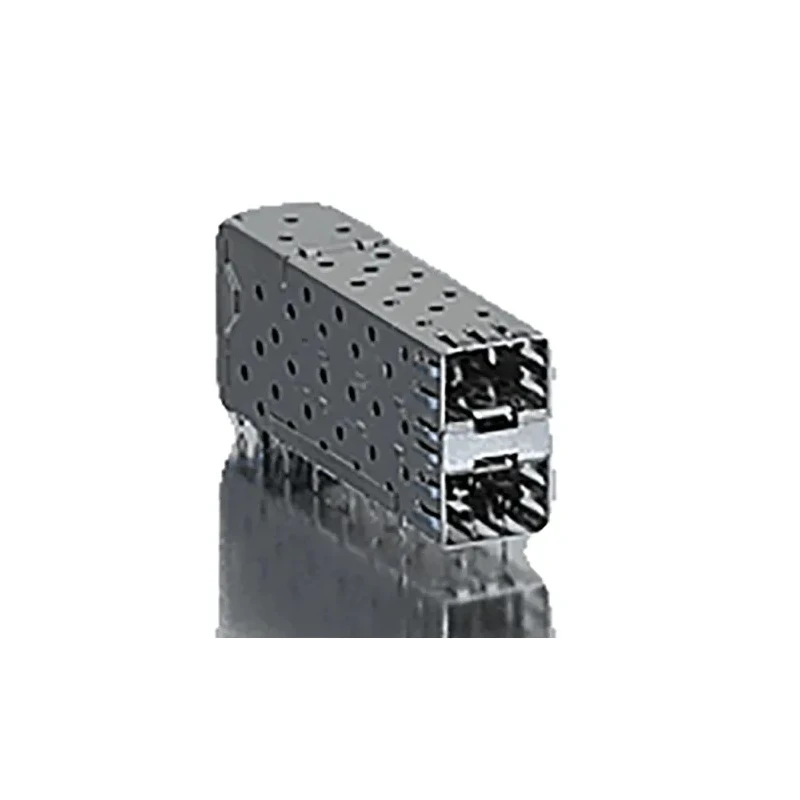

Molex Pluggable I/O Connector SFP Connector Female Solder 2 Port 40-Position 120V 500mA Glass Filled Liquid 75462-5001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 120V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Contact Material | Tin Brass |
| Series | 75462 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Sub Type | Connector |
| Form Factor | SFP |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Connector Gender | Female |
Key Features
- Compact Small Form-factor Pluggable (SFP) design suitable for space-efficient applications.
- Features 2 ports with right angle orientation for versatile PCB mounting.
- Supports current up to 500mA and voltage rating of 120V for safe electrical performance.
- Contacts made of tin brass with gold over nickel plating ensure excellent conductivity and corrosion resistance.
- Housing constructed from durable glass filled liquid crystal polymer for robust mechanical stability.
- Connector gender female with contact gender male configuration tailored for mating compatibility.
- Lead-free and RoHS compliant design suitable for environmentally conscious manufacturing.
- Manufactured in China with series identification 75462 ensuring product traceability.
Product Description
The Molex 75462-5001 is a pluggable I/O connector specifically designed for Small Form-factor Pluggable (SFP) applications requiring reliable and high-density port connections. It features a female solder termination with 2 ports and 40 contact positions arranged in a right angle orientation, ideal for printed circuit board (PCB) mounting in networking and telecom equipment.
Constructed with contact material of tin brass plated with gold over nickel, this connector ensures excellent electrical conductivity and long-term resistance against corrosion. The housing uses glass filled liquid crystal polymer, providing mechanical strength and thermal stability in demanding industrial environments.
Rated for 500mA current and 120V voltage, the connector maintains safe performance according to technical standards without additional approvals. This lead-free series 75462 connector accommodates male contact gender internally to mate with female connectors in modular systems.
Its compact, multi-port configuration allows designers to implement stacked SFP solutions with press-fit PC tails, enabling efficient space utilization in industrial electronics, telecommunications, data centers, and networking infrastructure.
Compact and efficient SFP form factor suited to modern network modules. Gold over nickel plating improves durability under repeated mating cycles. Right angle orientation facilitates organized PCB layouts and cable management.
Durable polymer housing supports high mechanical tolerances and thermal cycling. Two-port stacking enhances modular scalability in telecom hardware. Lead-free, environmentally compliant design supports global manufacturing standards.
Designed for industrial, networking, and telecom applications demanding robust interconnections.
For technical designs, the Molex 75462-5001 offers downloadable 3D models, schematics, and footprints to assist PCB and mechanical integration. This connector is a preferred choice for engineers seeking reliable multi-port SFP connectors backed by established industrial material quality and design flexibility.
Explore further Molex connectivity solutions under the Pluggable I/O Connectors category to find compatible components and enhance your system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 120V voltage and supports a current of up to 500mA.
It features a right angle orientation and is designed as a Small Form-factor Pluggable (SFP) connector.
This model has 2 ports and 40 contact positions.
The housing is made of glass filled liquid crystal polymer, while the contacts are made of tin brass with gold over nickel plating.
It uses a solder termination type for secure connections.
Yes, it is lead-free and RoHS compliant, making it suitable for environmentally conscious manufacturing.
This connector is manufactured in China.
It is designed for industrial, networking, and telecom applications that require robust interconnections.
The connector gender is female, and it is designed to mate with male contacts.
Yes, it provides downloadable 3D models, schematics, and footprints to assist with PCB and mechanical integration.
The right angle orientation facilitates organized PCB layouts and improves cable management.
This connector is identified as part of the 75462 series, ensuring product traceability.
