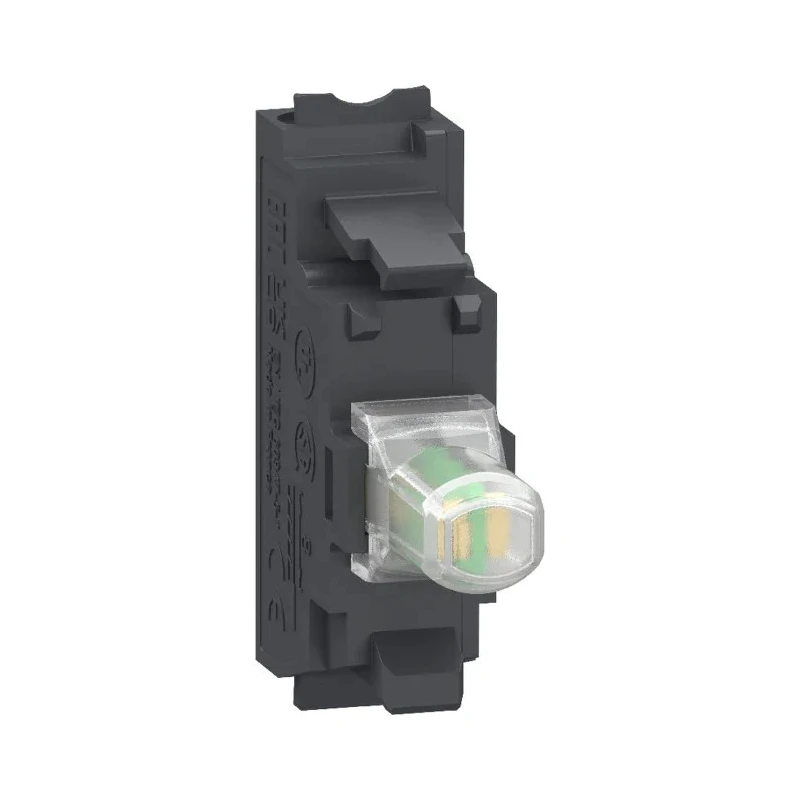

Schneider Electric Harmony XB Series Light Block 12V White LED Screw Clamp Terminal ZBVJ15
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 12V |
| Brand | Schneider Electric |
| Height | 56mm |
| Length | 54mm |
| Model | ZBVJ15 |
| Width | 44mm |
| Series | Harmony XB |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Illumination type | LED |
| Block Type | Light Block |
| Illumination Colour | White |
| Different wire sizes can be used | Minimum: 1x24AWG/0.2mm2 without cable end, maximum: 2x14AWG/1.5mm2 without cable end, 2x16AWG/1.5mm2 with cable ends |
| Schneider Electric Harmony XB Series Light Block, 12VBrand | Schneider Electric |
Key Features
- Compatible with Harmony XB series push button switchheads.
- Operates at 12V with white LED light for clear indication.
- Features screw clamp terminals supporting multiple wire sizes.
- Wide operating temperature range from -40°C to 70°C.
- Certified to standards including UL 508, JIS C8201, EN/IEC 60947 series, CSA C22.2 No 14.
- Body and fixing collar are not included with this block.
- Moulded holes allow easy testing with test probes.
- Designed to prevent clamping on wire insulation for secure wiring.
Product Description
Schneider Electric ZBVJ15 is a Harmony XB Series Light Block designed for use with push button switch assemblies, providing clear white LED illumination at 12V.
This LED light block integrates seamlessly with Harmony XB series switchheads, enabling integral illumination without the need for additional components. Featuring screw clamp terminals, it supports a flexible range of wire sizes, including stranded and solid wires with or without cable ends.
The device operates reliably within a broad temperature range from -40°C up to 70°C, making it suitable for industrial, manufacturing, automation, and electrical control panel applications. Its compact size (54mm length, 56mm height, 44mm width) facilitates easy installation in confined spaces.
Certified to meet stringent international standards such as UL 508, JIS C8201-5-1, EN/IEC 60947 series, and CSA C22.2 No 14, the light block ensures compliance with safety and performance regulations in global markets.
Additional design features include a single lever action that opens both cable clamps simultaneously, molded holes for test probes to verify connectivity, and a construction that prevents clamping on wire insulation, enhancing connection security.
The package does not include the body or fixing collar, and it is intended to be combined with appropriate switch heads for a complete assembly. Compatible with Harmony XB series push button switchheads. Operates at 12V with white LED light for clear indication.
Features screw clamp terminals supporting multiple wire sizes. Wide operating temperature range from -40°C to 70°C. Compact dimensions: 54mm length, 56mm height, 44mm width. Certified to standards including UL 508, JIS C8201, EN/IEC 60947 series, CSA C22.2 No 14.
Body and fixing collar are not included with this block. Moulded holes allow easy testing with test probes. Designed to prevent clamping on wire insulation for secure wiring. Accepts stranded or solid wires without or with cable ends within specified AWG ranges.
This light block is ideal for use in industrial automation, electrical control panels, manufacturing processes, and other commercial electrical applications requiring reliable push button illumination.
Explore more from Schneider Electric and find additional lighting components and push button accessories at EnvMart.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 12V.
It features LED illumination with a white light color.
The dimensions are 54mm in length, 56mm in height, and 44mm in width.
It operates within a temperature range of -40°C to 70°C.
It utilizes screw clamp terminals that support multiple wire sizes.
It can accept a minimum of 1x24AWG/0.2mm² without cable ends and a maximum of 2x14AWG/1.5mm² without cable ends, or 2x16AWG/1.5mm² with cable ends.
It is certified to UL 508, JIS C8201, EN/IEC 60947 series, and CSA C22.2 No 14 standards.
No, the body and fixing collar are not included with this block.
It is ideal for use in industrial automation, electrical control panels, and manufacturing processes.
The design prevents clamping on wire insulation, which enhances connection security.
Yes, it features molded holes that allow for easy testing with test probes.
It is compatible with Harmony XB series push button switchheads.
