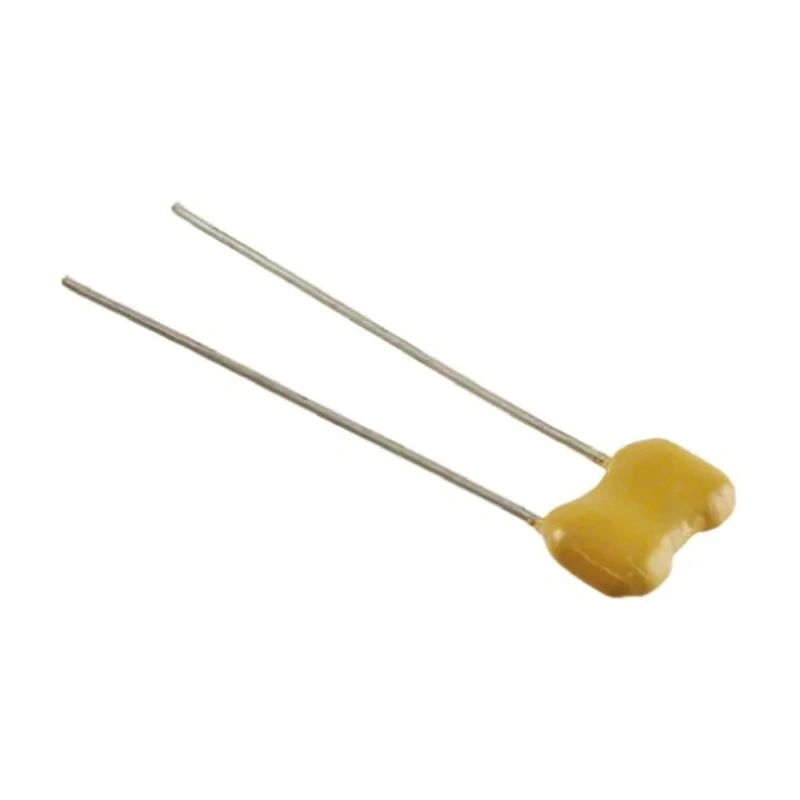

Cornell-Dubilier CD15ED470JO3F 47 pF Flat Radial Mica Capacitor 500V DC ±5% Tolerance CD15 Series

Cornell-Dubilier CD15ED470JO3F is a 47 pF Flat Radial Mica Capacitor from the CD15 series, featuring a 500V DC voltage rating with ±5% tolerance. This capacitor offers high stability and low loss performance, making it ideal for timing circuits and RF tuned applications in industrial, laboratory, and communications equipment.

The capacitor uses a mica dielectric encased in a flame retardant epoxy resin. Its radial terminal type and through-hole mount allow easy and secure integration into printed circuit boards. Withstanding operating temperatures from -55°C to 125°C, it is suitable for demanding environments.

The CD15 series professional capacitors are known for their high temperature capability, non-flammable construction, and exceptional reliability. The epoxy-coated resin dip enhances pulse performance and supports RF applications.

Its lead pitch of 5.9mm and compact flat form factor with dimensions 11.4mm length, 9.1mm height, and 4.3mm width help in densely packed circuit designs. Being RoHS compliant adds value for eco-conscious manufacturing.

This capacitor is commonly used in electronics manufacturing for high precision timing, filtering, and pulse circuits in consumer, industrial, and communication systems. High stability and excellent ±5% capacitance tolerance for precision circuits.

500V DC rated voltage supports high-voltage applications. Radial, through-hole mounting provides ease of assembly. Non-flammable epoxy case material enhances safety and durability. Wide operating temperature range (-55°C to 125°C) ensures reliable performance.

Lead pitch of 5.9 mm for compatibility with standard PCBs. Flat construction suitable for compact designs. RoHS compliant for environmental safety. Packaged on reel for automated assembly processes. Explore a wide range of Mica Capacitors and other electronic components at EnvMart for your industrial, electronic, and PCB assembly needs.
