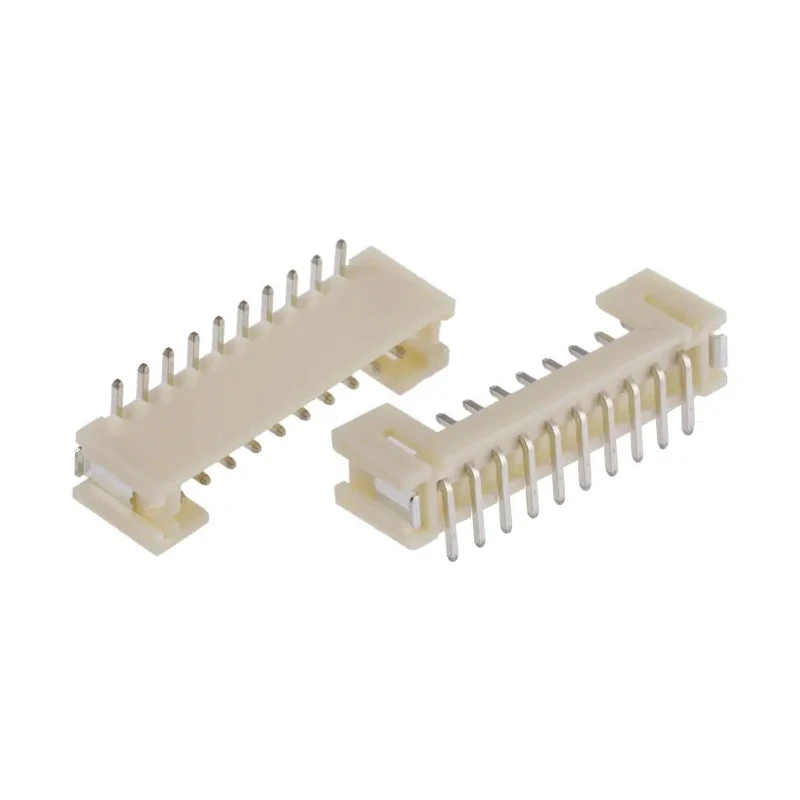

JST PH Series Straight Surface PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded B10B-PH-SM4-TB(LF)(SN)

The JST B10B-PH-SM4-TB(LF)(SN) is a PH Series Straight Surface PCB Header designed to provide a compact, high-density wire-to-board connection for printed circuit boards. This connector features 10 male contacts arranged in a single straight row with a 2 mm pitch, offering a low insertion force and reliable electrical contact for a variety of applications. The header is fully shrouded to enhance connector durability and protection against mechanical damage.

This PCB header has a current rating of 2 A and an operating voltage of up to 100 V AC, suitable for low-power electronic circuits. The housing is made of polyamide for durability and thermal resistance, while the contacts are made of copper alloy with tin plating for corrosion resistance and optimal conductivity.

Designed for surface mount technology (SMT), it features solder termination suitable for automated PCB assembly processes. The connector system supports wire sizes from 32 AWG to 24 AWG, offering broad compatibility in wiring. Its operating temperature range from -25°C to 85°C makes it adaptable to diverse environmental conditions encountered in industrial, manufacturing, electronics assembly, and laboratory settings.

The JST PH Series PCB Header also includes a PCB retention mechanism ensuring secure mounting during and after soldering, enhancing long-term reliability. The single row and 10-pin count support various signal or power distribution needs in compact PCB design architectures.

Compact and reliable header designed for internal wire connection to PCBs. Features a current rating of 2 A and a voltage rating of 100 V AC. Constructed with polyamide housing and copper alloy contacts plated with tin. Shrouded, straight orientation with solder termination for surface mount applications.

Operates within temperature range of -25°C to 85°C for versatile environments. Supports wire sizes from 32 AWG to 24 AWG for flexible wiring options. Includes 10 male contacts arranged in a single row with 2 mm row pitch.

Provides a robust PCB retention mechanism to ensure secure mounting. Suitable for diverse industrial, electronic, and manufacturing applications. Explore JST connectors and PCB components in EnvMart for reliable high-density electrical interconnect solutions for industrial and electronic applications.
