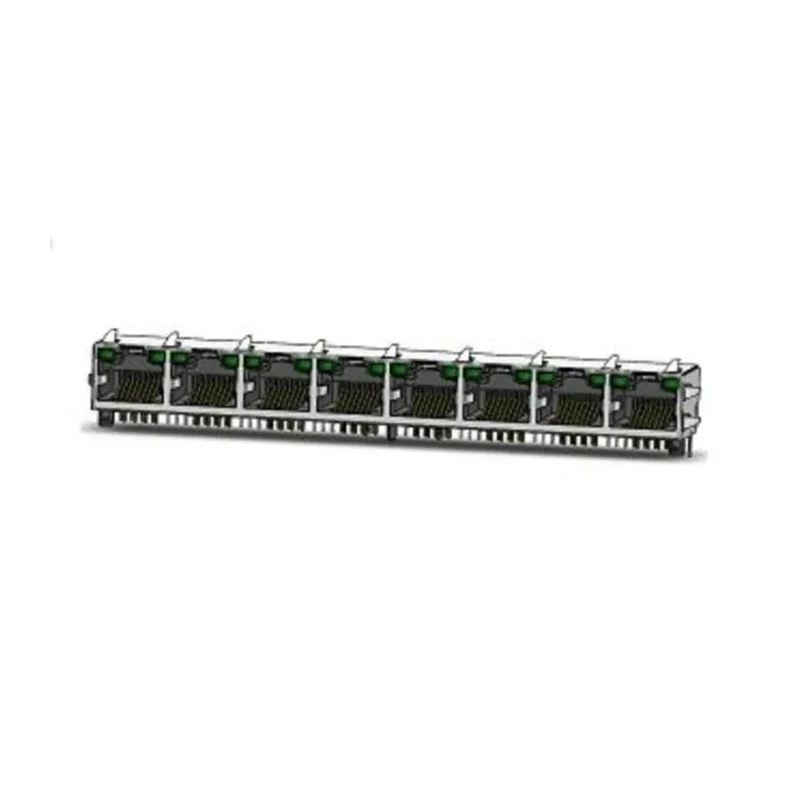

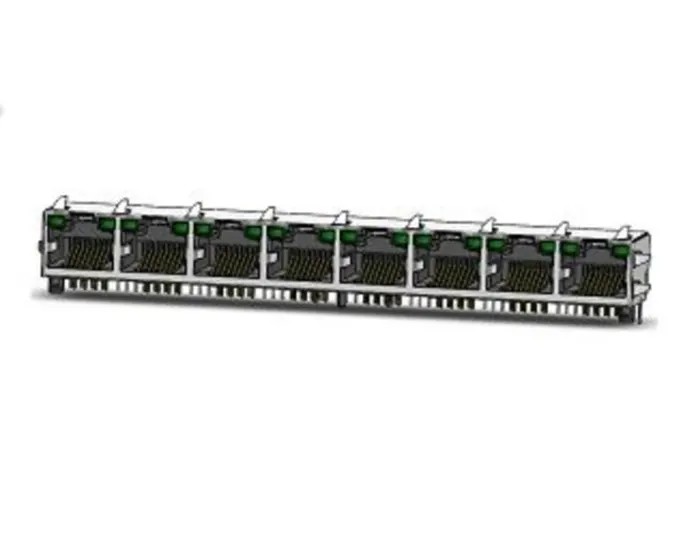

Amphenol Communications Solutions RJ45 Connector Female PCB Unshielded Right Angle 8 Port 8 Way RJE39

Amphenol Communications Solutions RJE39 RJ45 Connector Female PCB Unshielded Right Angle 8 Port 8 Way is a modular jack Ethernet connector designed for mounting on printed circuit boards. It enables high-density networking with 8 ports integrated into one compact right-angle jack assembly. The connector uses phosphor bronze contacts plated with gold over nickel to provide excellent conductivity and resistance to wear and corrosion.

This unshielded connector offers reliable Ethernet performance with an IP20 rating suitable for protected indoor environments. The solder termination ensures stable and robust electrical connection on PCB assemblies. Operating temperatures from -40°C to +85°C make it adaptable to a wide range of industrial and commercial applications including network switches, routers, communication devices, and other electronic equipment.

It complies with RoHS standards, supporting environmental safety by limiting hazardous substances. The modular jack lacks LEDs or light pipes, focusing on fundamental connectivity without additional network activity indicators.

The right-angle design saves space on the circuit board, facilitating compact and efficient layout design. This series provides superior EMI performance beneficial in sensitive electronic and communication applications.

Overall, this Amphenol RJE39 series connector is ideal for manufacturers and designers requiring reliable 8-port RJ45 connectivity solutions with PCB mount installation in demanding industrial and electronics environments.

This RJ45 connector supports 8 ports in a single unit for flexible network configurations. Designed for PCB mounting with solder termination ensuring secure installation. Unshielded modular jack with right-angle orientation for space-efficient circuit board layout.

Contact material uses phosphor bronze with gold over nickel plating for enhanced durability and signal quality. Operating temperature range from -40°C to 85°C allows for versatile environmental applications. Meets RoHS standards ensuring compliance with hazardous substance restrictions.

Rated IP20 for protection against solid objects larger than 12.5mm. Absence of LEDs and light pipes maintains simple modular design without additional indicators. Ideal for industrial, electronic, and communication equipment requiring multiple Ethernet connections.

Compact and robust design maximizes PCB space utilization and EMI performance. Explore more Ethernet Connectors and related industrial components at EnvMart for advanced design and manufacturing solutions.
