Bulgin Buccaneer Series Shielded Right Angle RJ45 Ethernet Connector Female, Through Hole, Cat5e, 1 Port 8 Way PX0839/90

Free Delivery in India | Lowest Global Shipping Charges

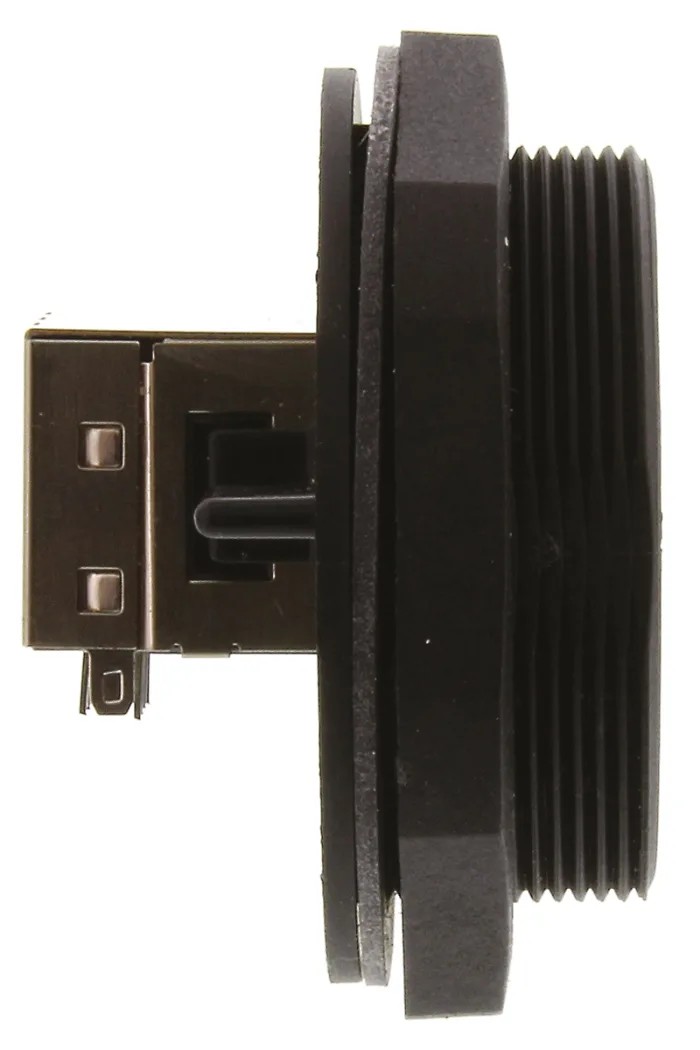

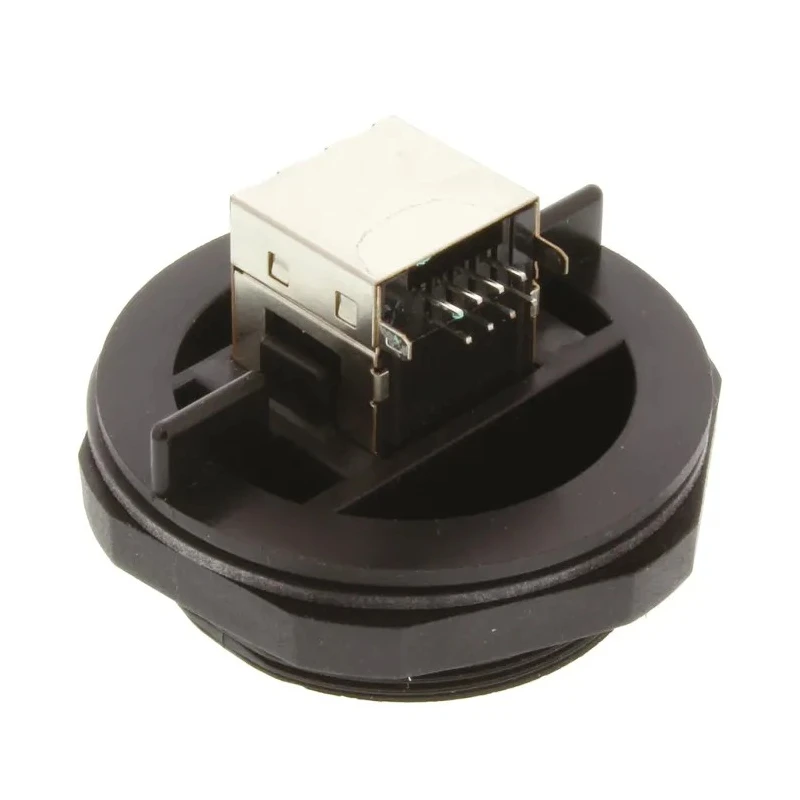

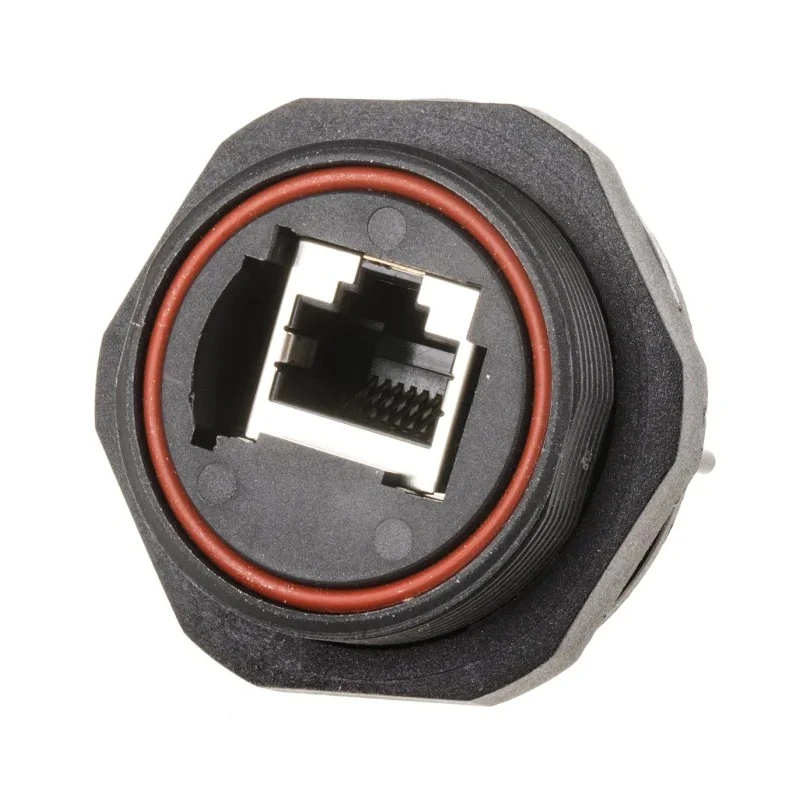

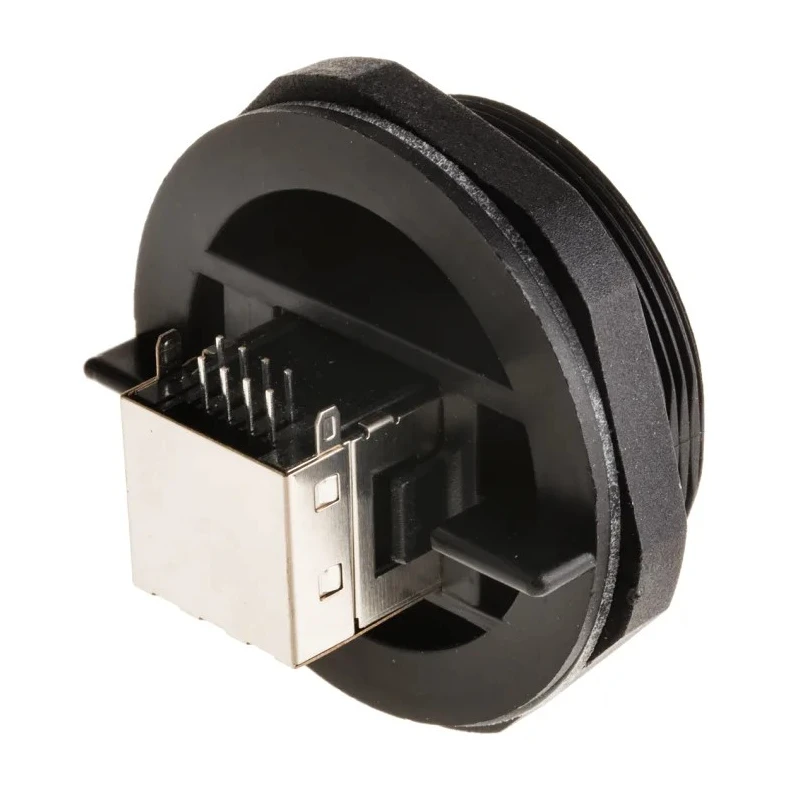

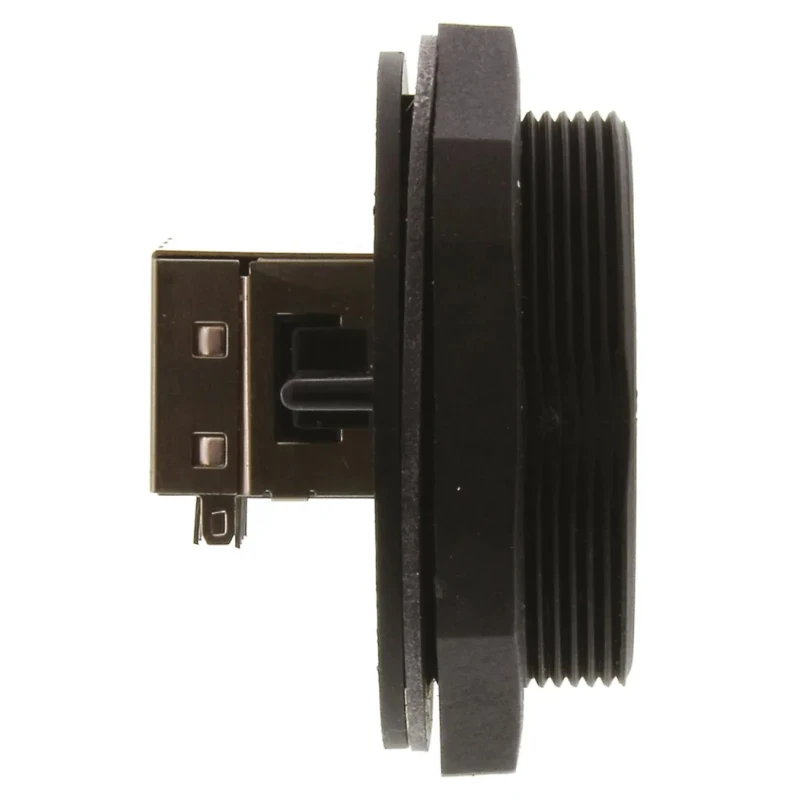

Bulgin Buccaneer Series Shielded Right Angle RJ45 Ethernet Connector Female, Through Hole, Cat5e, 1 Port 8 Way PX0839/90

Name: Bulgin Buccaneer Series Shielded Right Angle RJ45 Ethernet Connector Female, Through Hole, Cat5e, 1 Port 8 Way PX0839/90
Brand: Bulgin
SKU: 202389
Price: 22.63 USD
Availability: InStock



Category Ethernet Connector Brand Bulgin Condition New

Specifications

Country of Origin	Tunisia
Brand	Bulgin
Orientation	Right Angle
Model	PX0839/90
Depth	45mm
IP Rating	IP69K, IP68
Connector Type	Ethernet
Number Of Ways	8
Width	38.1mm
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	Buccaneer
Number Of Ports	1
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Shield Type	Shielded
Contact Plating	Gold
Connector Gender	Female
LAN Category	Cat5e
Ethernet Connector Type	RJ45

Key Features

Shielded design ensures enhanced signal integrity for demanding environments.
Right angle orientation with through-hole mounting suits horizontal PCB installations.
Gold-plated phosphor bronze contacts provide durability and excellent conductivity.
IP68 and IP69K ratings deliver superior water and dust resistance when mated.
Operates reliably between -20°C and 70°C temperature range.
Compact dimensions of 38.1mm width and 45mm depth for space-efficient mounting.
Supports a maximum current of 1.5A and voltage up to 42V.
Supplied with a panel sealing gasket to maintain IP ratings in harsh conditions.

Product Description

Bulgin PX0839/90 Buccaneer Series shielded right angle RJ45 Ethernet Connector features a female, through-hole design suitable for Cat5e network applications. It supports one port with eight ways, providing secure and reliable circular data connectivity in challenging industrial and automation environments.

The connector's high-quality construction includes gold plating on phosphor bronze contacts, enhancing conductivity, reliability, and durability over extended use. Its shielded design improves signal integrity, preventing electromagnetic interference and ensuring high-quality Ethernet communications.

This connector is designed for direct horizontal PCB mounting via 90-degree pins, enabling efficient use of board space. Measuring 38.1mm wide and 45mm deep, it is compact yet robust, supplied with a panel sealing gasket to ensure environmental protection.

Rated to IP68 and IP69K standards, it offers exceptional protection against dust ingress and high-pressure water jets, making it ideal for harsh industrial, electronic, and automation applications that demand reliable data connections under adverse conditions.

Shielded design provides superior signal integrity in industrial settings. Right angle, through-hole mounting supports space-saving PCB configurations. Gold-plated phosphor bronze contacts ensure long-lasting electrical performance.

IP68 and IP69K compliance guarantees resistance to water and dust ingress. Operational temperature range of -20°C to 70°C suits a wide range of environments. Includes panel sealing gasket to maintain environmental ratings when mated.

Supports current up to 1.5A and voltage up to 42V for versatile electronic use.

This connector is ideal for networking equipment in harsh environments, electronic devices requiring robust data connections, and any industrial or automation system needing dependable, environmentally protected Ethernet interfaces.

Explore the extensive range of Bulgin connectors on EnvMart for dependable and high-quality electronic components that meet industrial standards and performance requirements.
