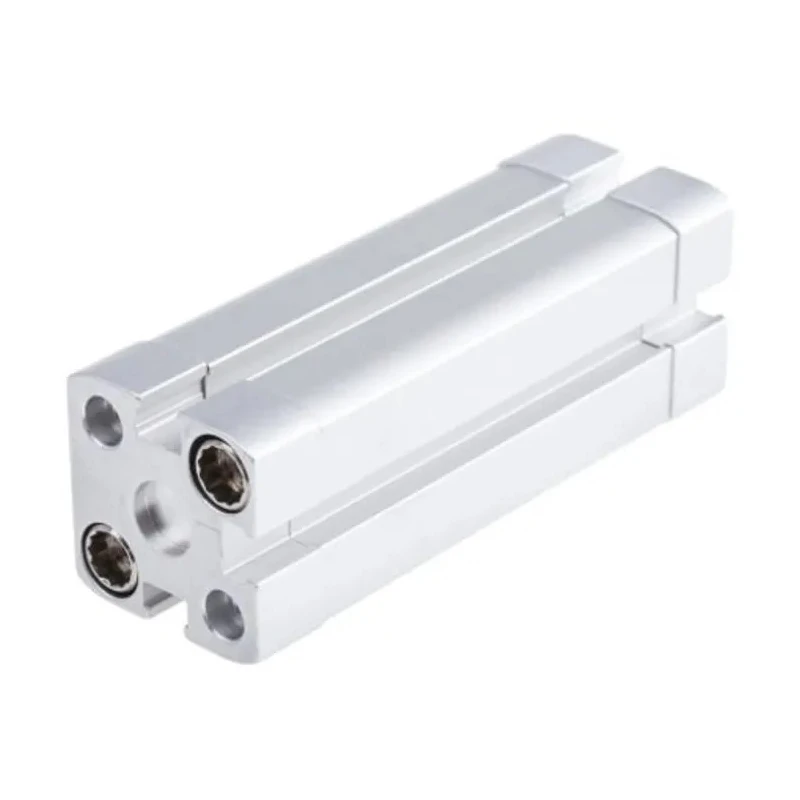

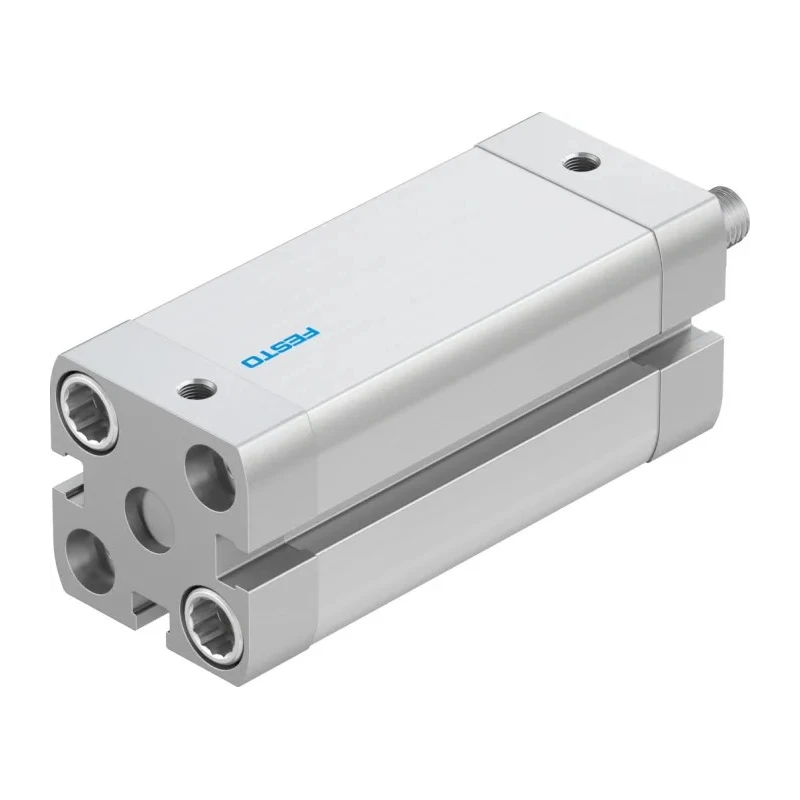

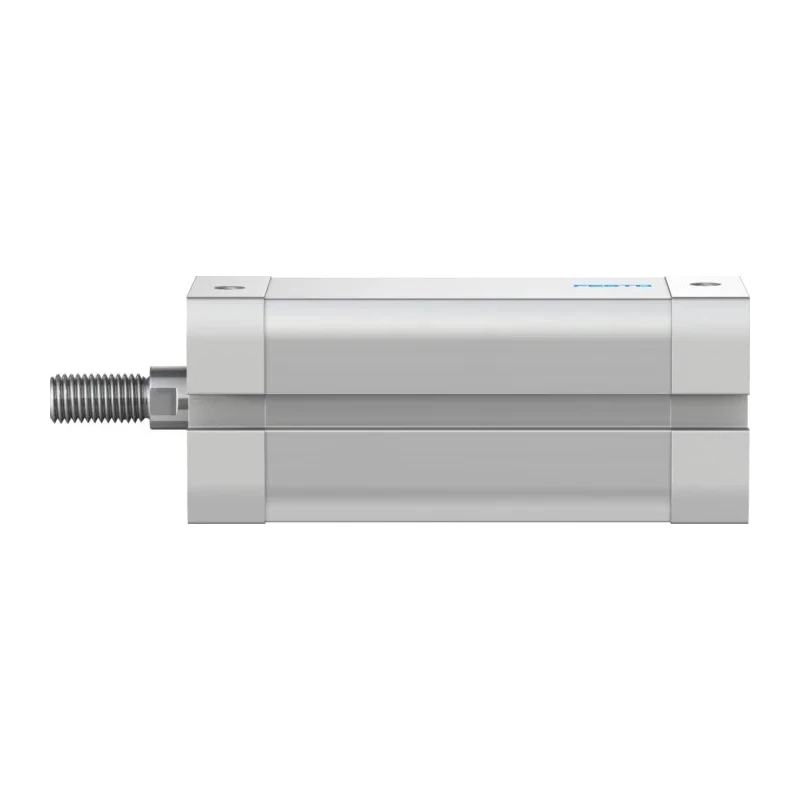

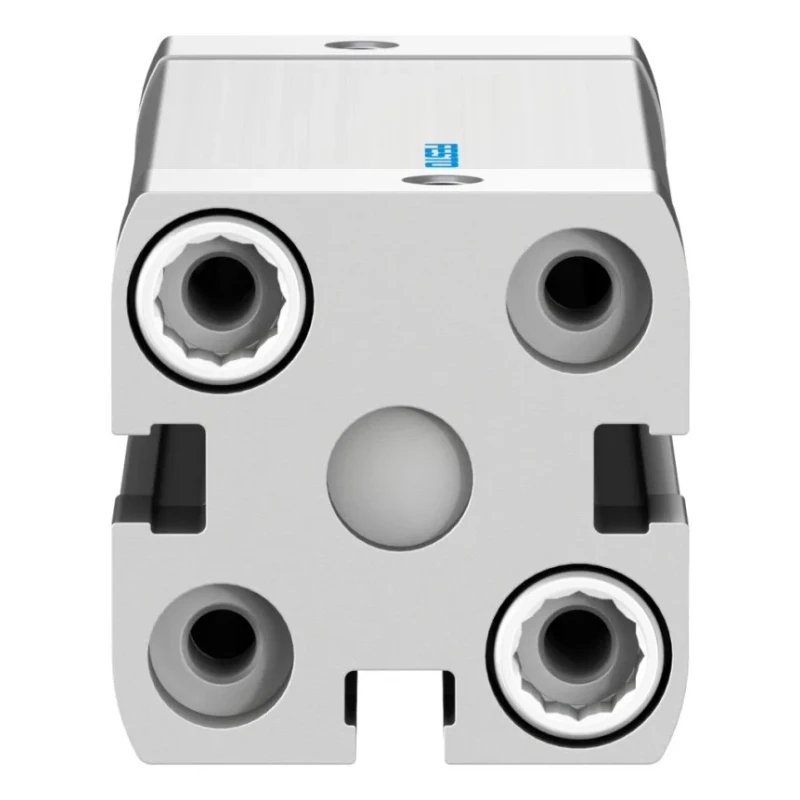

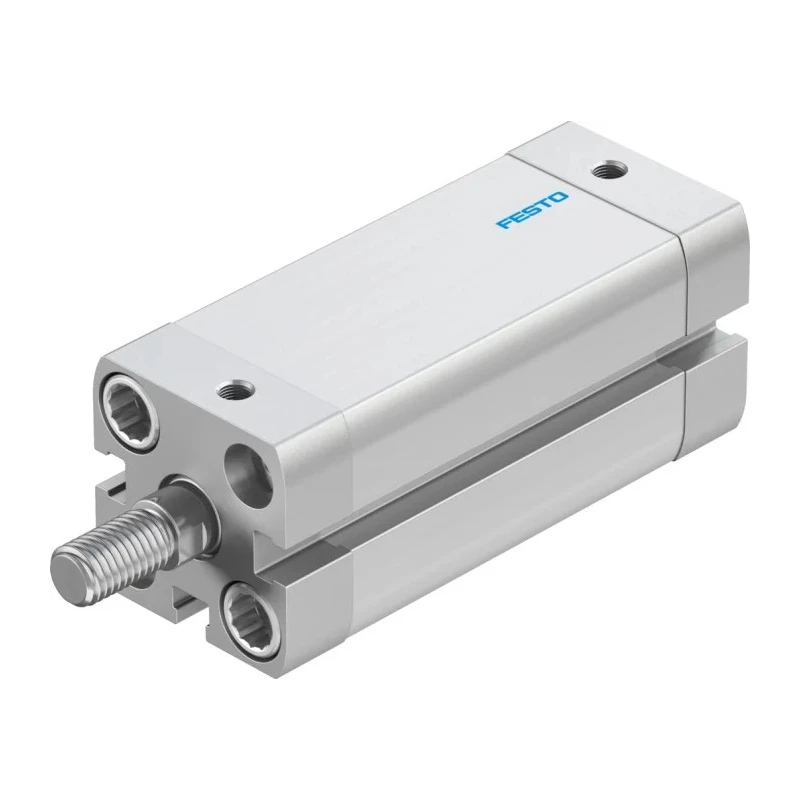

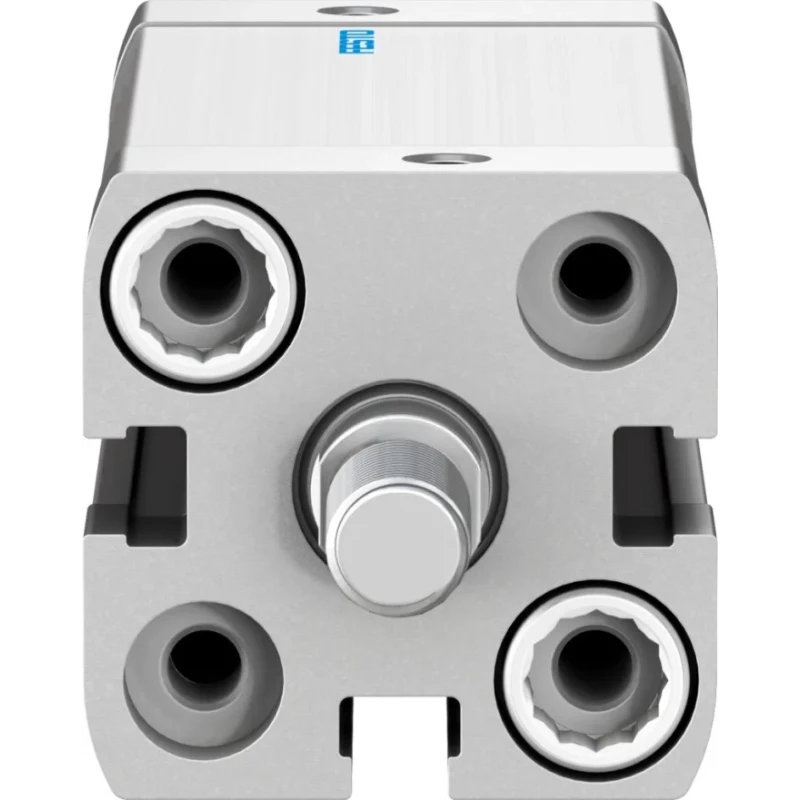

Festo Pneumatic Cylinder 20mm Bore, 50mm Stroke, Double Acting, ADN Series Aluminium Body ADN-20-50-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 35.5mm |
| Length | 92.5mm |
| Model | ADN-20-50-A-P-A |
| Width | 35.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 50mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Designed for double acting pneumatic operation, offering controlled linear movement.
- 20mm bore diameter and 50mm stroke length for precise actuation requirements.
- Constructed with a lightweight, corrosion-resistant aluminium body.
- Air cushioning and cushioning rings for reduced operational shock and smoother performance.
- M5 pneumatic connections allow for simple integration into machinery.
- Complies with ISO 21287 for installation versatility and system compatibility.
- Capable of operating across a wide pressure and temperature range (maximum 10 bar, -20°C to 80°C).
- Male piston rod with M5 thread for secure mechanical attachment.
Product Description
The Festo ADN-20-50-A-P-A Pneumatic Cylinder is engineered to deliver efficient linear actuation in demanding industrial environments. Featuring a 20mm bore and 50mm stroke, it is optimized for automation systems requiring reliable performance and precise movement. The double acting construction enables bi-directional operation through compressed air, making it ideal for a variety of production line and robotic applications.
The cylinder is built using a high-quality aluminium body, ensuring both strength and light weight for easy machine integration. Its compact size and robust form factor allow it to fit where space is limited while maintaining durability across many cycles. The integrated air cushioning and cushioning rings minimize shock at stroke endpoints, enhancing operational smoothness and reducing wear.
Pneumatic connections use standardized M5 threads, simplifying installation with common fittings. The male piston rod is also threaded M5 for secure linkage to mechanical components. The ADN series complies with ISO 21287, providing broad compatibility with industry mounting standards and facilitating upgrades or replacements in existing systems.
This cylinder delivers consistent force output, calculated based on applied air pressure and bore size, making it suitable for automation, robotics, handling, and packaging equipment. Operating limits are up to 10 bar and temperatures from -20°C to 80°C, supporting a wide range of environments from cold storage to warm manufacturing zones.
Typical industrial use cases include deployment in automated production lines, robotic movement, packaging conveyors, and machinery where compact, dependable pneumatic actuators are required. Its construction quality and standardized mounting features make it a preferred choice in manufacturing, laboratory automation, and commercial machinery sectors.
Browse more Festo ADN Series Pneumatic Cylinders and Actuators in EnvMart's Hydraulic & Pneumatic Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic cylinder is 20mm.
This model has a stroke length of 50mm.
The maximum operating pressure is 10 bar.
It can operate within a temperature range of -20°C to 80°C.
This model features a double acting action type, allowing for bi-directional operation.
The dimensions are 92.5mm in length, 35.5mm in height, and 35.5mm in width.
It features air cushioning and cushioning rings to minimize shock during operation.
The mounting type for this model is through hole.
The body of this cylinder is constructed from aluminium.
This model complies with ISO 21287 and RoHS standards.
It uses M5 threaded pneumatic connections for easy integration into machinery.
The piston rod is male with an M5 thread size.
