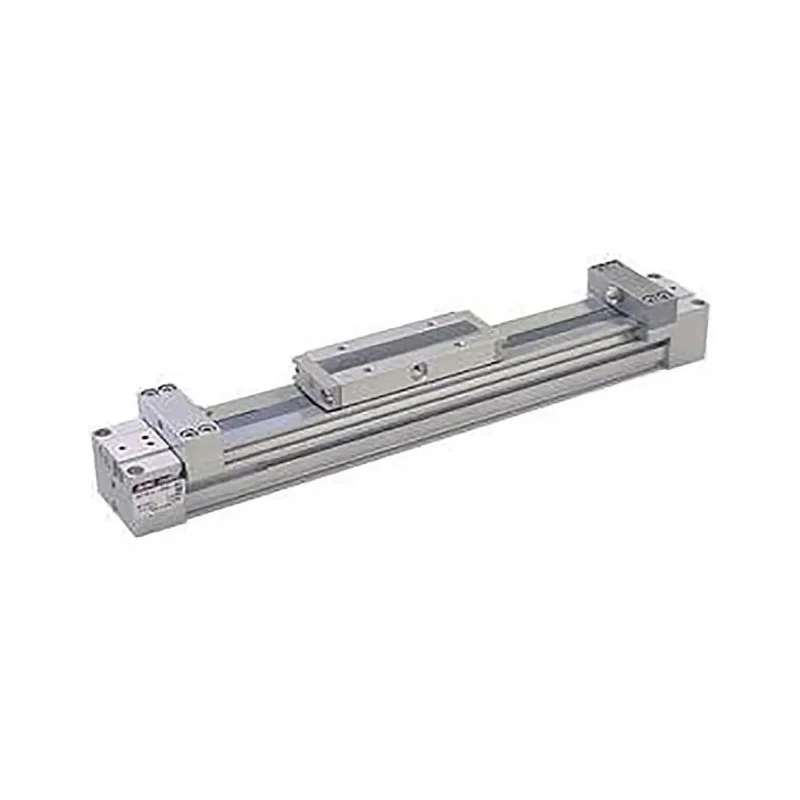

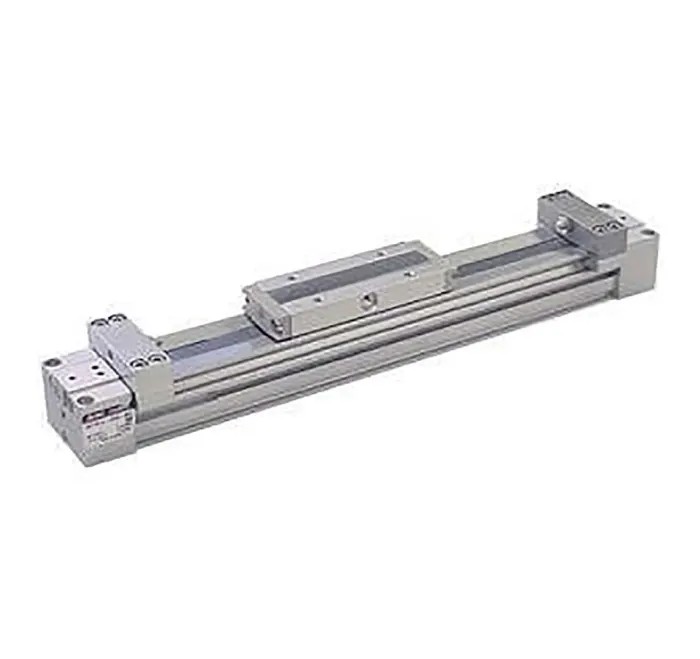

SMC Double Acting Rodless Pneumatic Cylinder 20mm Bore 550mm Horizontal Mount MY1B20G-550
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.8 Mpa |
| Height | 46mm |
| Length | 200mm |
| Model | MY1B20G-550 |
| Gross Weight | 1.1kg |
| Width | 45mm |
| Series | MY1B |
| Maximum Operating Temperature | 60°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | 5°C |
| Stroke Length | 550mm |
| Bore Diameter | 20mm |
| Action Type | Double Acting |
| Standards/Approvals | IEC |
| Connection Thread Standard | Metric |
| Cushioning Type | Air Cushion |
| Guide Type | Basic |
| Port Gender | Female |
| Bore sizes | 16, 20, 50, 63, 80, 100 (mm) |
| Port Thread Size | M5 x 0.8 |
Key Features
- Features a double acting rodless design for efficient linear motion.
- Offers a 20mm bore diameter and 550mm stroke length for extended reach.
- Horizontal mounting orientation with metric standard thread connections.
- Operates at a maximum pressure of 0.8 Mpa for robust industrial performance.
- Lightweight at 1.1 kg; easy to integrate in automation setups.
Product Description
SMC MY1B20G-550 Double Acting Rodless Pneumatic Cylinder is designed for precision industrial automation tasks, offering a robust and reliable pneumatic solution with a 20mm bore and a 550mm stroke. The double acting configuration provides versatile linear motion, ideal for processes requiring repeated, accurate positioning in manufacturing, laboratory, or automated line environments.
With a horizontal mounting orientation and metric thread standard connections, the cylinder supports easy integration into a wide variety of pneumatic systems. Air cushioning technology ensures soft end-of-stroke deceleration, reducing wear and enhancing operational durability.
The product accepts maximum operating pressures up to 0.8 Mpa, making it suitable for demanding industrial applications. Its minimum operating temperature is 5°C and maximum is 60°C, enabling use across a broad range of ambient conditions.
The MY1B20G-550 incorporates a basic guide type for high-repeatability motion, supporting applications such as transport, pick-and-place, material handling, and assembly operations. A female port thread of M5 x 0.8 offers compatibility with standard pneumatic hoses and fittings, improving installation ease.
Dimensions are compact, measuring 200mm in overall length, 46mm in height, and 45mm in width, while weighing just 1.1 kg for effortless incorporation into space-constrained automation lines. The IEC standard approval guarantees compliance with recognized industrial performance benchmarks.
This cylinder is part of the MY1B Series, which accommodates bore sizes ranging from 16mm to 100mm and stroke lengths up to 2000mm, ensuring compatibility across multiple applications. Optional stroke adjusters and shock absorbers are available to fine-tune operational control and response.
Typical uses include industrial automation, laboratory pneumatic setups, manufacturing assembly lines, conveyor systems, material transfer, and process control. Its double acting function allows both extension and retraction under pneumatic power for maximum application versatility.
Browse other SMC Pneumatic Cylinders in the EnvMart Hydraulic & Pneumatic Tools category for tailored automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for the SMC MY1B20G-550 is 0.8 MPa.
This model has an overall length of 200mm, a height of 46mm, and a width of 45mm.
The stroke length of the MY1B20G-550 is 550mm.
The bore diameter of this cylinder is 20mm.
The minimum operating temperature is 5°C, and the maximum operating temperature is 60°C.
This model features air cushioning technology, which ensures soft end-of-stroke deceleration to reduce wear and enhance operational durability.
The SMC MY1B20G-550 has a horizontal mounting orientation.
It uses a female port thread of M5 x 0.8, compatible with standard pneumatic hoses and fittings.
This cylinder is suitable for applications such as transport, pick-and-place, material handling, and assembly operations.
The MY1B20G-550 is part of the MY1B Series, which accommodates various bore sizes and stroke lengths.
The weight of this unit is 1.1 kg, making it lightweight and easy to integrate into automation setups.
It incorporates a basic guide type, which supports high-repeatability motion.
