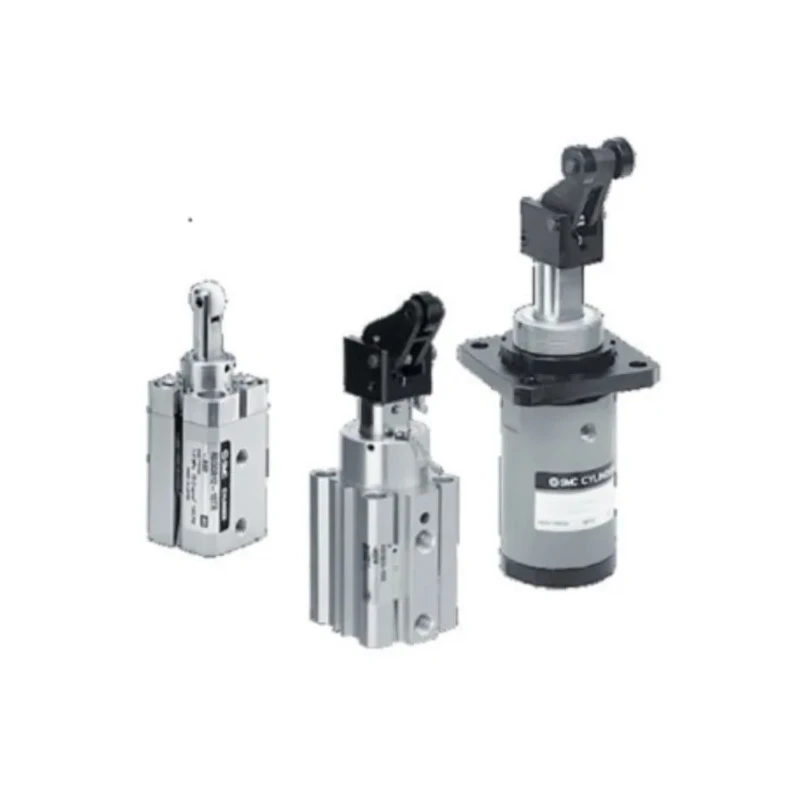

SMC Pneumatic Compact Cylinder 20mm Bore, 20mm Stroke, Double Acting, Aluminium Alloy, RSDQ Series RSDQB20TF-20DZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 107mm |
| Length | 36mm |
| Model | RSDQB20TF-20DZ |
| Gross Weight | 240g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | RSDQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber |
| Maximum Piston Speed | 500 mm/s |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Stroke range | 10mm to 30mm |
| Bore sizes | 12mm to 50mm |
Key Features
- Compact pneumatic cylinder with 20mm bore and 20mm stroke, ideal for space-limited applications.
- Double acting mechanism enhances operational versatility and control.
- Aluminium alloy body ensures corrosion resistance and durability.
- Through hole mount and single female piston rod configuration for easy integration.
- Rubber cushioning minimizes impact during operation and extends cylinder life.
- Maximum operating pressure up to 1 MPa to support demanding pneumatic cycles.
- Suitable for ambient temperatures from -10°C to 60°C for reliable operation in varied environments.
- Metric rod thread standard allows compatibility with standard fittings.
Product Description
SMC RSDQB20TF-20DZ Pneumatic Compact Cylinder is engineered as part of the RSDQ Series, offering a compact, high-performance solution for pneumatic systems requiring precise actuation within limited space. Its 20mm bore and 20mm stroke provide reliable force output and controlled movement in automation setups, manufacturing lines, and material handling systems.
Designed for double acting operation, this cylinder delivers force in both extension and retraction strokes, providing versatile applications in industrial and laboratory environments. The through hole mounting design ensures easy installation, while the single female piston rod facilitates straightforward connection with mechanical linkages or actuators.
The cylinder body is constructed from high-quality aluminium alloy, providing resistance to corrosion and ensuring a long service life even in challenging environments. Rubber cushioning absorbs shocks at the stroke end, minimizing wear and noise, thereby improving operational stability and extending the cylinder's lifespan.
The maximum operating pressure of 1 MPa makes this cylinder suitable for robust pneumatic cycles, while the broad temperature range from -10°C to 60°C ensures reliability in varying climates. The metric piston rod thread standard supports easy integration with standard pneumatic fittings and actuators.
Weighing only 240g, the cylinder supports lightweight system designs without sacrificing performance. RoHS compliance reflects adherence to international safety and environmental standards. The fixed-height stopper cylinder design in RSDQ Series is recognized for endurance and low breakaway characteristics.
Industrial applications include conveyor lines, packaging machinery, pick-and-place robots, and automation platforms in manufacturing, laboratory, and commercial settings. Suitable for use wherever precise, repeatable pneumatic actuation is essential and where compact size permits efficient spacing and ergonomic system layouts.
Explore EnvMart for SMC Pneumatic Cylinders and other advanced pneumatic system components to optimize your automation and fluid power projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 20mm.
This cylinder has a stroke length of 20mm.
The maximum operating pressure is 1 MPa.
The body of this cylinder is made from aluminium alloy, which provides corrosion resistance.
It operates effectively in ambient temperatures ranging from -10°C to 60°C.
This model features a double acting mechanism, allowing for force in both extension and retraction strokes.
The gross weight of this cylinder is 240g.
It features a through hole mount design for easy installation.
This cylinder is equipped with rubber cushioning to minimize impact during operation.
The maximum piston speed is 500 mm/s.
The piston rod uses a metric thread standard, allowing compatibility with standard fittings.
It is suitable for applications in conveyor lines, packaging machinery, and pick-and-place robots, among others.
