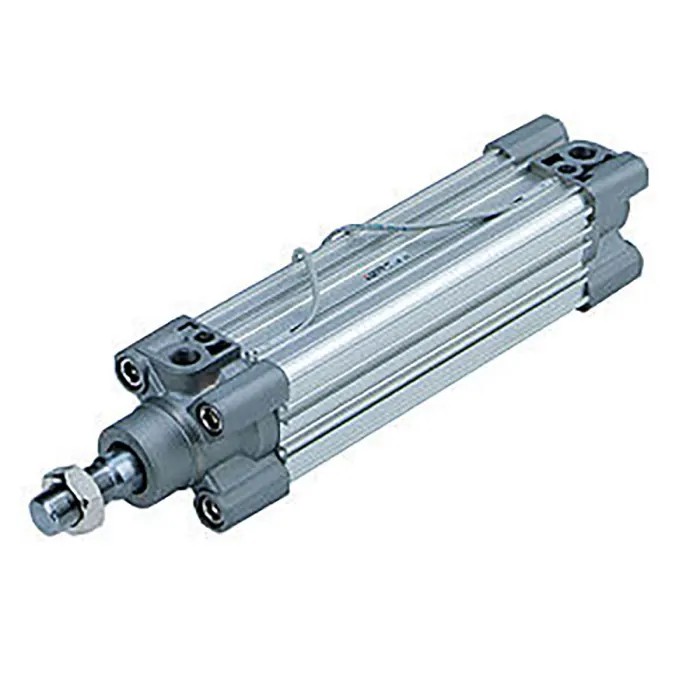

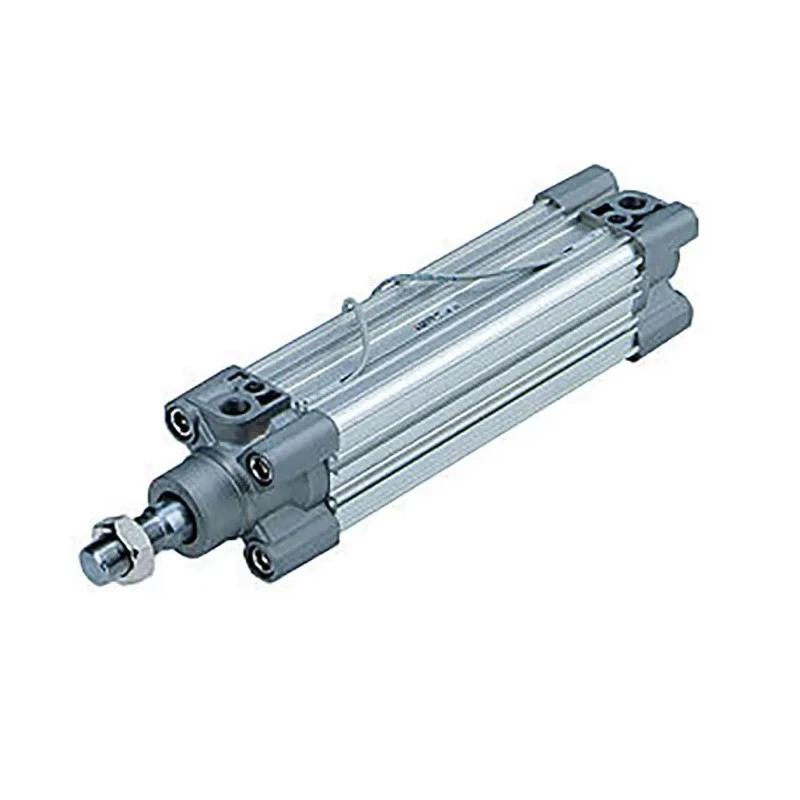

SMC Pneumatic Piston Rod Cylinder, Double Acting, 160mm Stroke, 125mm Bore, Aluminium Alloy Body CP96SD
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 144mm |
| Model | CP96SD |
| Series | CP96SD |
| Maximum Operating Temperature | 60°C |
| Stroke Length | 160mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552 |
| Cushioning Type | Air Cushion |
| Maximum Piston Speed | 1000 mm/s |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 1/2 in G |
| Bore sizes (mm) | 125 mm |
Key Features
- Double acting pneumatic cylinder designed for high-duty cycles in automation and machinery.
- Features a 160mm stroke length and a 125mm bore for large displacement applications.
- Constructed from durable aluminium alloy for lightweight yet sturdy operation.
- Single rod with air cushion for controlled piston motion and shock reduction.
- Metric 1/2 inch G thread standard piston rod for compatibility with common fittings.
- Maximum piston speed rated at 1000mm/s for rapid actuation.
- Operates reliably up to 60°C ambient temperature and conforms to ISO 15552.
- Auto switch capable for easy integration with control systems.
Product Description
SMC CP96SDB125-160 is a high-performance pneumatic piston rod cylinder engineered for industrial automation and fluid power applications. Offering a substantial 160mm stroke and 125mm bore, this cylinder is designed for efficient linear actuation where large displacement is essential.
The double acting configuration ensures powerful actuation in both directions, making it ideal for repeatable motion tasks in manufacturing, process equipment, or robotics. Constructed from premium aluminium alloy, its body delivers optimal strength-to-weight ratio, ensuring reliable performance and easy handling.
Equipped with air cushioning, the cylinder absorbs motion shocks, protects mechanical integrity, and reduces wear during rapid or cyclic operations. The single piston rod comes threaded in metric 1/2 inch G standard, compatible with a broad range of mounting hardware and accessories for easy installation.
With a maximum piston speed of 1000mm/s, this SMC cylinder achieves fast yet precise actuation, supporting high productivity and flexibility in demanding environments. Its operational temperature ceiling of 60°C supports use in diverse factory and workshop settings.
Key dimensions include a total length of 144mm, supporting compact assembly while providing robust stroke travel. The CP96SD Series conforms to ISO 15552 standards, ensuring interchangeability and standard compliance across pneumatic systems.
Applications include automated assembly lines, packaging machinery, material handling, processing equipment, and industrial robotics. Auto switch capability allows seamless integration with electrical controls for responsive automation.
The SMC CP96SDB125-160 Cylinder represents advanced pneumatic engineering, combining durability, precise action, and universal compatibility for professional industrial use. Explore other SMC Pneumatic Cylinders and accessories at EnvMart for optimal system integration and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 160mm, allowing for efficient linear actuation in various applications.
This pneumatic cylinder features a bore size of 125mm, which is suitable for large displacement applications.
The maximum piston speed is rated at 1000mm/s, enabling rapid actuation for high productivity.
It operates reliably up to a maximum ambient temperature of 60°C, making it suitable for various industrial environments.
It is equipped with air cushioning, which helps absorb motion shocks and reduces wear during operation.
The piston rod comes with a metric 1/2 inch G thread standard, ensuring compatibility with common fittings.
The total length of this cylinder is 144mm, which supports compact assembly while providing robust stroke travel.
Yes, it conforms to ISO 15552 standards, ensuring interchangeability and compliance across pneumatic systems.
This model features a double acting action type, allowing for powerful actuation in both directions.
It is constructed from aluminium alloy, providing a lightweight yet sturdy body for reliable operation.
This cylinder is designed for use in automated assembly lines, packaging machinery, material handling, processing equipment, and industrial robotics.
Yes, it is auto switch capable, allowing for easy integration with control systems for responsive automation.
