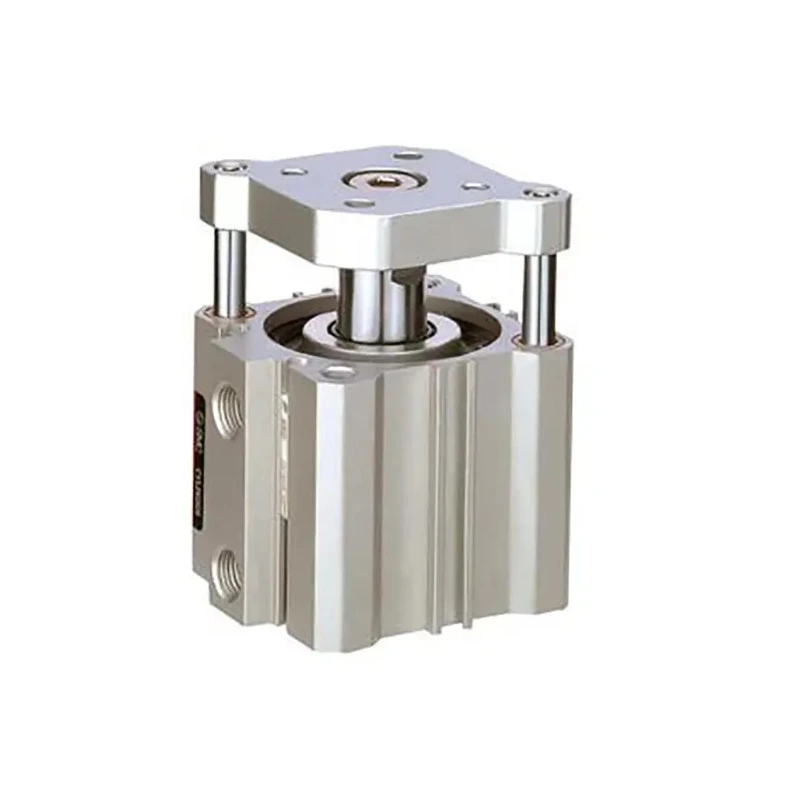

SMC Pneumatic Compact Cylinder 16mm Bore, 15mm Stroke, Double Acting, Aluminium Body, CDQMB16-15

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 16mm Bore, 15mm Stroke, Double Acting, Aluminium Body, CDQMB16-15



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Height	29mm
Length	29mm
Model	CDQMB16-15
Gross Weight	87g
Width	46.5mm
Mount Type	Through Hole
Series	CDQM
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	15mm
Bore Diameter	16mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Maximum Piston Speed	500 mm/s
Piston Rod Thread Standard	Metric
Standard strokes (mm)	5 to 100 mm
Non-rotating Accuracy	0.2 or less mm

Key Features

Compact pneumatic cylinder suitable for tight installation spaces.
Features a 16mm bore and 15mm stroke for precision motion control applications.
Double acting operation for versatile actuation requirements.
Constructed with a robust aluminium alloy body for durability.
Through-hole mounting for secure and flexible installation.
Rubber bumper cushioning ensures smooth operation and impact protection.
Maximum operating pressure of 1 MPa supports demanding applications.
Metric piston rod thread standard offers compatibility in industrial setups.

Product Description

The SMC CDQMB16-15 Pneumatic Compact Cylinder is an industrial-grade actuator engineered for applications requiring reliable linear motion in confined spaces. Its compact form factor, combined with precision engineering, makes it ideal for automation, manufacturing, material handling, and robotics.

With a bore diameter of 16mm and a stroke length of 15mm, this cylinder delivers accurate positioning and repeatability critical in pneumatic systems. The double acting configuration allows for push and pull operations, supporting bidirectional movement and responsive control for a wide range of industrial tasks.

The body is manufactured from high-quality aluminium alloy, offering both strength and resistance to corrosion. The through-hole mounting design facilitates straightforward installation and integration into existing machine frameworks. Rubber bumper cushioning at both ends of the stroke reduces noise, absorbs shocks and lengthens operational life.

With a maximum operating pressure of 1 MPa and piston speeds of up to 500 mm/s, the CDQMB16-15 provides robust performance even under demanding conditions. The rod is of single type, with metric thread, ensuring compatibility with standard industrial fittings and connectors.

Operational temperature ranges from -10°C to 60°C, making it suitable for many factory and laboratory settings. The cylinder is designed for non-rotating accuracy (0.2mm or less), and with its guide rod type build it offers up to four times the lateral load resistance compared to standard CQ2K cylinders.

Dimensions are 29mm in length and height, 46.5mm in width, with a compact gross weight of 87g. Its standard strokes are available from 5mm up to 100mm, and various bore sizes are supported for broader compatibility across system lines.

Ideal for use in industrial automation, machine building, laboratory automation, packing and conveying lines, and anywhere reliable compact pneumatic actuation is needed. Explore more Pneumatic Cylinders and accessories in EnvMart's Hydraulic & Pneumatic Tools category or browse SMC's range for engineered pneumatic solutions.
