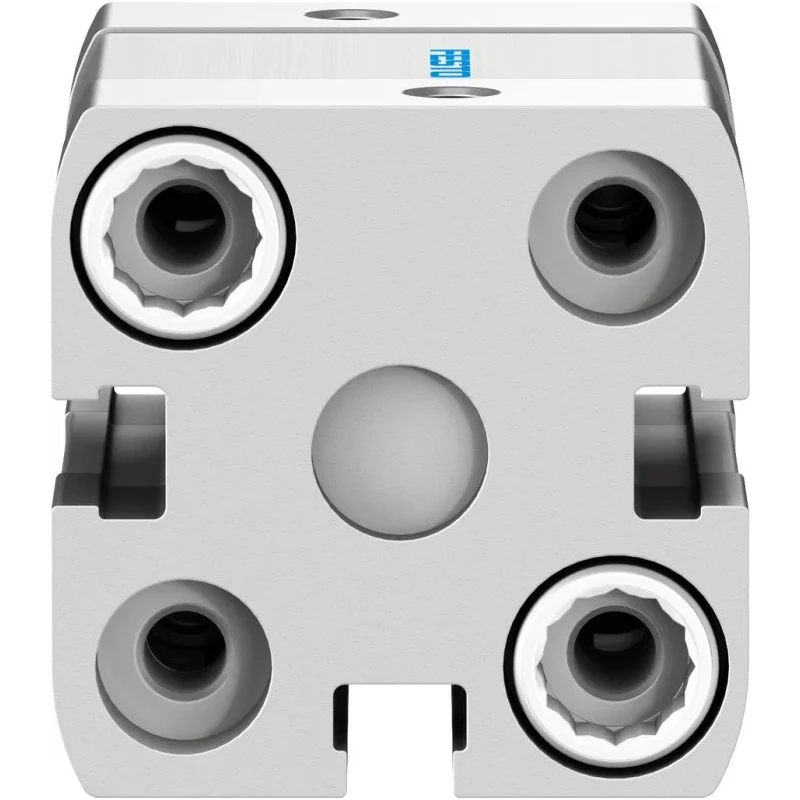

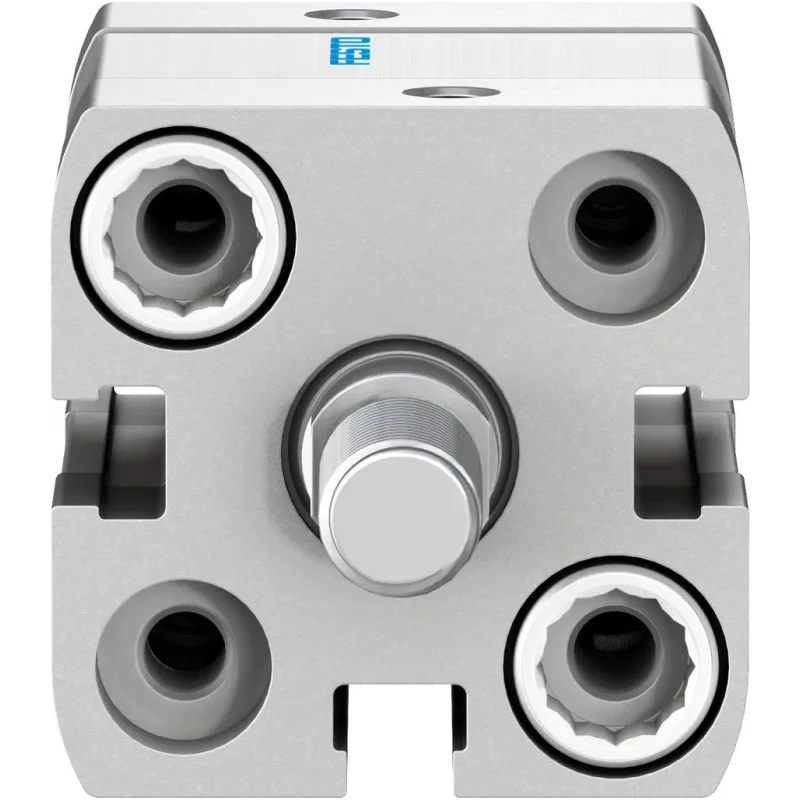

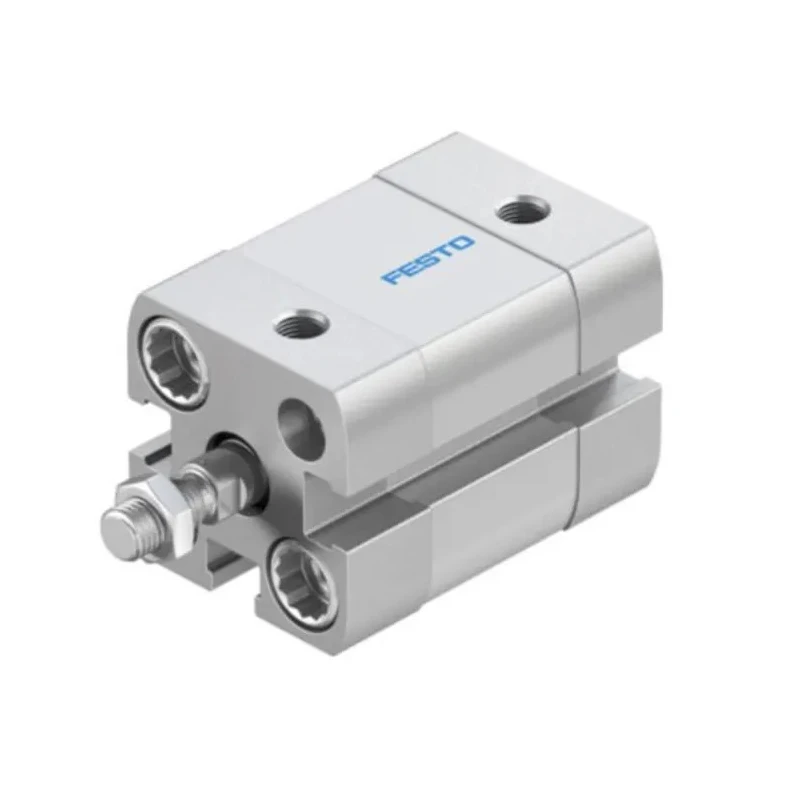

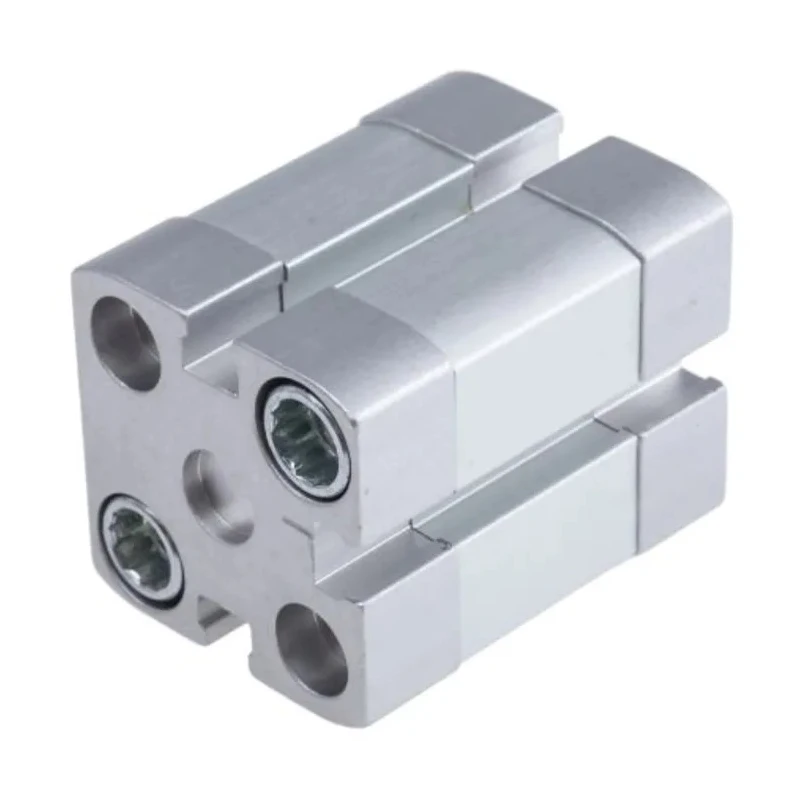

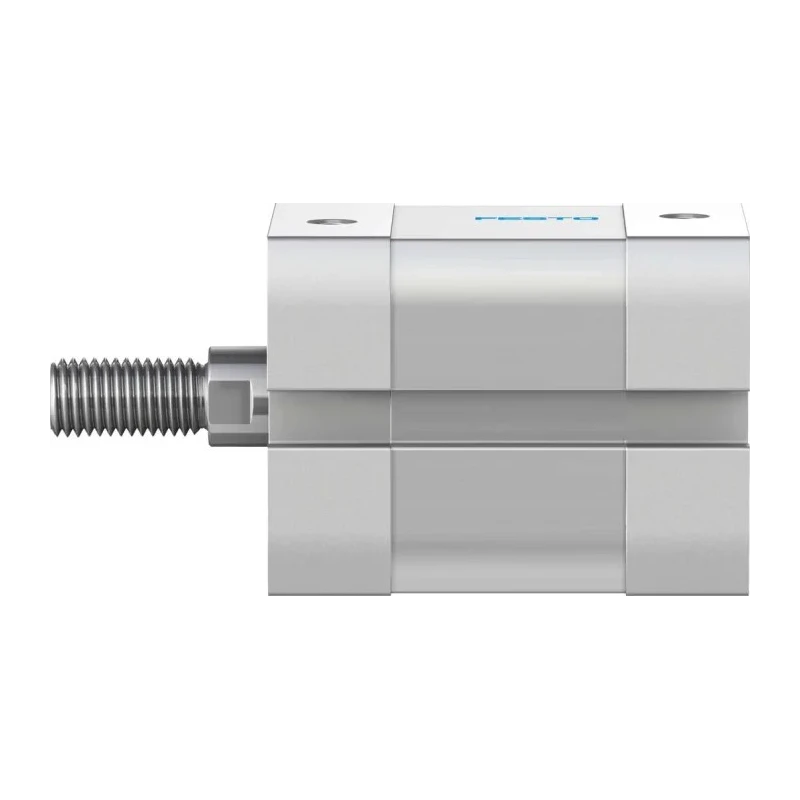

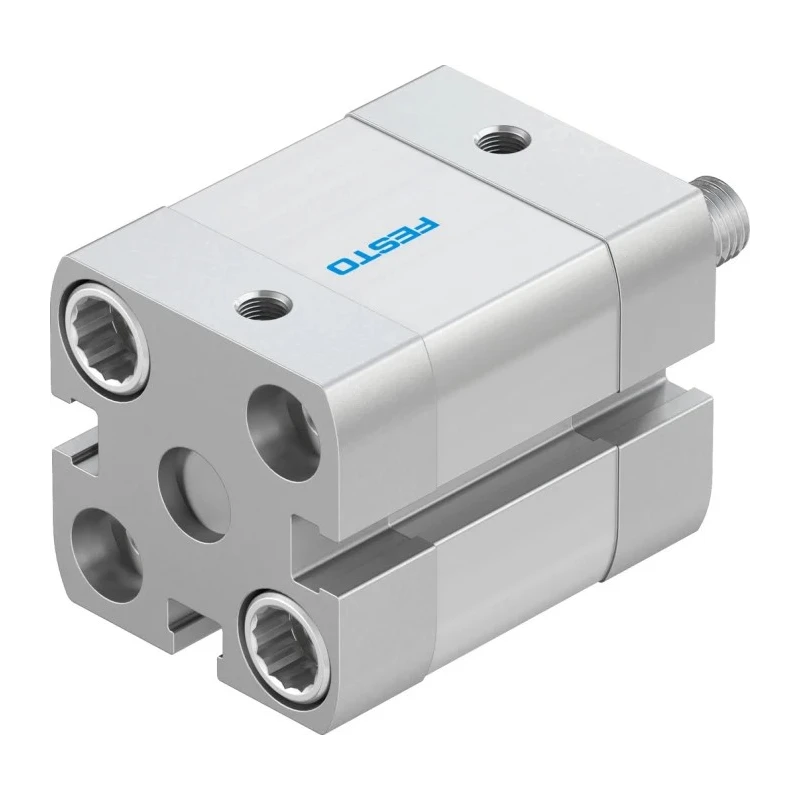

Festo Double Acting Pneumatic Cylinder 20mm Bore, 10mm Stroke, Aluminium Body, 10 Bar Max, Through Hole Mount ADN-20-10-A-P-A

Festo ADN-20-10-A-P-A is a high-quality double acting Pneumatic Cylinder engineered for precision linear motion applications. With a 20mm bore and a short 10mm stroke, this cylinder is ideal for compact setups and automated processes requiring reliable, repeatable performance.

The cylinder’s body is constructed from robust aluminium alloy, offering resistance to corrosion and mechanical impacts. Its double acting design draws compressed air into both ports, enabling the rod to extend and retract with controlled speed and accuracy. End-of-stroke flexible cushioning absorbs impact forces, reducing wear and extending the operating life of the cylinder and associated mechanisms.

It operates effectively at pressures from 0.6 to 10 bar, making it suitable for a wide range of pneumatic systems, including those in semiconductor manufacturing, automated assembly lines, and pressing or clamping equipment. The M5 port connection ensures compatibility with common pneumatic fittings for easy installation. The mounting type is through hole, simplifying direct integration into machinery and automation setups where space and stability are crucial.

With a piston rod thread size of M5, male rod gender and single rod type, this cylinder adapts to various actuator tasks. The barrel diameter of 20mm delivers medium force output, while the 10mm stroke length supports precise positioning in restricted areas.

The cylinder is designed for versatility and durability, capable of working with both lubricated and non-lubricated compressed air. It supports demanding operating conditions with a temperature range from -20°C to 80°C. Standards such as ISO 21287 and RoHS ensure compliance with international requirements for pneumatic components.

Industrial use cases include semiconductor equipment, automated manufacturing, material handling, assembly presses, and clamping applications. It is especially suited for environments needing reliable, compact motions and frequent cycling.
