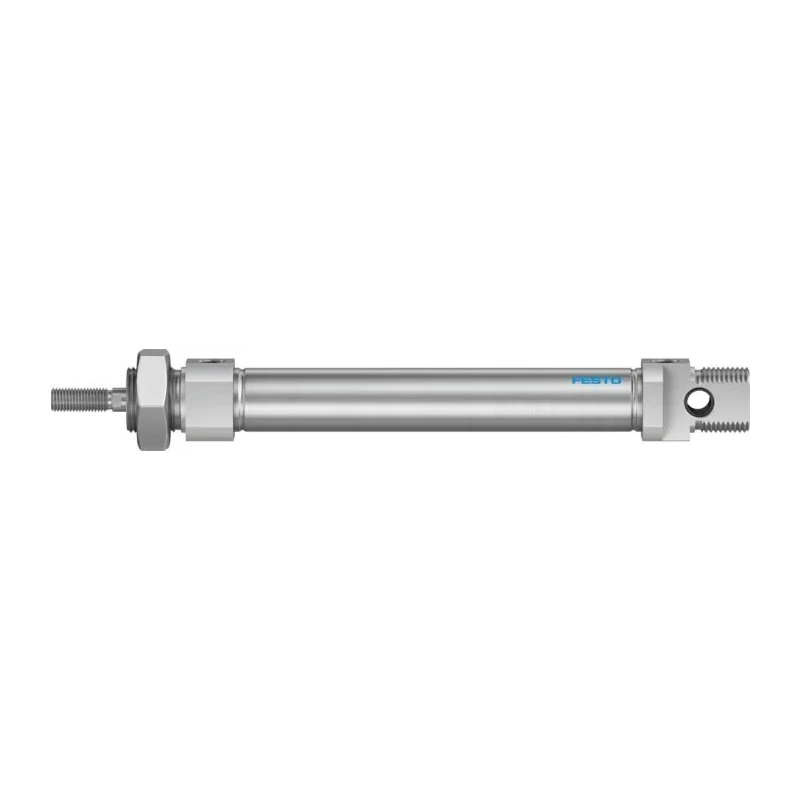

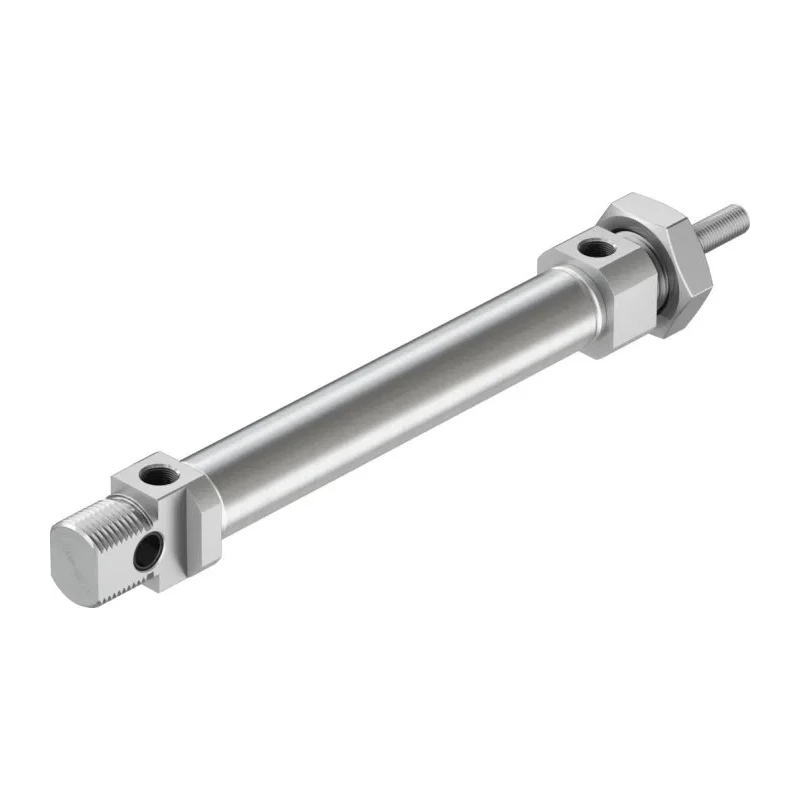

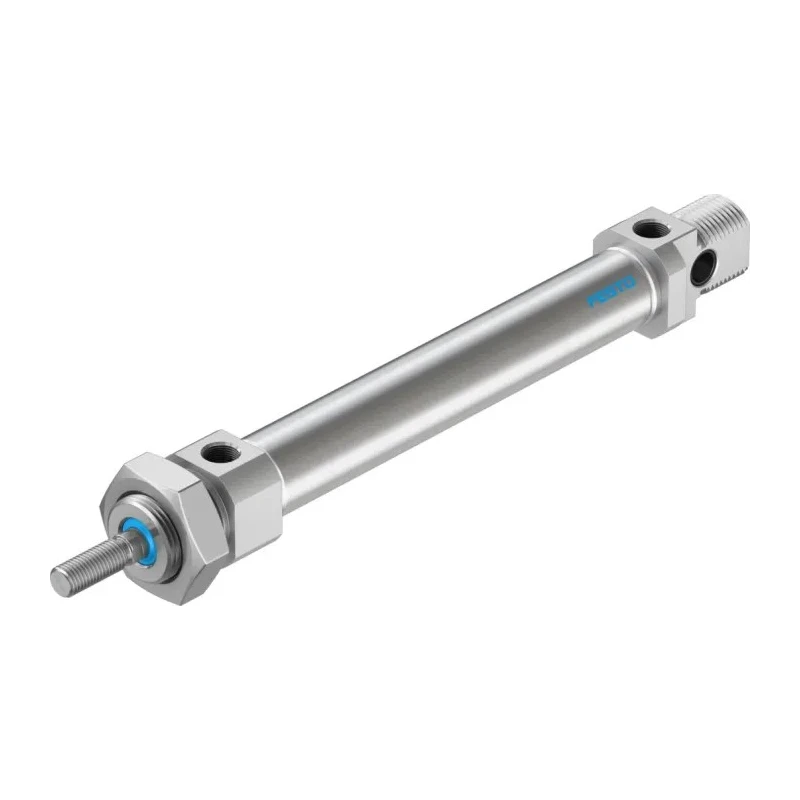

Festo 100 mm Pneumatic Cylinder Double Acting, Self-Adjusting Pneumatic Cushioning DSNU-20-100-PPS-A

Festo DSNU-20-100-PPS-A pneumatic cylinder is a high-performance double-acting actuator featuring a 100 mm stroke length and a 232 mm overall length. It provides precise and reliable linear motion control critical for industrial automation, manufacturing, and process control equipment.

This cylinder incorporates a self-adjusting pneumatic cushioning system (PPS) that minimizes wear and impact damage by adapting cushioning characteristics according to load variations. The design supports multiple mounting options - swivel, direct, front, foot, rear, and flange mounts - offering flexible installation tailored to custom machine setups.

With a maximum piston speed of 100 mm/s and an operating temperature rating up to 80°C, this pneumatic cylinder accommodates demanding environments and rapid cyclic applications. The piston rod features a durable male metric thread, ensuring secure and standardized mechanical connections compliant with ISO 1179-1 and ISO 228-1 standards.

Certified to ISO 6432 and CE marked under ATEX directives, this unit meets global safety and explosion protection requirements, making it suitable for hazardous-area pneumatic systems. It is commonly employed for pick-and-place operations on manufacturing lines, valve actuation in processing plants, and machine-tool feed positioning.

Double-acting pneumatic cylinder with 100 mm stroke length for controlled linear motion. Self-adjusting pneumatic cushioning (PPS) protects against end-impact damage. Multiple mount types including swivel, direct, front, foot, rear, and flange allow versatile installation.

Maximum piston speed of 100 mm/s ensures consistent, stable operation. Rated for continuous operation up to 80°C for use in warmer process environments. Constructed with metric male-threaded piston rod for robust mechanical connection.

Complies with ISO 6432, ISO 1179-1, ISO 228-1 standards and CE marked to ATEX for explosion protection. Ideal for pick-and-place, valve actuation, and machine tool applications in industrial automation and hazardous areas.

Choose the Festo DSNU-20-100-PPS-A pneumatic cylinder for reliable, high-accuracy linear actuation in your hydraulic, pneumatic, or manufacturing processes. Browse our extensive range of Pneumatic Cylinders and automation components for complementary solutions at EnvMart.
