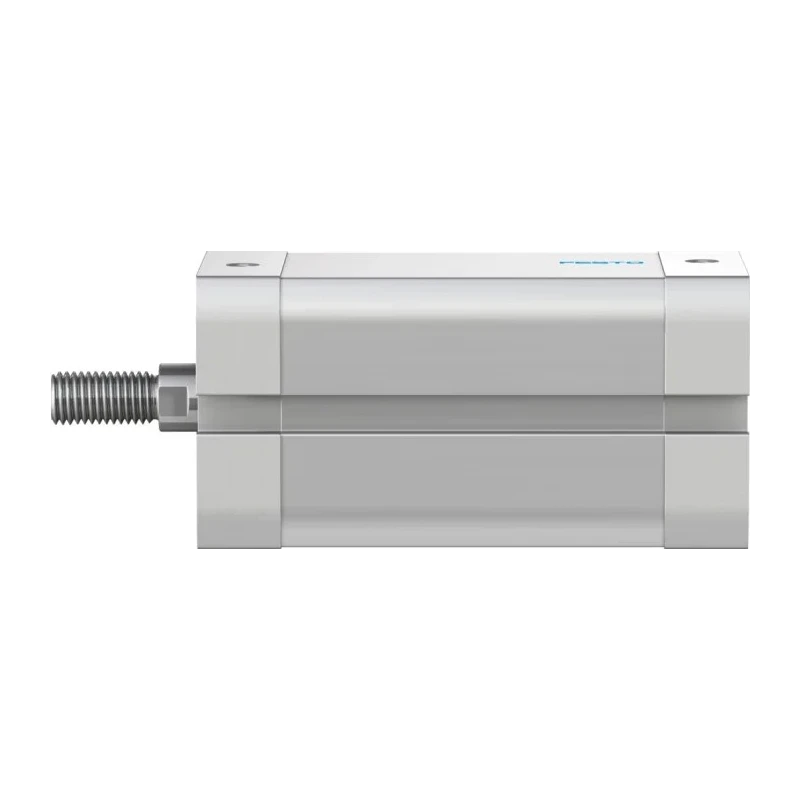

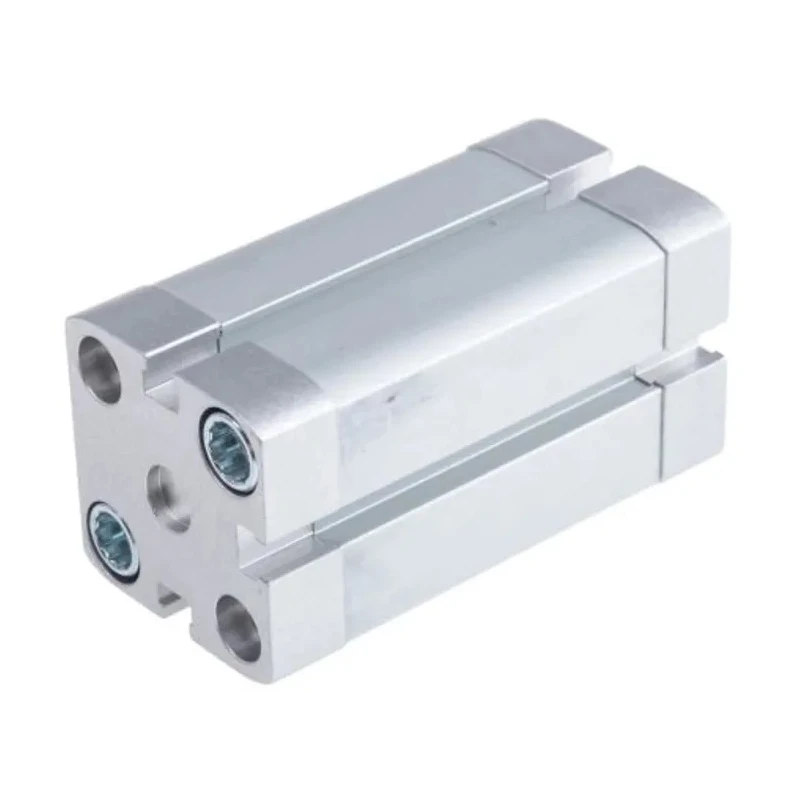

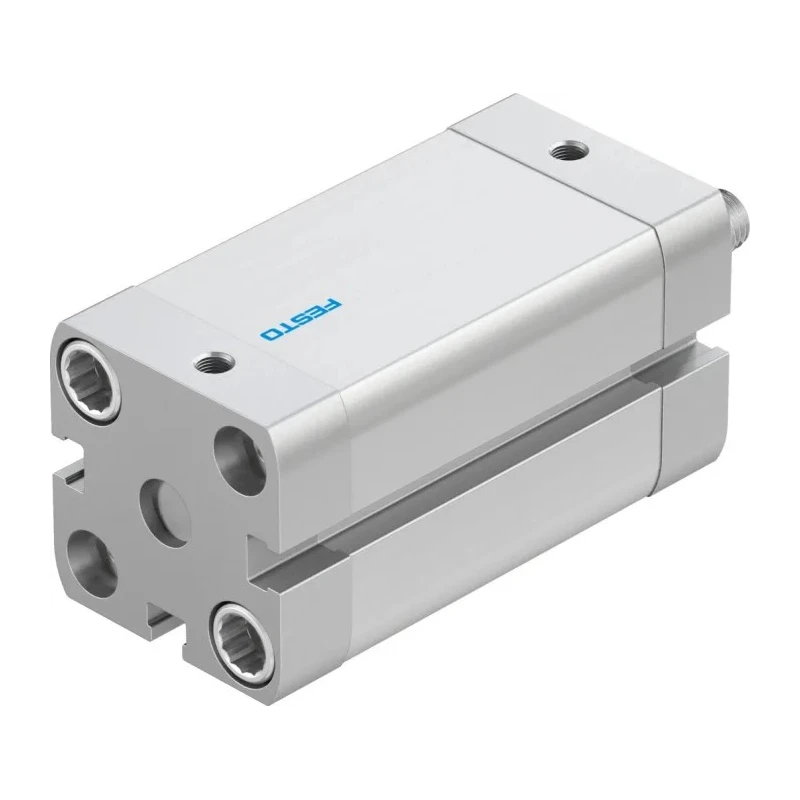

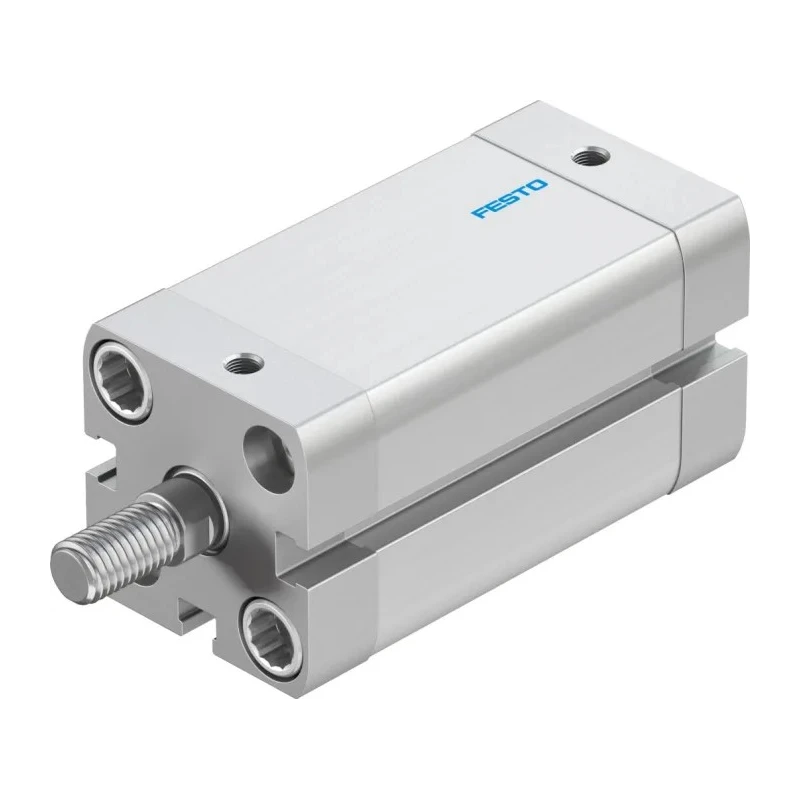

Festo ADN-25-40-A-P-A Pneumatic Cylinder, 25 mm Bore, 40 mm Stroke, Double Acting, 10 bar, Aluminium, Germany

The Festo ADN-25-40-A-P-A Pneumatic Cylinder delivers double acting linear motion in a compact profile, ideal for precise and repeatable actuation tasks within industrial environments. With a 25 mm bore and 40 mm stroke, this actuator is specifically engineered for equipment requiring moderate force generation in limited installation spaces.

Manufactured with an aluminium body, the cylinder provides a balance of low weight and corrosion resistance, making it a practical choice for automated assemblies and pick-and-place applications. Its robust design supports maximum operating pressures up to 10 bar, ensuring reliable performance in pressing, gripping, or valve actuation duties where consistent motion is critical.

Elastic cushioning rings are integrated into both ends of the mechanism, reducing shocks and minimizing noise during end-of-stroke transitions. These features extend the working life of machinery components and support quiet operation in processing lines or assembly cells. The single piston rod, with a male M8 thread, allows for universal coupling to load fixtures or other mechanical interfaces, while the through-hole mounting facilitates simple and secure installation into panels or subframes.

Engineered to perform across a -20°C to 80°C temperature range, the cylinder is designed for reliable service even in chilled and moderately warm production facilities. Its compact envelope (84.5 mm length, 39.5 mm height and width, 285 g nominal weight) ensures suitability for robotic systems, pneumatic grippers, testing jigs, and conveyor transfer operations.

The Festo ADN-25-40-A-P-A Pneumatic Cylinder complies with ISO 21287 dimensional standards and RoHS requirements, assuring straightforward replacement and global compatibility. It is well suited for automation applications including pick-and-place, short-stroke transfer, and controlled valve actuation in manufacturing, test rigs, and process engineering.

Upgrade motion control in your automation network using Festo’s reliable pneumatic actuation technology, and explore more in our Pneumatic Cylinder range.
