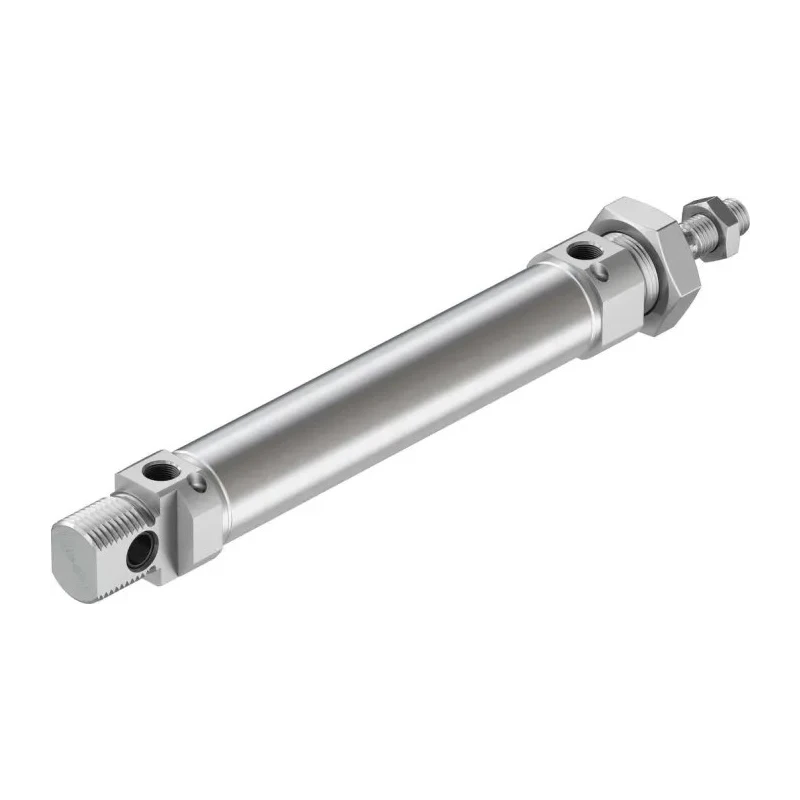

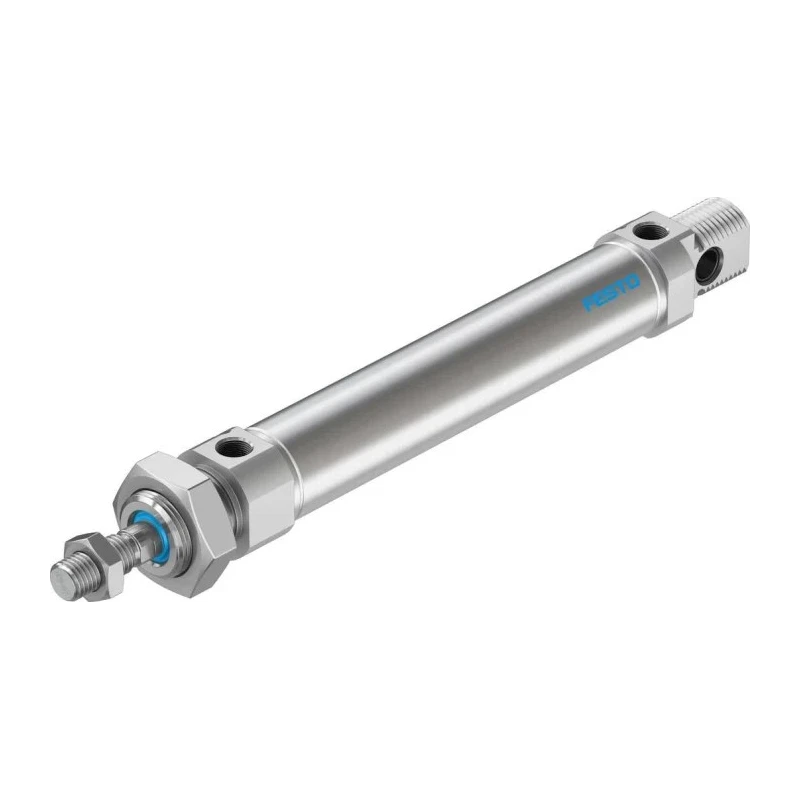

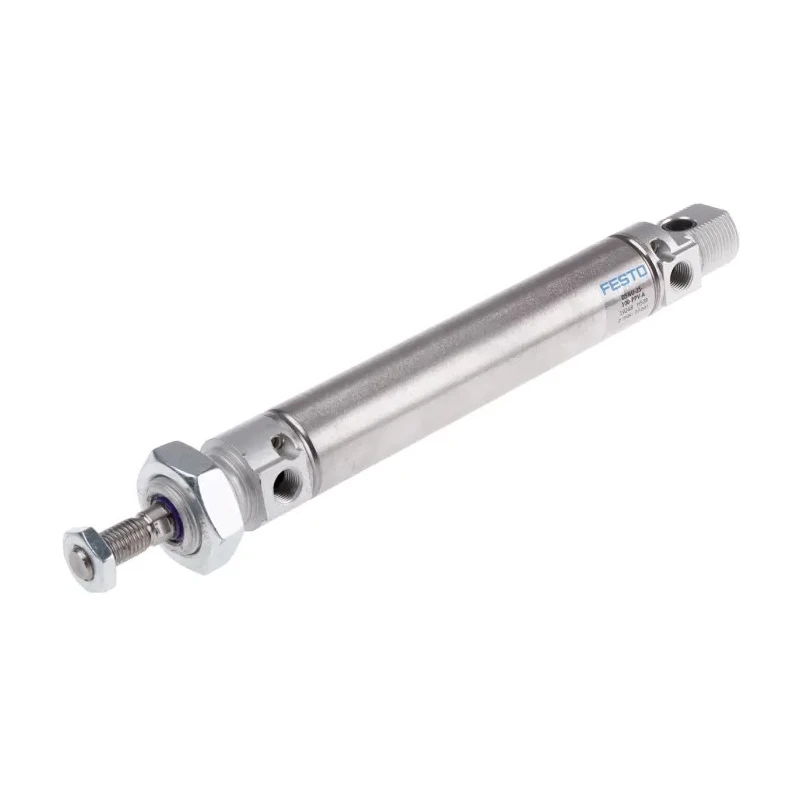

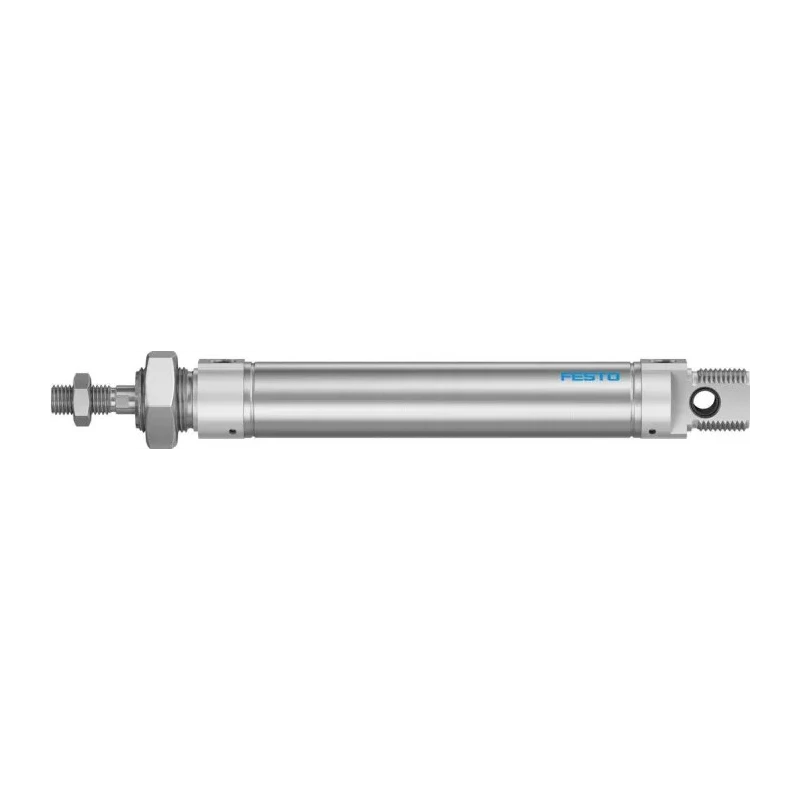

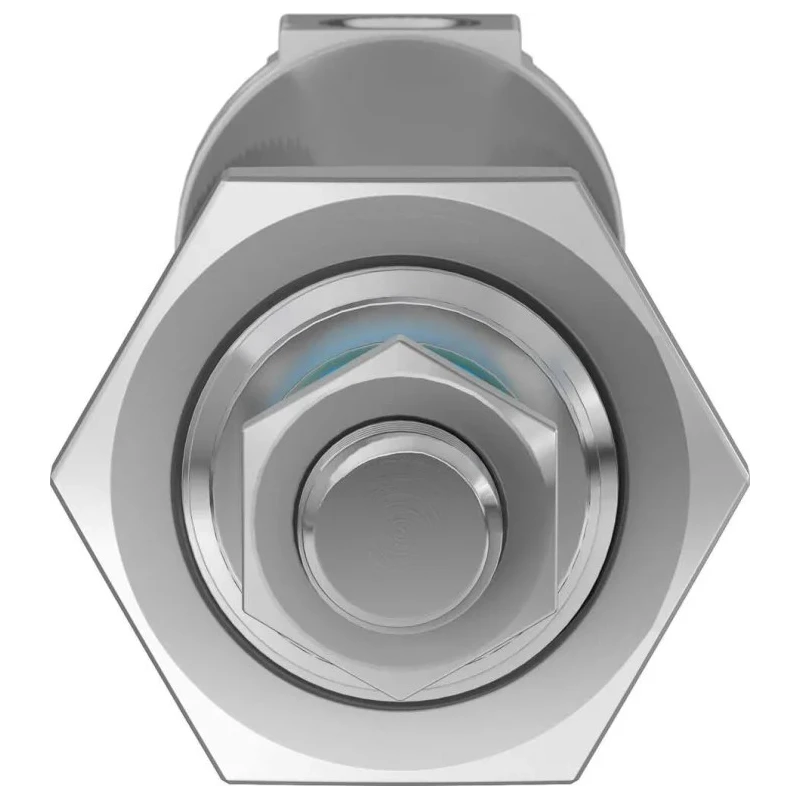

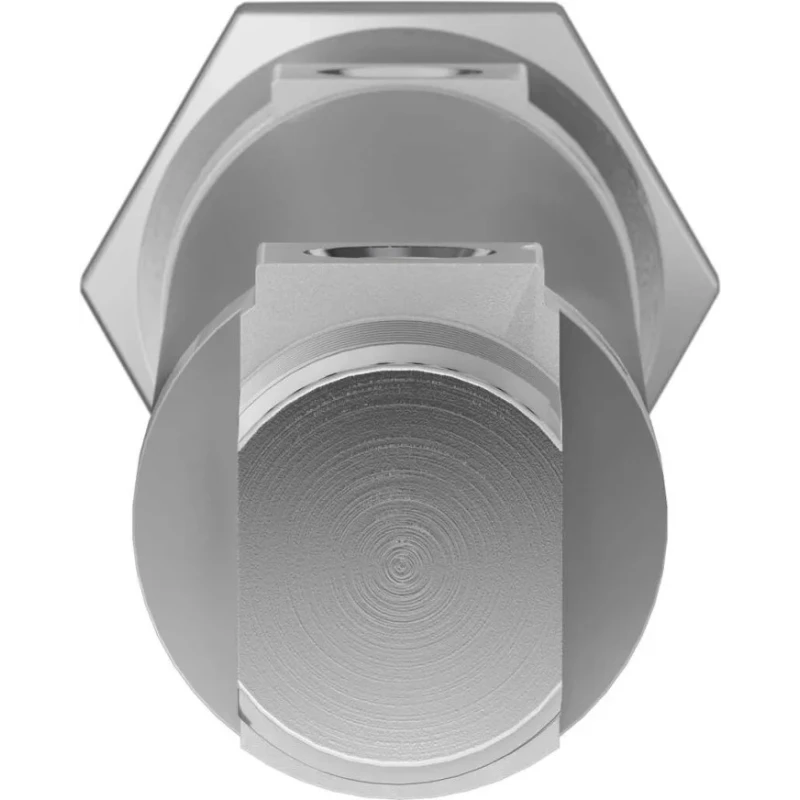

Festo 100 mm Double Acting Pneumatic Cylinder with Air Cushion, Direct Mount, DSNU-25-100-PPV-A

Festo DSNU-25-100-PPV-A is a precision-engineered 100 mm stroke pneumatic cylinder designed for demanding industrial automation applications. This double acting cylinder delivers stable, reliable linear movements with enhanced durability, featuring a 20 mm diameter piston rod fabricated from corrosion-resistant high-alloy steel. The direct mounting design simplifies installation while the air cushioning feature effectively absorbs impact energy, reducing wear and extending the service life of the component.

Operating over a pressure range of 1 to 10 bar, the cylinder produces near 300 N of force during both retraction and advance strokes through its double acting ports, ensuring efficient and controlled motion. It supports operation in harsh ambient environments, tolerating temperatures between -20°C and +80°C, making it versatile for various industrial conditions.

The DSNU-25-100-PPV-A complies with international standards including ISO 6432, ISO 1179-1, ISO 228-1, Germanischer Lloyd, and ATEX certifications (II 2G, II 2D, CE in accordance with EU Explosion Protection Directive), certifying its safety and quality for industrial use. Its metric G1/8 thread connection meets industry norms for pneumatic line compatibility.

This pneumatic cylinder is well-suited for applications such as factory automation, packaging machinery, and transportation systems where precise, repetitive linear motion is required. It can be safely used with lubricated compressed air supplies, enhancing operational flexibility.

Manufactured in Germany, this product assures excellent build quality and compliance with stringent industrial standards. The robust construction and certified features make it a reliable choice for professionals.

The cylinder has a 20 mm piston rod made of non-corroding high-alloy steel. Double acting design utilizes ports at both ends for bidirectional movement. Air cushioning minimizes wear and improves durability. Operating temperature range of -20°C to +80°C for tough environments.

Standard G1/8 thread enables simple pneumatic connections. Direct mount type for easy integration. Complies with ISO and ATEX standards, with Germanischer Lloyd approval. Force generated approximately 300 N under 1-10 bar pressure.

Applications include factory automation, packaging, and transportation. Produced in Germany ensuring high manufacturing quality. Explore the full range of Festo Pneumatic Cylinders and accessories on EnvMart for effective and efficient industrial pneumatic solutions.
