SMC 20 mm Pneumatic Piston Rod Cylinder, CU Series, Double Acting, Aluminium Alloy Body CDU20-20D

Free Delivery in India | Lowest Global Shipping Charges

SMC 20 mm Pneumatic Piston Rod Cylinder, CU Series, Double Acting, Aluminium Alloy Body CDU20-20D



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Length	75mm
Model	CDU20-20D
Series	CU
Maximum Operating Temperature	70°C
Stroke Length	20mm
Rod Type	Single
Action Type	Double Acting
Proof Pressure	10.5 bar
Cushioning Type	Rubber
Maximum Piston Speed	500 mm/s
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Stroke Allowance	+1.0 mm

Key Features

Double acting pneumatic cylinder provides precise linear motion.
20 mm bore size offers compatibility with multiple pneumatic setups.
CU Series design allows direct and space-saving mounting.
Aluminium alloy body ensures durability and corrosion resistance.
Rubber cushioning on both sides enhances operation and absorbs shock.
Stroke length of 20 mm is ideal for compact automation applications.
Maximum operating temperature up to 70°C for versatile environments.
Single male piston rod with metric thread for standard connection.

Product Description

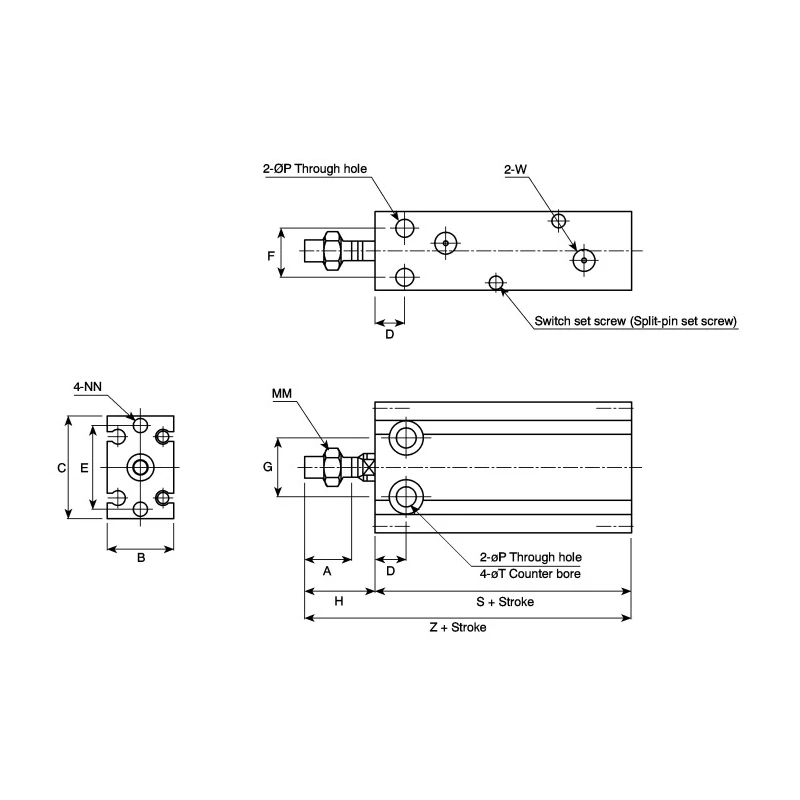

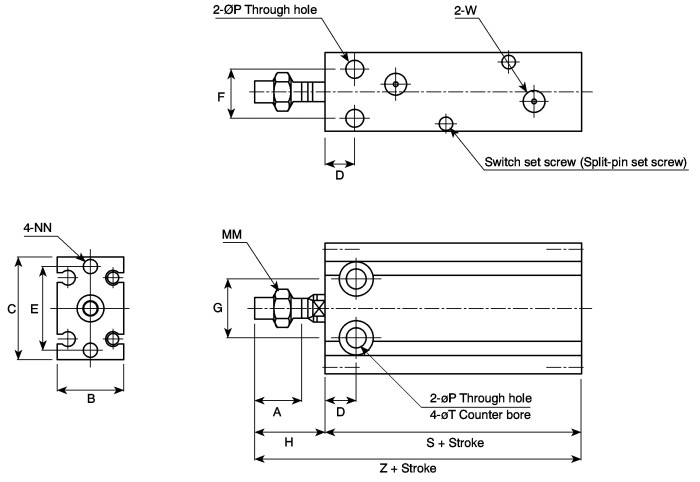

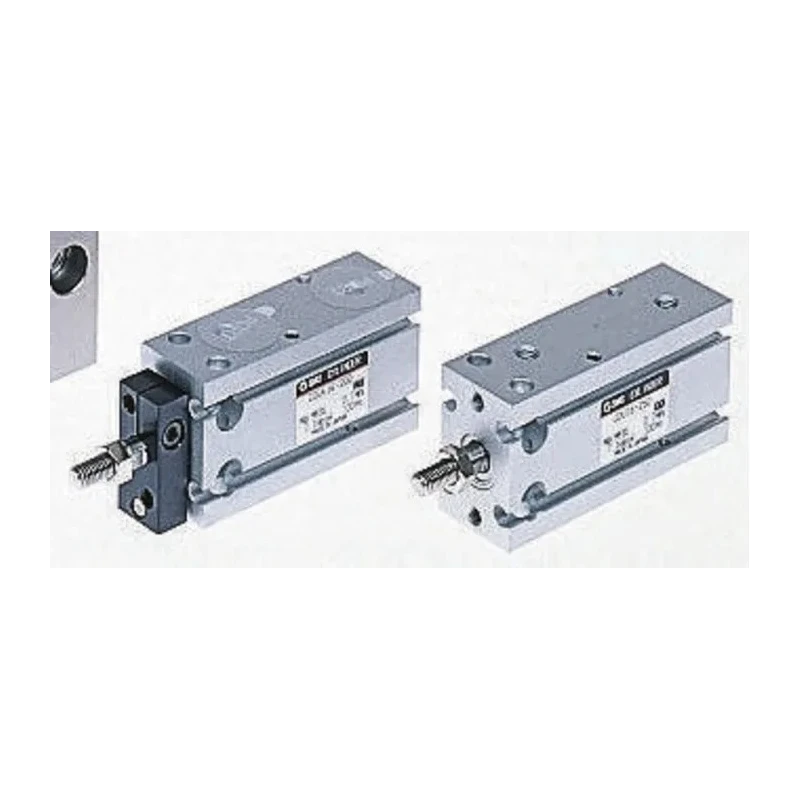

SMC CDU20-20D is a compact double acting pneumatic piston rod cylinder from the CU Series, featuring a 20 mm bore and 20 mm stroke length. Engineered for direct and precise mounting, this free-mount cylinder saves installation space and provides reliable linear motion for automation systems, machinery, and industrial applications.

The robust aluminium alloy construction offers excellent mechanical strength, corrosion resistance, and ensures long-term durability in demanding environments. The double acting configuration enables smooth reciprocating motion, controlled by pneumatic actuation. Rubber bumpers/cushions at both ends absorb impact, reduce vibration, and help to achieve quieter operation.

With a maximum operating temperature of 70°C and ambient/fluid temperature range from 5°C to 60°C, the cylinder is suitable for varied industrial conditions. The single male piston rod, equipped with a metric thread, allows easy integration with mechanical linkages, fixtures, and tooling.

The CU Series incorporates flexible mounting options, recessed switch grooves, and is available with auto-switch capabilities. The cylinder is maintenance-free, requiring no external lubrication. Stroke allowance of +1.0 mm ensures tolerance for slight overtravel, maintained by precision engineering.

Operating pressure reaches up to 7 bar with a proof pressure of 10.5 bar, providing safe, reliable performance for automation, packaging, material handling, and pneumatic tooling. Port size of M5 (with exceptions at larger diameters) facilitates standard pneumatic fitting connections.

Typical applications include industrial machinery, laboratory automation, assembly lines, material transfer systems, robotics, and process equipment where precise, compact linear motion is essential.

The SMC CDU20-20D is part of the CU Series rectangular cylinder family, offering magnet-equipped pistons as standard. Its rectangular design allows for direct and accurate assembly to mounting surfaces, supporting efficient integration into compact systems.

Explore more in Pneumatic Cylinders category, or browse SMC's full range of pneumatic automation components for industrial, laboratory, and advanced manufacturing use cases.
