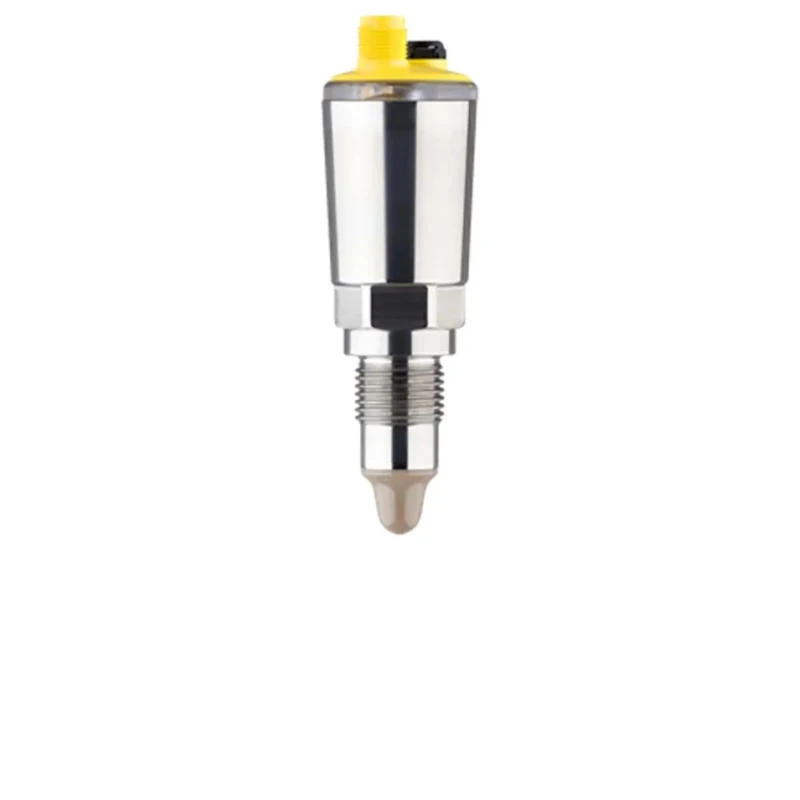

Vega VEGAPOINT 31 Series Impedance Switch Screw Mount Stainless Steel Housing CP - 222 238

Free Delivery in India | Lowest Global Shipping Charges

Vega VEGAPOINT 31 Series Impedance Switch Screw Mount Stainless Steel Housing CP - 222 238

Name: Vega VEGAPOINT 31 Series Impedance Switch Screw Mount Stainless Steel Housing CP - 222 238
Brand: Vega
SKU: 165874
Price: 401.68 USD
Availability: InStock



Category Switch Brand Vega Condition New

Specifications

Country of Origin	Germany
Brand	Vega
Model	CP - 222 238
Mount Type	Screw
Housing Material	Stainless Steel
Series	VEGAPOINT 31
Maximum Operating Temperature	155°C
Maximum Pressure	25bar
Minimum Operating Temperature	-40°C
Device Type	Impedance Switch
Interface Type	Bluetooth
Maximum dc Voltage	35V dc
Standards/Approvals	UKCA, RCM, EAC, CSA, CE
Gasket Material	Klingersil

Key Features

Operates between -40°C and 155°C process temperatures.
Suitable for maximum pressure up to 25 bar.
Equipped with a Klingersil gasket for robust sealing.
Designed primarily for overfill and dry run protection in water-based liquids.
Supports Bluetooth adjustment for simple setup.
Small sensor size enables installation in thin pipelines.
Features M12 PNP output and hygienic EPDM seals.

Product Description

Vega CP - 222 238 is part of the VEGAPOINT 31 series, an impedance switch designed for reliable capacitive level detection in water-based liquids. This screw mount sensor features a robust stainless steel housing combined with a Klingersil gasket for excellent durability and chemical resistance.

Operating within a broad temperature range from -40°C up to 155°C, it is well-suited for demanding industrial environments where precise level measurement is critical. The sensor supports a maximum pressure of 25 bar, enabling use in pressurized pipelines and vessels.

Its Bluetooth interface allows for effortless parameter adjustments and setup without the need for direct wiring, enhancing installation efficiency. The small form factor of this sensor makes it ideal for use in thin pipeline applications requiring hygienic standards, supported by EPDM seals and a hygienic design.

Typical industrial applications include overfill protection and dry run prevention, crucial for process safety and automated control systems. The M12 PNP output facilitates integration with modern automation controllers and PLCs, providing reliable switch signals for process monitoring.

Operates between -40°C and 155°C process temperatures. Maximum pressure withstand of 25 bar suitable for various applications. Stainless steel housing provides corrosion resistance and mechanical strength. Klingersil gasket ensures an effective seal in harsh environments.

Bluetooth interface enables wireless adjustment and setup. Compact design fits in thin pipelines with hygienic EPDM seal. M12 PNP output supports versatile electrical connectivity.

This impedance Switch is manufactured in Germany to high-quality standards, bearing approvals including UKCA, RCM, EAC, CSA, and CE. Ideal for industrial automation, water processing, chemical, food and beverage, and pharmaceutical industries requiring precise level detection.

Explore the Vega VEGAPOINT 31 series for dependable capacitive level measurement solutions on EnvMart.
