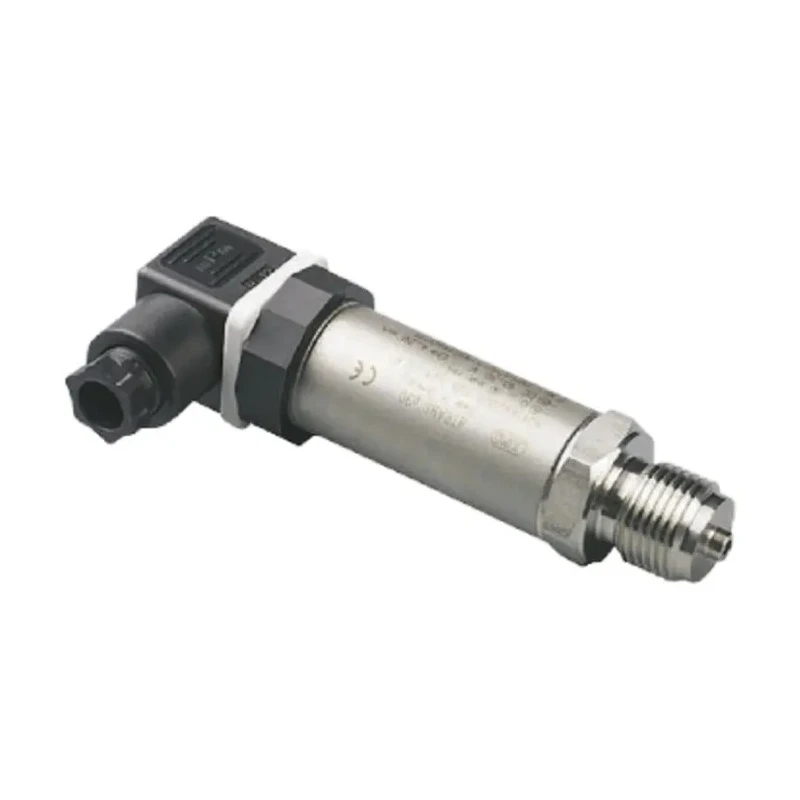

Vega dTRANS p30 Series Pressure Sensor Analogue Output 0 bar Minimum, Relative Reading 25 404366/000-461-405-504-20-61/000

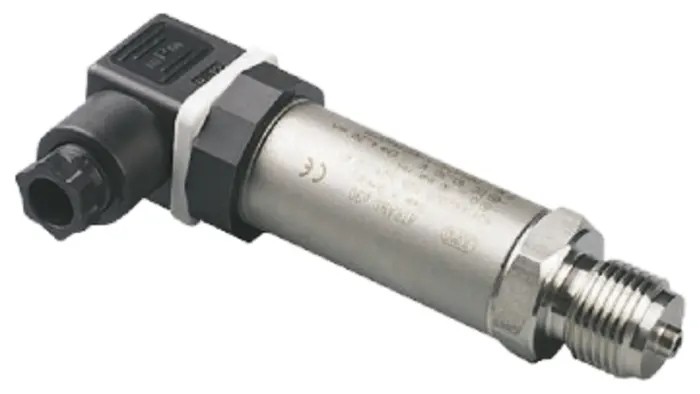

Jumo 404366/000-461-405-504-20-61/000 pressure sensor from the dTRANS p30 series is a high-precision analogue pressure converter designed for monitoring relative and absolute pressures in liquid and gaseous environments. It features a rugged AISI 304 stainless steel housing with parts in contact with the measured media made of AISI 316Ti or 316L stainless steel, ensuring chemical resistance and durability in demanding industrial conditions.

The device offers a pressure measurement range from 0 bar minimum to 25 bar maximum, suitable for various HVAC, industrial automation, and process control applications. Its analogue 4 to 20 mA 2-wire output simplifies integration with control systems through a screw terminal and an IP65-rated cable gland, providing protection against dust and water ingress.

Operating over a temperature range from -30°C to 120°C, the sensor delivers an accuracy of 0.5% and a rapid response time of 3 ms, making it ideal for precise pressure monitoring. The device operates reliably within a supply voltage range of 10 to 30 V DC and complies with industry standards EN 50 082-2 (CE mark) and EN 61326, ensuring safety and electromagnetic compatibility.

This pressure sensor is widely used in industrial, laboratory, HVAC, manufacturing, and water treatment sectors, handling gas and fluid media with consistent reliability. Its robust construction, high accuracy, and fast response time make it an essential component for pressure measurement and control systems.

Measures relative pressure accurately in gas and fluid media. Constructed with AISI 304 stainless steel housing for durability. Part exposed to measured environment made of AISI 316Ti / 316L stainless steel. Operates within temperature range from -30°C to 120°C.

Designed with IP65 rating for protection against dust and water. Provides 4 to 20 mA 2-wire output through screw terminal and cable gland. Offers fast response time of 3 milliseconds for precise monitoring. Powered with supply voltage between 10 V DC minimum and 30 V maximum.

Certified to EN 50 082-2 (CE mark) and EN 61326 standards. Manufactured in Germany with product condition New.
