Medical Pressure Sensors AS21
Specifications
| Output | 0.5 to 4.5 VDC or I2C |
|---|---|
| Brand | ACT |
| Type | Gauge |
| Supply Voltage (V) | 5VDC (or 3.3VDC) |
| Housing Material | Plastic |
| Part Number | AS21 |
| Pressure Range | -100 onwards upto 1500 KPa |
| Suitable Media | Gas |
Key Features
- Easy installation
- Precise design
- High performance
Product Description

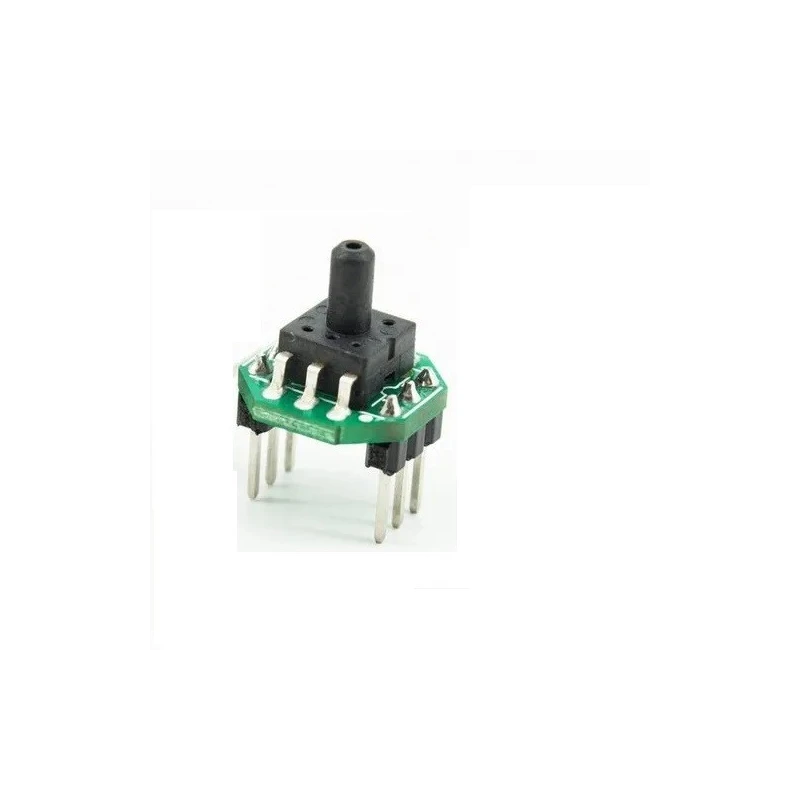

AS21 is a perfect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full-scale pressure span and temp. range. It incorporates a silicon piezoresistive pressure sensor(SOP6) and an onboard Application Specific Integrated Circuit(ASIC) under a PC board with a DIP6 package. The AS21 is fully calibrated and temperature compensated for offset, sensitivity, temperature, and non-linearity, so the AS21 pressure sensor module satisfies the perfect repeatability, linearity, stability, and sensibility, which can be applied directly in medical equipment, fitness machine, home electronics, and other pneumatic devices, etc. AS21 pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage, output voltage, and pressure range) are available.
- High Durability
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AS21 pressure sensor has a pressure range from -100 KPa up to 1500 KPa.
The AS21 operates at a supply voltage of 5VDC or 3.3VDC.
The housing of the AS21 is made from plastic.
Yes, the AS21 is fully calibrated and temperature compensated for offset, sensitivity, temperature, and non-linearity.
This unit is suitable for measuring gas media.
The AS21 is a gauge type pressure sensor.
It can be applied directly in medical equipment, fitness machines, home electronics, and other pneumatic devices.
The AS21 features a silicon piezoresistive pressure sensor and an onboard Application Specific Integrated Circuit (ASIC).
Customized calibrations for working voltage, output voltage, and pressure range are available.
The AS21 satisfies requirements for repeatability, linearity, stability, and sensibility, ensuring consistent performance.
The AS21 is designed for easy installation, making it convenient for various applications.
