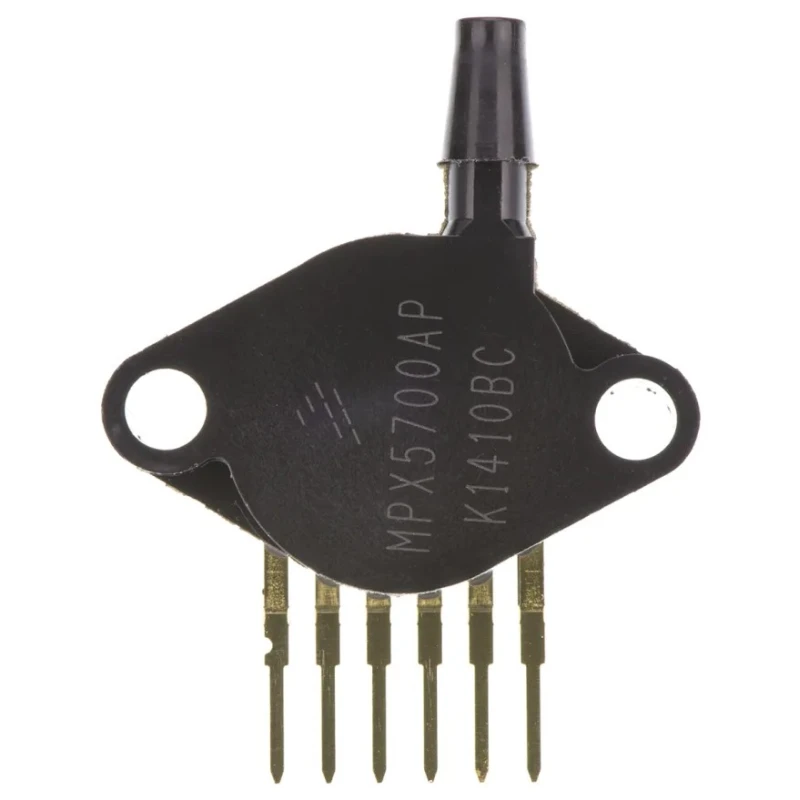

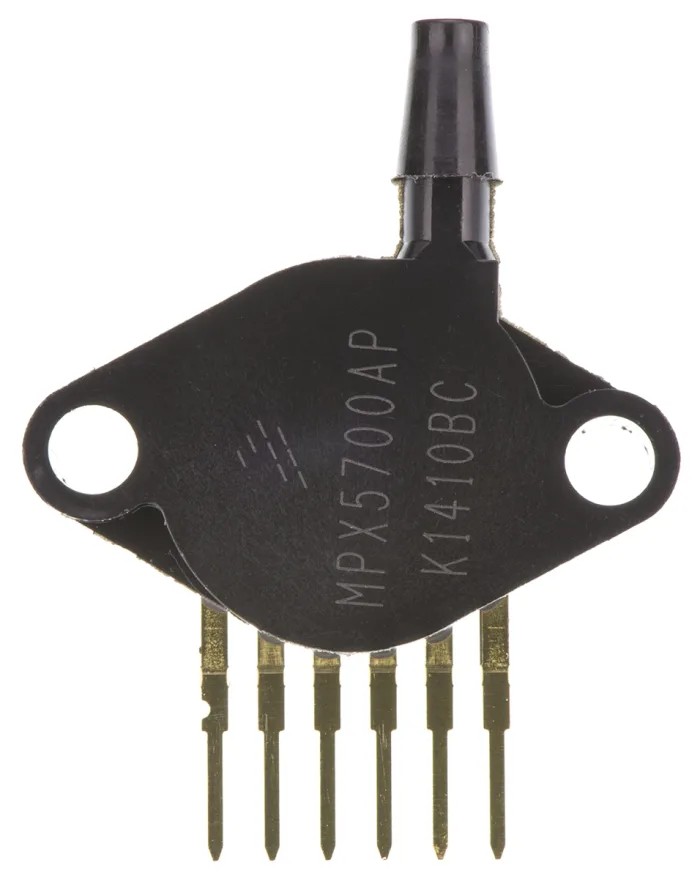

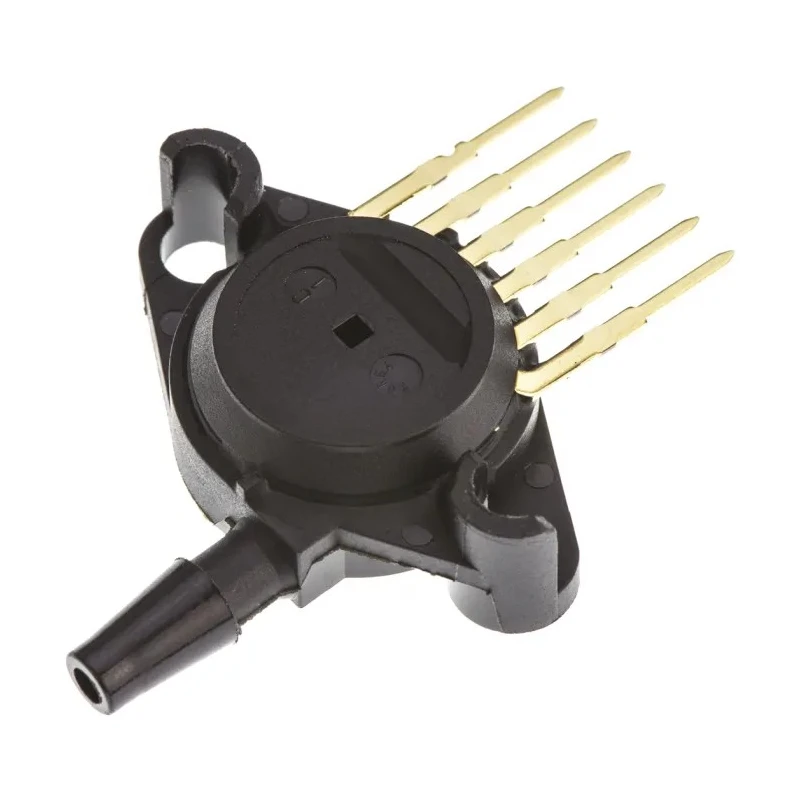

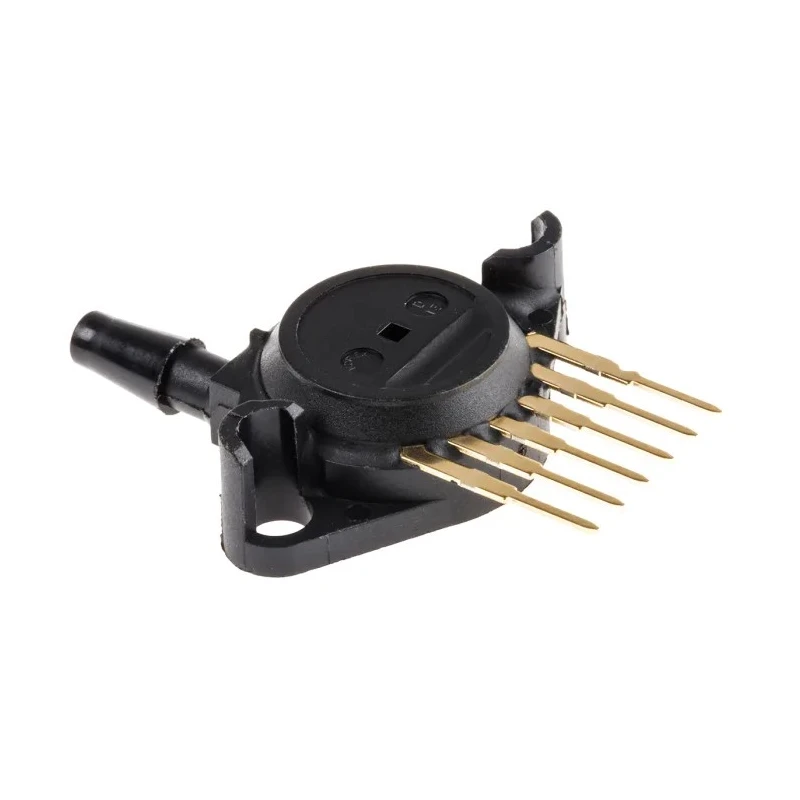

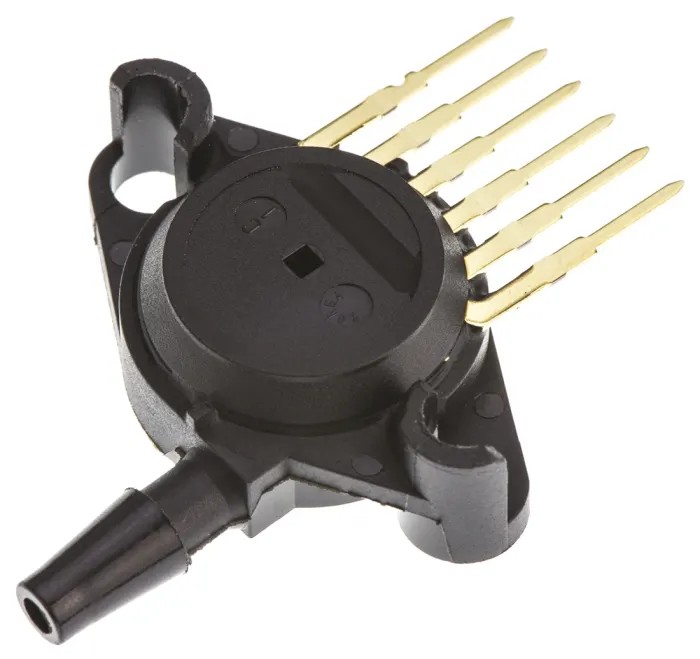

NXP Absolute Pressure Sensor Surface Mount 6-Pin Unibody, 700 kPa Operating Pressure, 4.75-5.25 V MPX5700AP
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2.5 % |
| Brand | NXP |
| Maximum Operating Pressure | 700 kPa |
| Height | 29.34mm |
| Length | 29.85mm |
| Model | MPX5700AP |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MPX5700AP |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Radial Barbed |
| Package Type | Unibody |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 6.4mV/kPa |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 4.7V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-1106Brand: NXPManufacturers Part No.: MPX5700AP |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Minimum Output Voltage | 200mV |
| Minimum Operating Pressure | 15kPa |
| Maximum Overload Pressure | 2800kPa |
| NXP MPX5700AP Absolute Pressure SensorSurface 6 UnibodyRS Stock No. | 719-1106Brand: NXPManufacturers Part No.: MPX5700AP |
| NXP MPX5700AP Absolute Pressure SensorSurface 6 UnibodyBrand | NXP |
Key Features
- High accuracy with ±2.5% tolerance for precise pressure detection.
- Operates between supply voltages of 4.75 V to 5.25 V for efficient power usage.
- Compact unibody package measuring 29.85 mm length and 29.34 mm height.
- Suitable for harsh operating temperatures from -40°C to 125°C.
- Single radial barbed port type allowing straightforward connection.
- Provides typical sensitivity of 6.4 mV/kPa for responsive output signals.
- Output voltage range from 200 mV to 4.7 V depending on pressure input.
- 6-pin surface mount configuration for easy PCB integration.
Product Description
The NXP MPX5700AP is a high-performance absolute pressure sensor designed for industrial and electronic applications requiring precise pressure measurement up to 700 kPa. It features a robust unibody surface mount package with 6 pins, ensuring easy integration onto PCBs.
This sensor offers an accuracy of ±2.5%, providing dependable pressure readings over a wide operating temperature range from -40°C to 125°C, suitable for harsh environments. It operates reliably within a supply voltage range of 4.75 V to 5.25 V.
The device's sensitivity of 6.4 mV/kPa enables accurate voltage output proportional to sensed pressure, with output voltages ranging from a minimum of 200 mV to a maximum of 4.7 V. Its single radial barbed port allows for straightforward pressure source connection.
Compact physical dimensions of 29.85 mm length and 29.34 mm height make it ideal for tight spaces and compact circuit designs. The sensor complies with RoHS directives, ensuring environmentally safe materials are used.
This absolute pressure sensor is well suited for industrial instrumentation, HVAC systems, automotive sensors, and other pressure measurement applications requiring precision and reliability in electronic components.
High accuracy pressure sensing of ±2.5% ensures reliable measurements. Stable operation across a wide temperature range (-40°C to 125°C). Compact unibody surface mount package for PCB assembly. Single radial port facilitates easy connection to pressure sources.
Compliant with environmental safety standards (RoHS). Explore more NXP pressure sensor and semiconductor components on EnvMart to suit your industrial and electronic design needs.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 700 kPa.
This model has an accuracy rating of ±2.5%.
It operates reliably within a temperature range of -40°C to 125°C.
The typical sensitivity of this sensor is 6.4 mV/kPa.
It requires a supply voltage range of 4.75 V to 5.25 V.
The sensor has a length of 29.85 mm and a height of 29.34 mm.
The output voltage ranges from a minimum of 200 mV to a maximum of 4.7 V, depending on the pressure input.
It features a single radial barbed port for straightforward connection to pressure sources.
Yes, it complies with RoHS directives, ensuring environmentally safe materials are used.
This model utilizes a surface mount configuration with 6 pins for easy PCB integration.
The maximum overload pressure is 2800 kPa.
It is suitable for industrial instrumentation, HVAC systems, and automotive sensors, among other pressure measurement applications.
