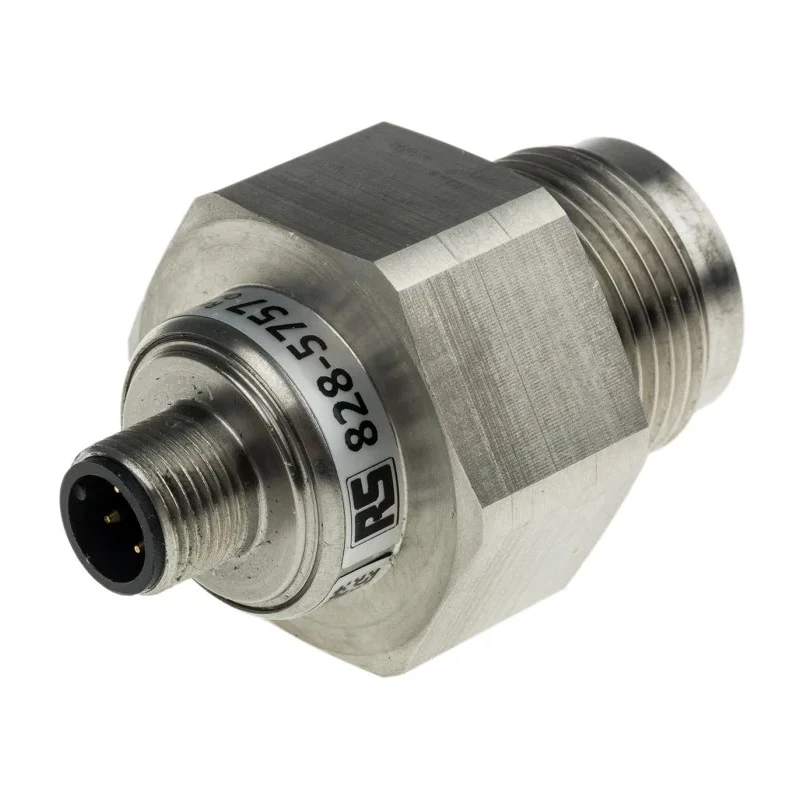

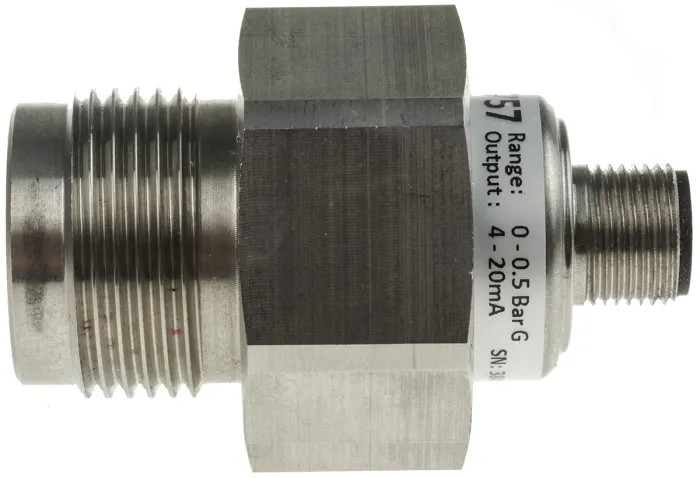

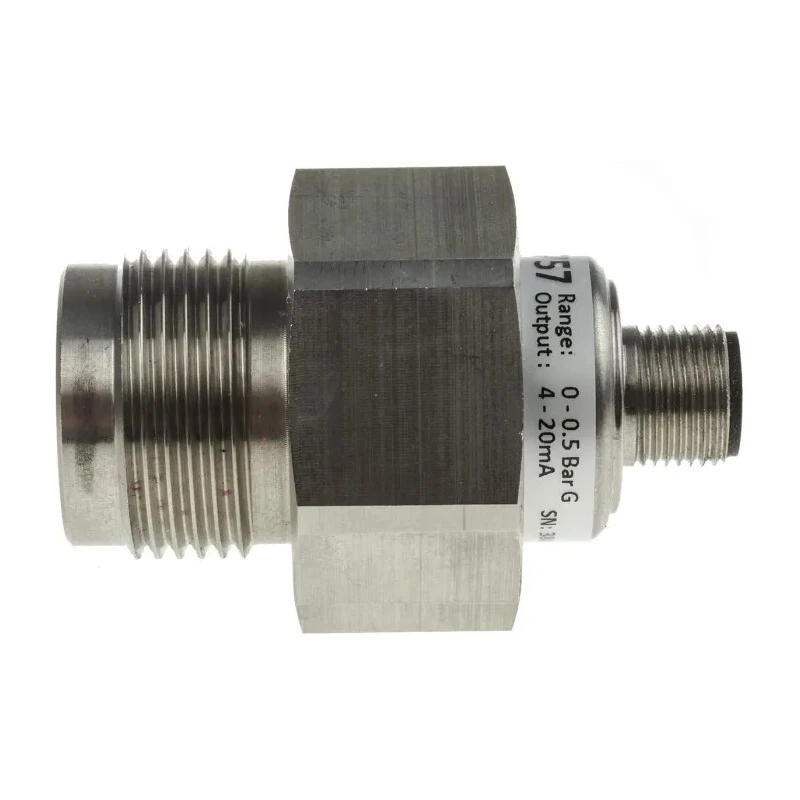

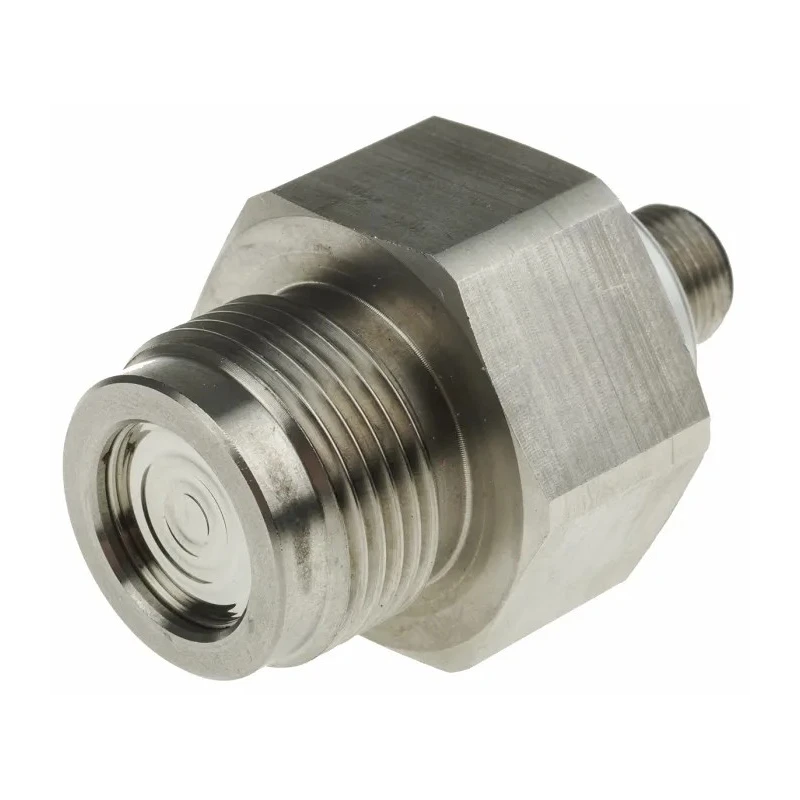

RS PRO Pressure Sensor Stainless Steel Housing Current Output 0 to 0.5 bar Relative Reading 828-5757

RS PRO 828-5757 Pressure Sensor is specifically engineered for industrial and mechanical engineering applications requiring accurate pressure measurement with current output. The stainless steel housing and diaphragm ensure excellent durability and media compatibility, making this sensor ideal for water and viscous fluid pressure monitoring.

This pressure sensor uses a piezo-resistive thick film ceramic sensor technology, providing an output range of 4-20 mA current corresponding to pressure from 0 to 0.5 bar. It offers precise relative pressure readings with an accuracy of ±0.25%, essential for critical control and measurement tasks in environmental engineering, automotive testing, pneumatics, and laboratory testing environments.

The compact and rugged design includes a stainless steel 303 housing, Viton O-ring seals, and a 316L stainless steel diaphragm, all delivering enhanced operational robustness. The device carries a CE compliance mark and is designed to withstand temperatures from -20°C to 125°C, supporting semi-flush mounting and an IP65 rating for protection against dust and water ingress.

Featuring a microprocessor-based amplifier, the sensor requires no manual adjustments, ensures stable output, and is temperature compensated and calibrated before shipment. It comes with traceable serial number and calibration data for assured quality. Installation is flexible due to its design and weight of 100 grams enables ease of handling and integration.

Typical industrial use cases include mechanical engineering systems, environmental and agricultural machinery, pneumatics, and laboratory instruments where precise and reliable pressure sensing is mandatory.

Employs piezo-resistive ceramic sensor for sensitivity and media compatibility. Compact stainless steel housing ensures durability and corrosion resistance. 4-20 mA current output for industrial process control integration.

Measurement range of 0 to 0.5 bar with high accuracy of ±0.25%. Operating temperature range from -20°C to 125°C suitable for varied environments. IP65 rated for protection against dust and water ingress. CE compliant to standard quality and safety requirements.

Flexible installation with semi-flush mount type. Long operational life exceeding 100 million cycles. Lightweight at 100 g, enabling easy mounting and handling. Explore a wide selection of Pressure Sensors including other RS PRO models and related automation and control gear products on EnvMart.
