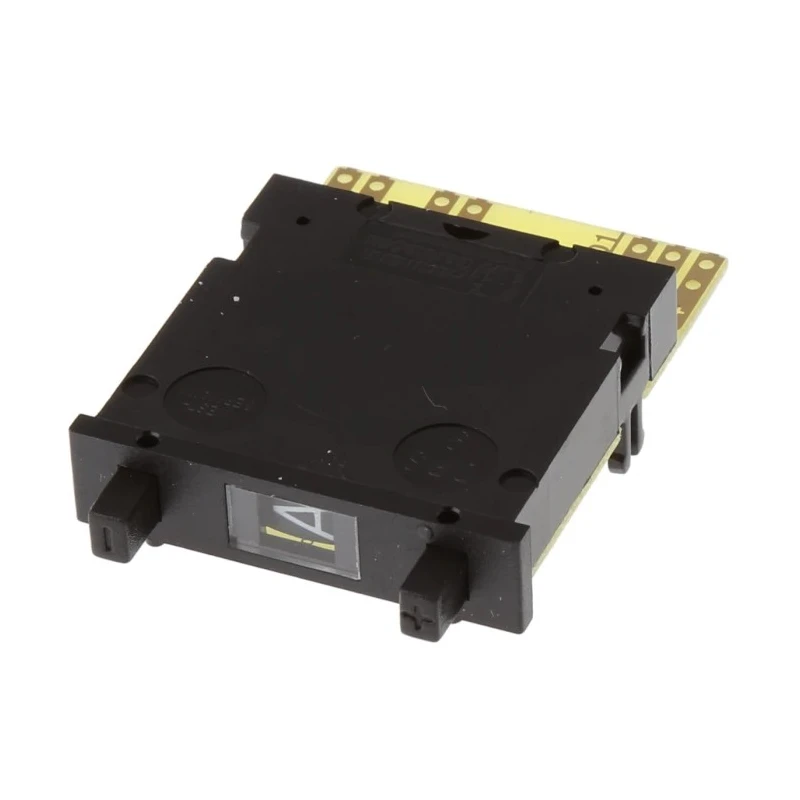

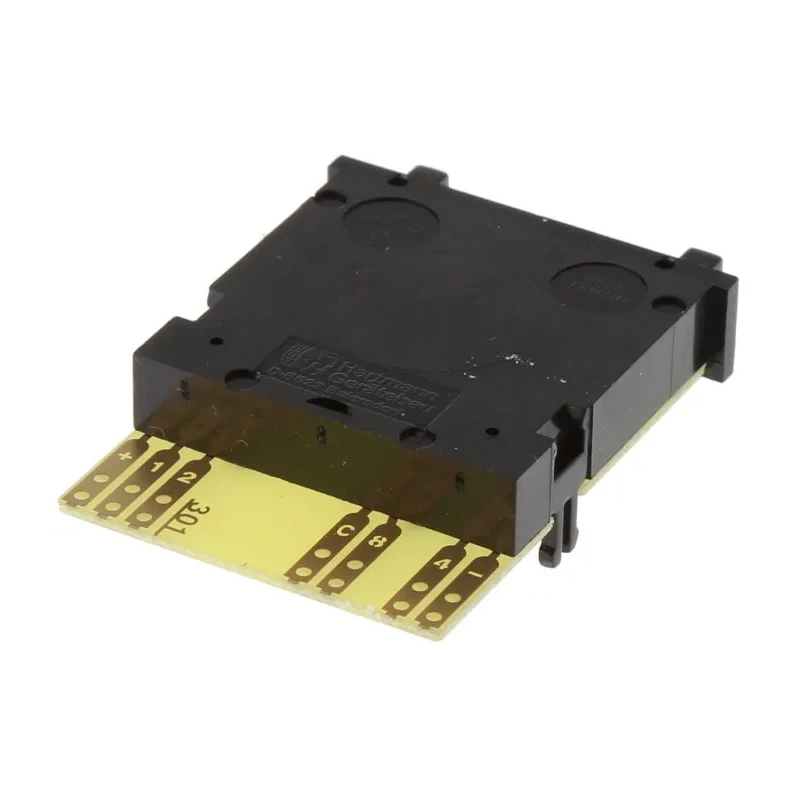

Hartmann Pushwheel Switch Hexadecimal Through Hole Panel 40V 100mΩ Contact Resistance 16 Way DPS9-301-AK2
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 40V |
| Brand | Hartmann |
| Model | DPS9-301-AK2 |
| Mount Type | Panel |
| Contact Material | Gold over Nickel Plated Copper Alloy |
| Series | DPS9 |
| Maximum Operating Temperature | 80°C |
| Number of Positions | 16 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | DIN, IEC |
| Mechanical Life | 1000000Cycles |
| Output Coding | Hexadecimal |
| Switch Readout | 0 to 9 A |
| Hartmann Pushwheel Switch BCD Through Hole Panel 100 mΩ 10 Way DPS9-141-AK2Brand | Hartmann |
| Solder Thumbwheel Switch Thumbwheel 1ΩBrand | APEM |
Key Features
- The switch features a hexadecimal output coding suitable for digital encoding.
- It includes 16 distinct positions for versatile setting options.
- Contact resistance is rated at 100 milliohms ensuring reliable low-resistance switching.
- Constructed with gold over nickel plated copper alloy contacts for durability and conductivity.
- Capable of operating between -20°C and 80°C for broad temperature tolerance.
- Designed for panel mounting with through-hole terminals to enable secure mechanical and electrical connections.
- Rated for operation at 40 volts, ideal for low voltage electronic circuits.
- Mechanical life expectancy is 1,000,000 cycles, supporting long-term reliability.
Product Description
Hartmann DPS9-301-AK2 Pushwheel Switch is a high-precision hexadecimal output pushwheel switch designed for panel mounting in industrial and electronic applications. Operating at 40 volts, this switch provides 16 selectable positions with reliable and low contact resistance of 100 mΩ. It is engineered for use in environments with temperatures ranging from -20°C to 80°C, ensuring robust performance under diverse conditions.
The switch uses gold over nickel plated copper alloy contacts to guarantee superior conductivity and durability during extended use. With a mechanical life rated at 1,000,000 cycles, it suits demanding applications requiring longevity.

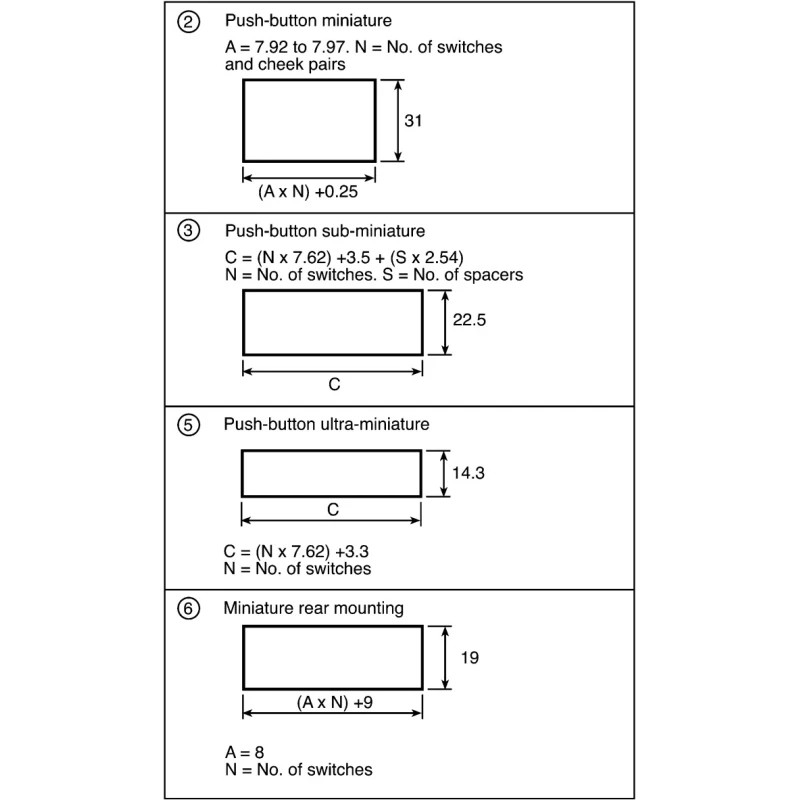

The terminal type is through-hole, offering secure mounting and soldering options for permanent installations. Its compact form factor measuring 33 mm in height, 8 mm in width, and 39.1 mm in depth makes it suitable for space-constrained panels.
This product complies with DIN and IEC industrial standards, making it reliable for use in various industrial sectors such as automation systems, control panels, instrumentation, and electronic equipment manufacturing.
The switch features a hexadecimal output coding for versatile signal encoding. It supports 16 distinct positions to cover extensive control functions. Gold over nickel plated copper alloy contacts provide high conductivity and resistance to corrosion.
Mechanical lifespan is one million cycles, supporting frequent operation. Operating temperature range from -20°C to 80°C allows use in challenging environments. Panel mount through-hole terminals ensure sturdy mounting and connectivity.
Compact size permits integration into confined panel spaces. Suitable for applications in electrical automation and instrumentation industries. Made in Germany, ensuring high-quality manufacturing standards. Includes snap-together format and available mounting cheeks for flexible installation.
This pushwheel switch is ideal for use in industrial automation, laboratory instrumentation, manufacturing control panels, and other settings requiring precise multi-position rotary switching. Browse EnvMart for more advanced Switches and electrical components by Hartmann and other leading brands to enhance your systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance is rated at 100 milliohms, ensuring reliable low-resistance switching.
It is rated for operation at 40 volts, making it suitable for low voltage electronic circuits.
This model features 16 distinct positions, allowing for versatile setting options.
The switch can operate in temperatures ranging from -20°C to 80°C, accommodating a broad range of environments.
The contacts are constructed from gold over nickel plated copper alloy, which enhances conductivity and durability.
It has a mechanical life expectancy rated at 1,000,000 cycles, supporting long-term reliability.
It features through-hole terminals, which enable secure mechanical and electrical connections for panel mounting.
This switch complies with DIN and IEC industrial standards, ensuring its reliability in various applications.
The dimensions are 33 mm in height, 8 mm in width, and 39.1 mm in depth, making it compact for space-constrained panels.
It is suitable for applications in industrial automation, laboratory instrumentation, and manufacturing control panels.
It is made in Germany, ensuring adherence to high manufacturing standards.
The switch features hexadecimal output coding, which is suitable for digital encoding.
