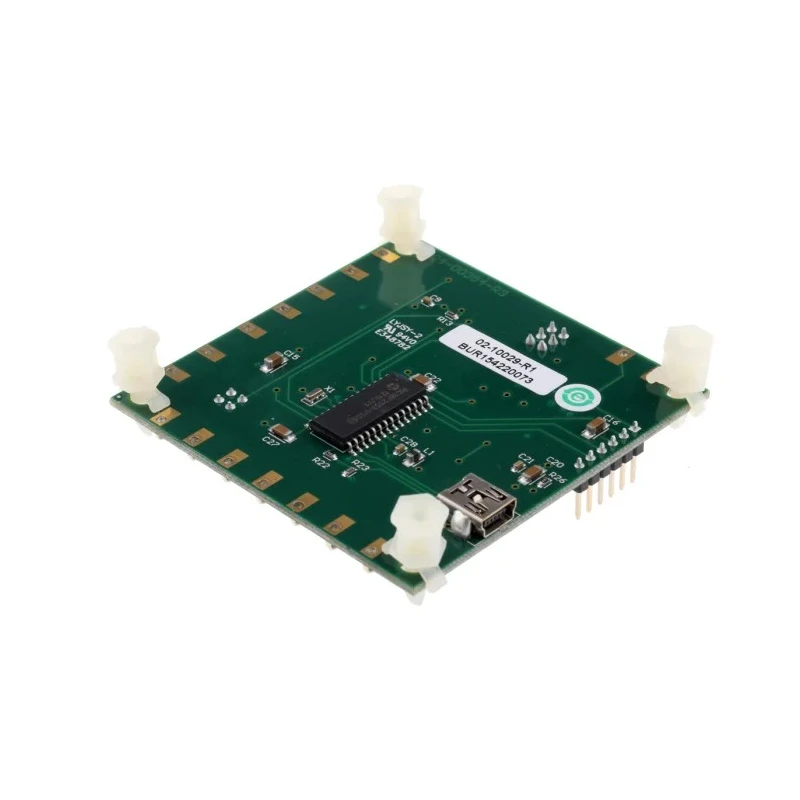

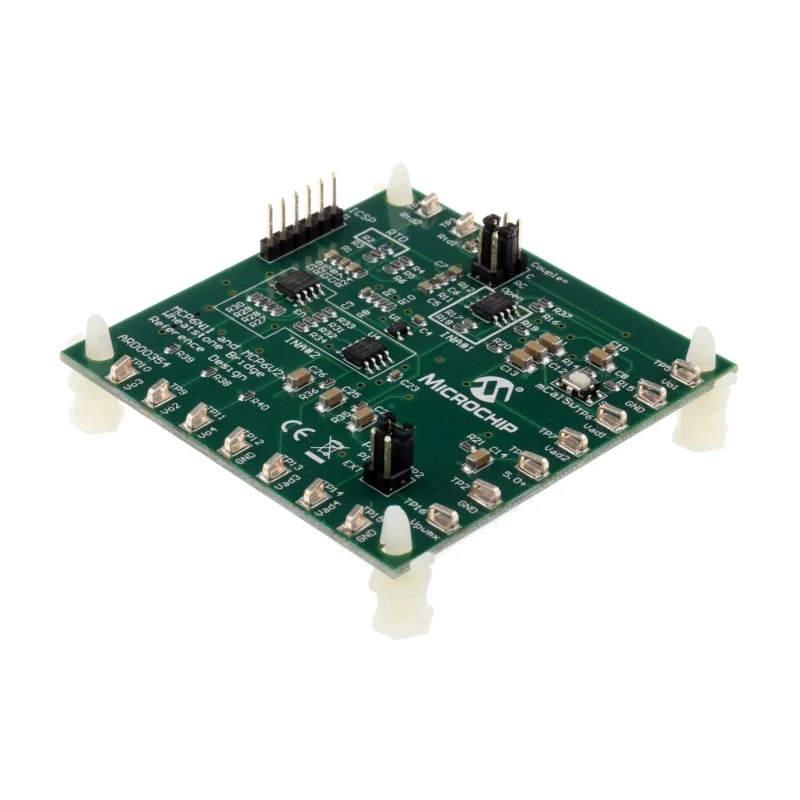

Microchip Analogue Development Kit Wheatstone Bridge Reference Design ARD00354 including MCP6V26 MCP6V27 MCP6N11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ARD00354 |
| Interfaces | USB Cable |
| Kit Classification | Reference Design |
| Featured Device | MCP6V26, MCP6V27, MCP6N11 |
| Analogue Function | Wheatstone Bridge |
Key Features
- The kit includes a Wheatstone bridge reference design for precise sensor measurements.
- Powered through USB connection for convenient PC interfacing.
- Includes 12-bit ADC for analog to digital signal conversion.
- Offers free Thermal Management Utility software for real-time data visualization and calibration.
- Demonstrates RTD temperature sensing applications in a Wheatstone bridge configuration.
- Compact board design enables easy integration and evaluation of Microchip instrumentation amplifiers.
- Includes USB cable and informational documentation for quick setup.
- Supports instrumentation amplifier MCP6N11 with low noise and high common-mode rejection ratio.
Product Description
Microchip ARD00354 Analogue Development Kit Wheatstone Bridge Reference Design integrates MCP6V26, MCP6V27, and MCP6N11 instrumentation amplifiers to provide an effective solution for sensor signal conditioning and measurement. This demo board allows users to test and evaluate the MCP6N11 instrumentation amplifier with ease. The kit is powered via USB and facilitates straightforward data collection on a PC.
The Wheatstone bridge configuration on the ARD00354 board is designed to deliver a small differential mode signal with a high common mode voltage, ideal for precise temperature sensing applications such as RTD sensors. The integrated 12-bit ADC converts the analog bridge output into digital data, enhancing usability and accuracy in measurements.
Microchip offers complimentary Thermal Management Utility software compatible with this development kit. This software manages USB communications, displays real-time strip charts of sensor data, and allows calibration and filtering adjustments on the embedded PIC microcontroller. The board’s design supports efficient signal conditioning and communication for instrumentation amplifiers.
Included in the package are the ARD00354 board, a USB cable for power and data interface, and an instructional information sheet to aid in setup and operation. This product is suitable for applications in electronic development, laboratory testing, and embedded systems engineering, focusing on sensor interfacing and analogue signal processing.
The Microchip ARD00354 Wheatstone Bridge Reference Design is an essential tool for professionals and engineers engaged in sensor development, instrumentation amplifier evaluation, and analogue signal conditioning tasks.
The kit includes a Wheatstone bridge reference design for precise sensor measurements. Powered through USB connection for convenient PC interfacing. Includes 12-bit ADC for analog to digital signal conversion. Offers free Thermal Management Utility software for real-time data visualization and calibration.
Demonstrates RTD temperature sensing applications in a Wheatstone bridge configuration. Compact board design enables easy integration and evaluation of Microchip instrumentation amplifiers. Includes USB cable and informational documentation for quick setup.
Supports instrumentation amplifier MCP6N11 with low noise and high common-mode rejection ratio. Explore Microchip development tools and analogue kits on EnvMart for advanced electronics prototyping and development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary function of the Microchip ARD00354 kit is to serve as a Wheatstone bridge reference design for precise sensor measurements, particularly for RTD temperature sensing applications.
The ARD00354 kit connects to a PC via a USB cable, which provides power and facilitates data communication.
The kit includes a 12-bit ADC that converts the analog output from the Wheatstone bridge into digital data, enhancing measurement accuracy.
The kit comes with complimentary Thermal Management Utility software, which allows for real-time data visualization, calibration, and filtering adjustments.
The specific dimensions and weight of the ARD00354 board are not provided in the available data.
The country of origin for the Microchip ARD00354 development kit is India.
This kit is suitable for applications in electronic development, laboratory testing, and embedded systems engineering, focusing on sensor interfacing and analogue signal processing.
The package includes the ARD00354 board, a USB cable for power and data interface, and an instructional information sheet for setup and operation.
The kit supports USB as its interface for power and data communication.
The Microchip ARD00354 kit is classified as a Reference Design, specifically for Wheatstone bridge applications.
