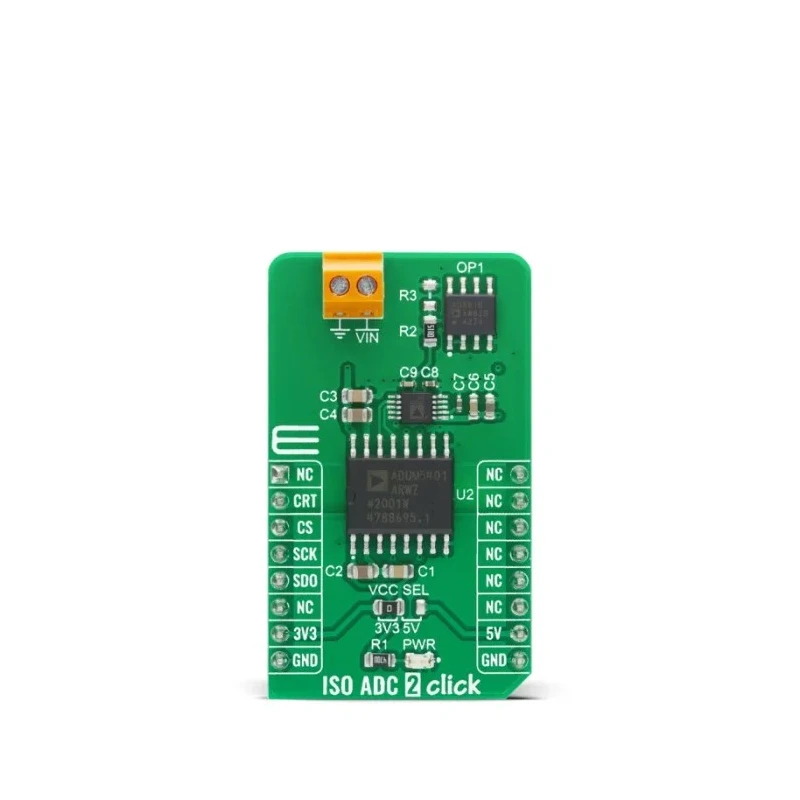

MikroElektronika Analogue Development Kit ISO ADC 2 Click 12 Bit ADC Add On Board for AD7091R MIKROE-4166
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-4166 |
| Interface Type | SPI Serial |
| For Use With | AD7091R |
| Kit Classification | Add On Board |
| Featured Device | AD7091R |
| Kit Name | ISO ADC 2 Click |
| Analogue Function | 12 Bit ADC |
Key Features
- This Click board operates with a single 3.3V supply for ease of use.
- Features AD7091R, a 12-bit successive-approximation ADC with an isolated DC-DC converter.
- Includes AD8616 level shifting and ADuM5401 output isolation components for signal integrity.
- Utilizes SPI serial interface for efficient data communication.
- Compact mikroBUS Click board size M (42.9 x 25.4 mm) for modular integration.
- Designed for use with AD7091R featured device for precise analogue-to-digital conversion.
- Ideal for development and evaluation in electronics, embedded systems, and industrial applications.
Product Description
MikroElektronika MIKROE-4166 ISO ADC 2 Click is a specialised analogue development kit designed to provide high-precision 12-bit analogue-to-digital conversion. This add-on board integrates the AD7091R analogue devices ADC and features isolated DC-DC conversion for improved noise immunity and accuracy in measurement applications. Operating from a single 3.3V power supply, the board incorporates three active components: AD8616 for level shifting, AD7091R ADC stage, and ADuM5401 for output isolation.
With an SPI serial interface type and mikroBUS Click board form factor size M (42.9 x 25.4 mm), it enables seamless integration with compatible hardware and rapid prototyping for embedded systems developers and electronic engineers. The isolated ADC improves the stability and precision of analogue signal measurements in environments where electrical noise or ground loops are a concern.
This board is perfectly suited for industrial, laboratory, and educational environments where accurate analogue data acquisition is required. Its add-on format and compact size make it a vital tool for development platforms requiring isolation and high-resolution ADC functionality.
Single-supply 3.3V operation simplifies integration. Contains AD7091R 12-bit ADC with isolated DC-DC conversion for accuracy. AD8616 level shifter and ADuM5401 isolation enhance signal quality. SPI serial interface supports fast and reliable data transfer.
Standard mikroBUS Click board size M allows modular system design. Suitable for precision electronics development and industrial applications. Supports AD7091R featured device usage for dedicated ADC functionality. Explore the comprehensive range of Analogue Development Kits and components on EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary function of this board is to provide high-precision 12-bit analogue-to-digital conversion using the AD7091R ADC.
It utilizes an SPI serial interface for efficient data communication.
This model operates with a single 3.3V power supply, simplifying integration into various systems.
The board has a compact size of 42.9 x 25.4 mm, which allows for modular integration into development projects.
The board includes the AD8616 level shifter, AD7091R ADC stage, and ADuM5401 for output isolation, enhancing signal integrity.
It is suitable for development and evaluation in electronics, embedded systems, and industrial applications requiring accurate analogue data acquisition.
The isolated DC-DC converter improves noise immunity and accuracy in measurement applications, making it ideal for environments with electrical noise.
This model is specifically designed for use with the AD7091R featured device for dedicated ADC functionality.
The MikroElektronika ISO ADC 2 Click is classified as an add-on board, designed for integration with other hardware.
The country of origin for this product is India.
It provides a 12-bit analogue function for precise analogue-to-digital conversion applications.
The ADuM5401 is used for output isolation, which enhances the stability and precision of analogue signal measurements.
