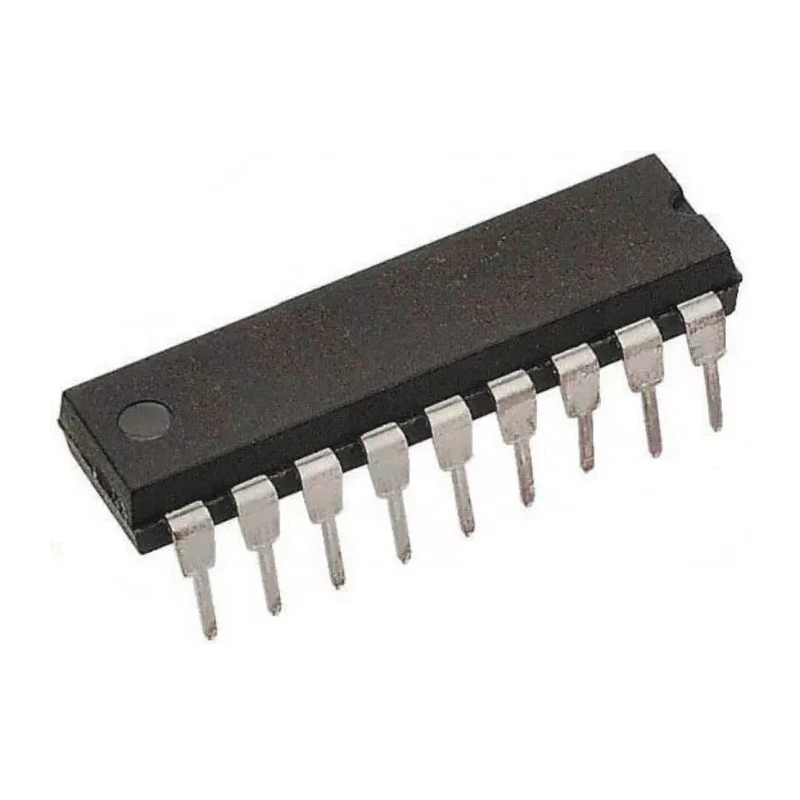

Analog Devices 2-Channel Line Transceiver CMOS Logic Function Through Hole PDIP 18-Pin ADM3222ANZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Analog Devices |
| Height | 5.33mm |
| Length | 23.37mm |
| Model | ADM3222ANZ |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | ADM3222 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver |
| Number Of Channels | 2 |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 1.2μs |
| Supply Current | 12mA |
| RS232 driver/receiver,ADM3222AN 2T/2RBrand | Analog Devices |
Key Features
- This transceiver supports 2 communication channels for data transmission.
- Operates with a minimum supply voltage of 3 volts and a maximum of 5.5 volts.
- Features a maximum propagation delay time of 1.2 microseconds ensuring timely signal processing.
- Designed to function in temperature ranges from -40°C to 85°C suitable for varied environments.
- Compact physical dimensions with length 23.37 mm, width 7.11 mm, and height 5.33 mm.
- Supply current is low at 12 mA, optimizing power efficiency.
- Utilizes single-ended input type compatible with standard line interfacing.
- Through-hole mount type PDIP package facilitates easy PCB installation.
Product Description
Analog Devices ADM3222ANZ is a high-performance 2-Channel Line Transceiver designed for RS-232 line driver and receiver applications. This IC features CMOS logic technology ensuring low power consumption with a supply current of 12 mA. It comes housed in a robust 18-pin PDIP package suitable for through-hole mounting, facilitating straightforward PCB assembly.
Operating voltage ranges from 3 V to 5.5 V, with the device performing reliably across temperature ranges spanning -40°C to 85°C. Its maximum propagation delay time of 1.2 microseconds ensures efficient data transmission suitable for industrial, telecommunications, instrumentation, and general electronic applications.
With physical dimensions measuring 23.37 mm long, 7.11 mm wide, and 5.33 mm high, the compact design supports dense circuit layouts. The device supports 2 channels with single-ended input, optimized for line transmitting and receiving functions compliant with RS-232 standards.
This line transceiver is ideal for use in communication systems requiring reliable, low power line interface solutions. It is not intended for automotive use and does not carry specific automotive standards or approvals.
This transceiver supports 2 communication channels for data transmission. Operates with a minimum supply voltage of 3 volts and a maximum of 5.5 volts. Features a maximum propagation delay time of 1.2 microseconds ensuring timely signal processing.
Designed to function in temperature ranges from -40°C to 85°C suitable for varied environments. Compact physical dimensions with length 23.37 mm, width 7.11 mm, and height 5.33 mm. Supply current is low at 12 mA, optimizing power efficiency.
Utilizes single-ended input type compatible with standard line interfacing. Through-hole mount type PDIP package facilitates easy PCB installation. Non-automotive standard device intended primarily for electronic communications equipment.
Explore more line transceivers and interface ICs in this category on EnvMart.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 3 volts and a maximum of 5.5 volts.
The maximum propagation delay time is 1.2 microseconds, ensuring timely signal processing.
It is designed to function in temperature ranges from -40°C to 85°C, making it suitable for varied environments.
This unit supports 2 communication channels for data transmission.
It utilizes a single-ended input type, compatible with standard line interfacing.
The transceiver has a length of 23.37 mm, a width of 7.11 mm, and a height of 5.33 mm.
The supply current is low at 12 mA, optimizing power efficiency.
It comes in a PDIP package type, suitable for through-hole mounting.
No, this transceiver is not intended for automotive use and does not carry specific automotive standards or approvals.
The ADM3222ANZ belongs to the CMOS logic family, ensuring low power consumption.
This model features an 18-pin configuration.
It is designed for RS-232 line driver and receiver applications, suitable for industrial, telecommunications, and instrumentation uses.
