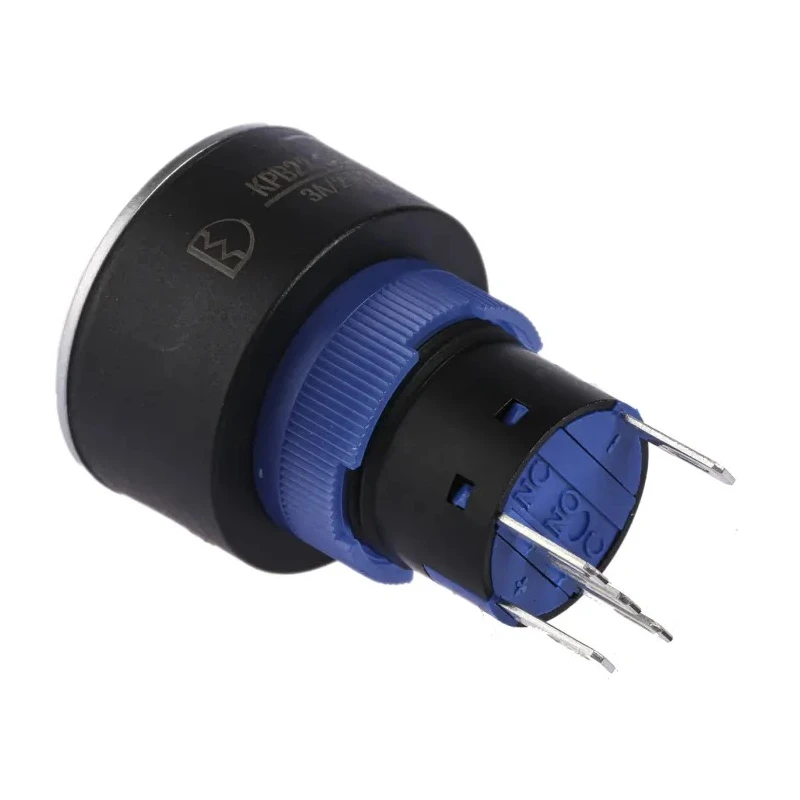

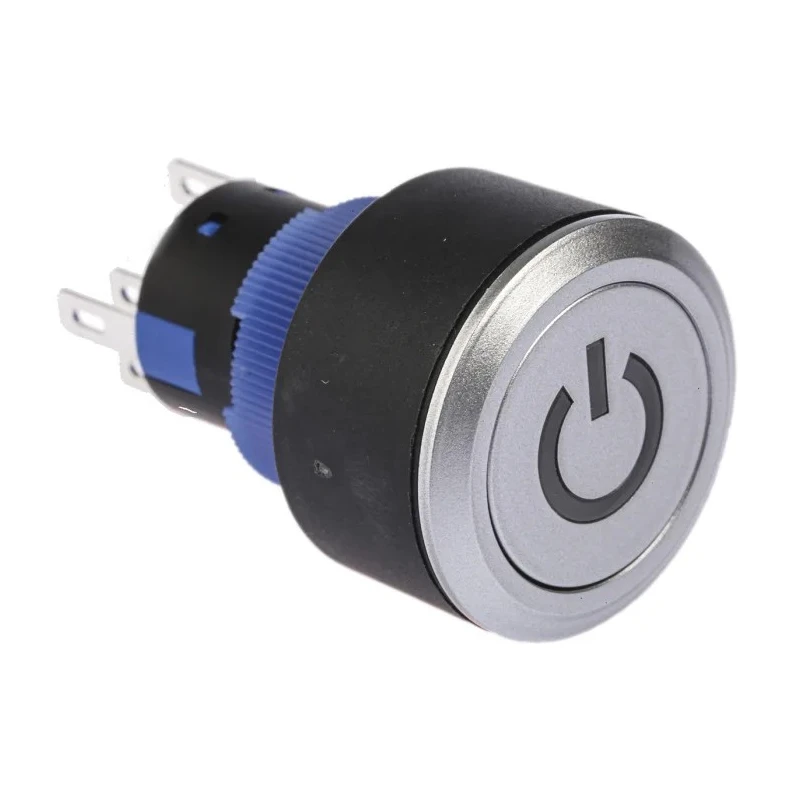

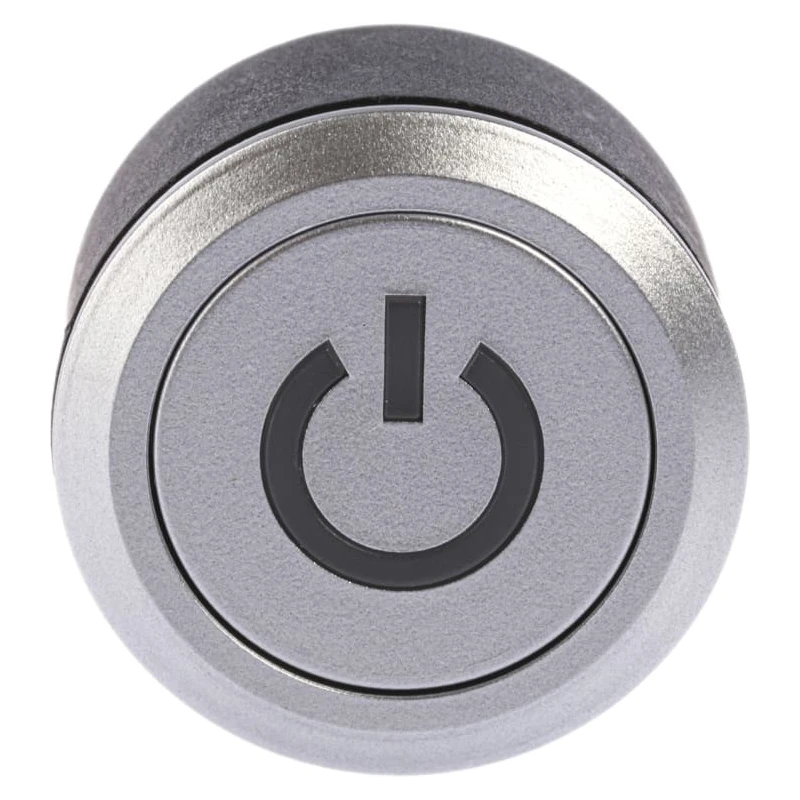

RS PRO Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.2 mm Cutout, SPDT Contact, Red LED, IP65, 36V KPB22
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | KPB22 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | KPB22 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V, UL 94 V0 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
Key Features
- The switch has a silver actuator color with a flat style for easy pressing.
- Designed for panel mounting with solder terminal type for secure connectivity.
- Operates reliably between -35°C to 70°C for diverse industrial environments.
- Supports contact voltages of 36 V dc and 250 V ac with a contact current rating of 5 A.
- Complies with UL 94 V and UL 94 V0 standards for safety and durability.
- Features a power symbol legend for clear identification.
- IP65 rated for protection against dust ingress and water jets.
- Suitable for use in communication equipment, wireless devices, measuring instruments, automation, office, and industrial equipment.
Product Description
RS PRO KPB22 series illuminated push button switch is a high-quality momentary switch designed for panel mounting applications. It features a 22.2 mm panel cutout, SPDT (Single Pole Double Throw) contact configuration, and a silver flat actuator with a red LED illumination, ensuring clear visual indication.
Constructed with a lightweight plastic cover with a carved pattern and a silver metal cap, this switch is IP65 rated, providing excellent protection against dust and water jets, making it ideal for demanding industrial environments. The switch is suitable for operation across a temperature range from -35°C to 70°C, ensuring dependable performance.
This switch supports a maximum contact DC voltage of 36 V and AC voltage of 250 V with a switch contact current of 5 A. It meets UL 94 V and UL 94 V0 safety standards, assuring robustness and quality compliance. The power symbol legend on the switch makes it easily identifiable in panel installations.
Its applications span various fields, including communication equipment, wireless application equipment, electronic measuring instruments, automation equipment, office equipment, and a broad spectrum of industrial machines. The solder terminal type provides reliable electrical connections.
The switch has a silver actuator color with a flat style for ergonomic operation. Designed for panel mounting with a 22.2 mm cutout dimension. Illuminated with a red LED for clear status indication. IP65 certification ensures resistance to dust and water jets.
Compatible with 36V dc and 250V ac contact voltages. Switch contact current rated at 5A, suitable for industrial use. Compliant with UL 94 V and UL 94 V0 flammability standards. Suitable for a wide range of industrial and commercial applications.
The RS PRO KPB22 series illuminated push button switch provides a reliable and professional solution for demanding electrical and automation needs. Browse EnvMart for more push button Switches and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
It can operate reliably at temperatures up to 70°C, making it suitable for various industrial environments.
This switch has an IP65 rating, providing protection against dust ingress and water jets.
It supports a maximum contact DC voltage of 36V and an AC voltage of 250V.
The switch has a contact current rating of 5A, suitable for various applications.
It features solder terminals, ensuring secure and reliable connectivity.
The switch requires a panel cutout size of 22.2 mm for proper installation.
It has a flat actuator style, designed for easy pressing and ergonomic operation.
The switch complies with UL 94 V and UL 94 V0 standards, ensuring safety and durability.
The minimum operating temperature for this model is -35°C, allowing for use in colder environments.
It is suitable for use in communication equipment, wireless devices, measuring instruments, and various industrial applications.
The switch features a red LED illumination, providing clear visual indication of its status.
