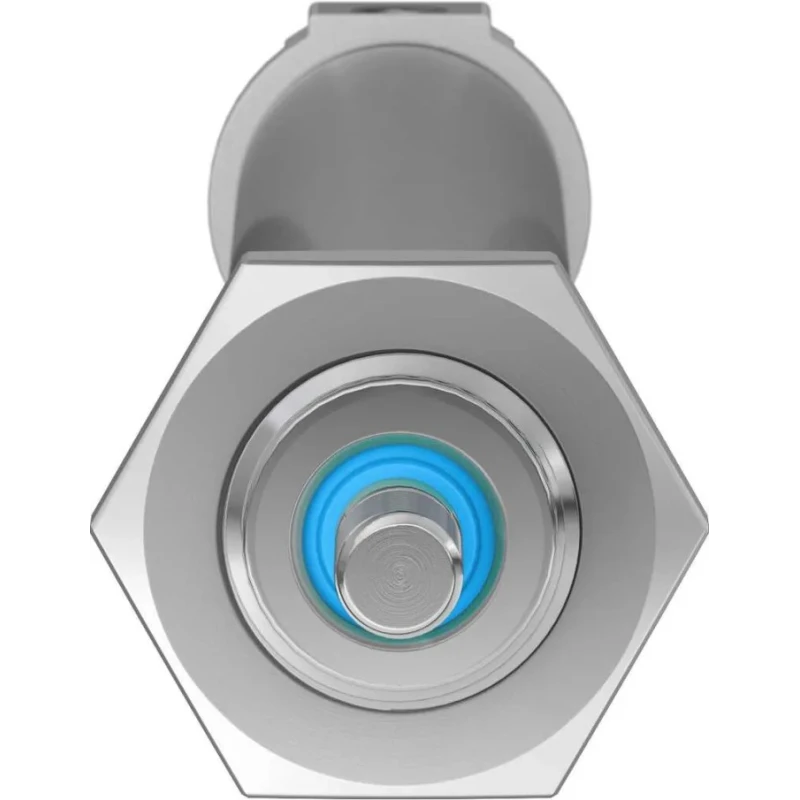

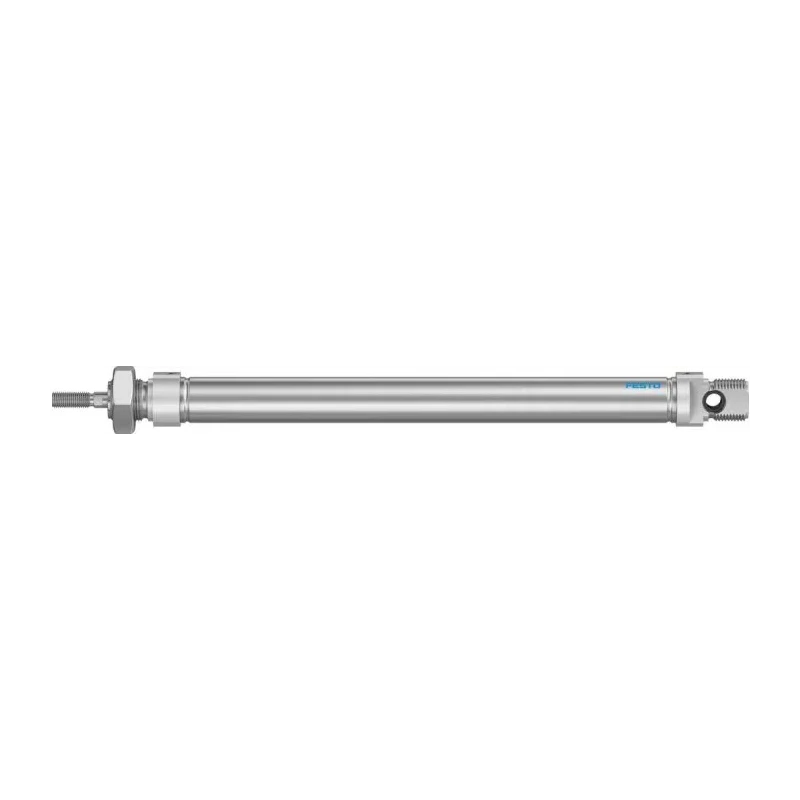

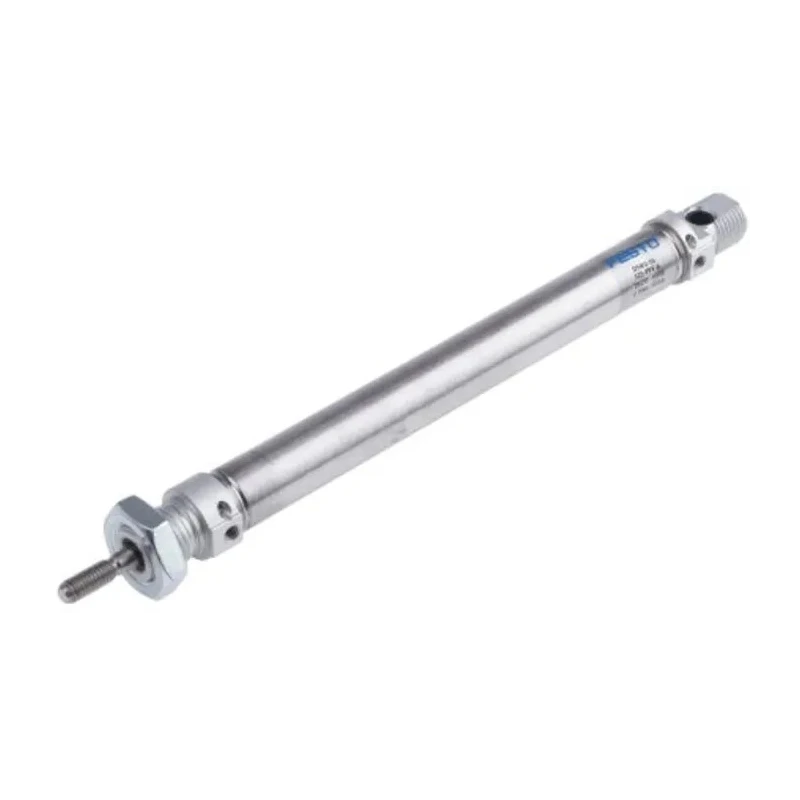

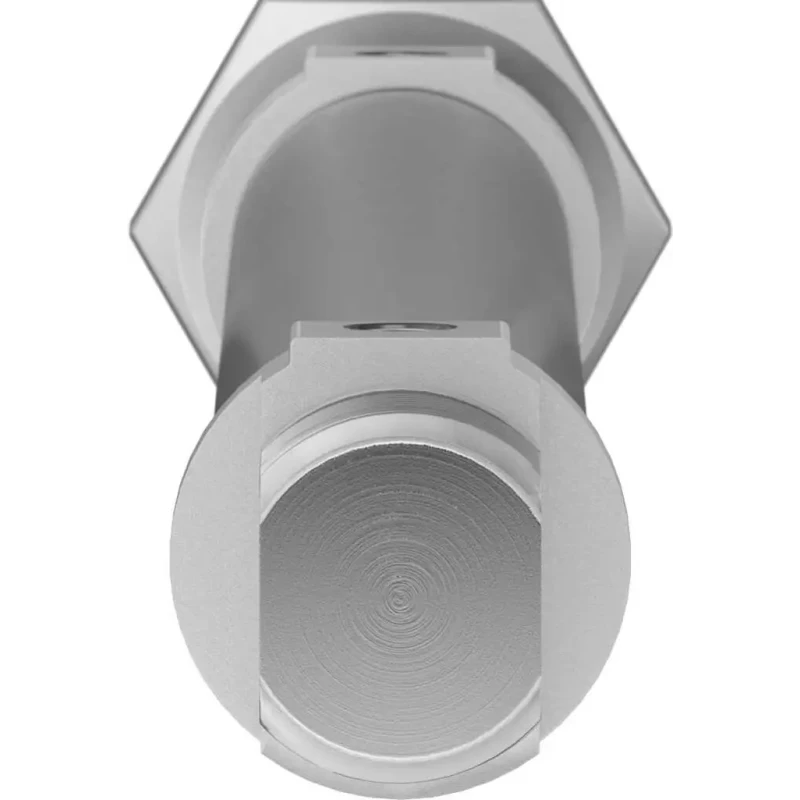

Festo DSNU-16-150-P-A Pneumatic Cylinder, 150mm Stroke, 16mm Bore, Double Acting, Through Hole Mount, Aluminium Body
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Length | 261mm |
| Model | DSNU-16-150-P-A |
| Mount Type | Through Hole |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Connection port | M5 Pneumatic Connection |
| Stroke Length | 150mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | CETOP RP 52 P, ISO 6432, RoHS |
| Cushioning Type | Elastomer |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
| • The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
Key Features
- Double acting pneumatic cylinder for reliable linear motion.
- Features a 150mm stroke and a piston diameter of 16mm.
- Constructed with a corrosion-resistant aluminium body and stainless steel piston rod.
- Flexible elastomer cushioning rings ensure smooth operation and energy absorption at both ends.
- Through hole mounting design allows versatile installation in any position.
- Male M5 threaded piston rod offers secure connection for automation setups.
- Conforms to ISO 6432 metric cylinder mounting standards.
- Maximum operating temperature of 80°C supports demanding applications.
Product Description
Festo DSNU-16-150-P-A is a precision pneumatic cylinder engineered for industrial automation and pneumatic actuation. It features a 16mm bore diameter and a 150mm stroke, offering reliable double acting motion for advancing and retracting linear operations. The robust aluminium construction ensures durability and corrosion resistance, making it ideal for a broad range of manufacturing and mechanical environments.
The DSNU series is designed with flexible elastomer cushioning rings integrated at both ends of the cylinder barrel, effectively absorbing energy and minimizing impact during operation. This promotes smooth motion and reduces wear, resulting in a longer service life. The stainless steel piston rod, with a male M5 thread, provides secure connection and compatibility with various automation assemblies. The cylinder’s single rod design delivers precise and repeatable movement for machinery and process control.
Mounting flexibility is enhanced through the through hole mount, permitting installation in any position and supporting diverse industrial applications. The DSNU-16-150-P-A conforms to ISO 6432 standards, ensuring standardized metric mounting dimensions and global interchangeability with other pneumatic systems. Operating temperatures up to 80°C enable deployment in demanding production environments, while the maximum stroke length and piston rod specifications offer versatility across small-load and low-speed tasks.
The cylinder is suitable for a wide variety of applications including machinery actuation, process equipment, packaging, and automated assembly lines. Optional accessories support further installation options such as swivel brackets or foot mounts for specialized setups. Its design structure consists of a piston, piston rod, and cylinder barrel, all constructed from high-quality materials for consistent performance.
Industries commonly utilizing the Festo DSNU-16-150-P-A pneumatic cylinder include industrial automation, manufacturing, HVAC actuation, robotics, laboratory equipment, and material handling systems, offering reliable and precise linear motion as required for operational excellence.
Explore more in the 'Pneumatic Cylinder' category and discover additional Festo solutions for advanced pneumatic automation at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 150mm.
It has a bore diameter of 16mm.
The body is made of aluminium, and it features a stainless steel piston rod.
It is equipped with flexible elastomer cushioning rings that absorb energy and minimize impact at both ends, promoting smooth operation.
This model features a through hole mounting design, allowing for versatile installation in any position.
The maximum operating temperature is 80°C.
The piston rod has a male M5 threaded connection for secure attachment.
It conforms to CETOP RP 52 P, ISO 6432, and RoHS standards.
The length of this cylinder is 261mm.
It is a double acting pneumatic cylinder, allowing for both advancing and retracting motion.
This pneumatic cylinder is suitable for machinery actuation, process equipment, packaging, and automated assembly lines.
The design structure consists of a piston, piston rod, and cylinder barrel.
