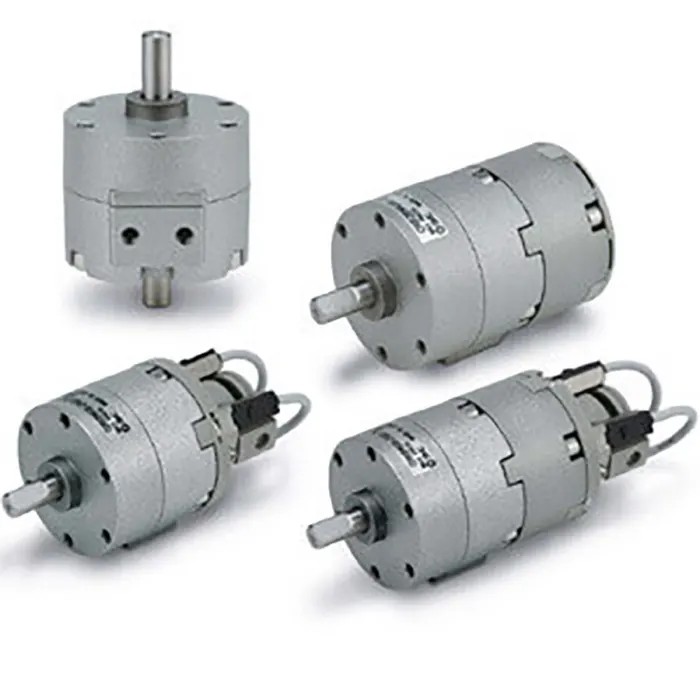

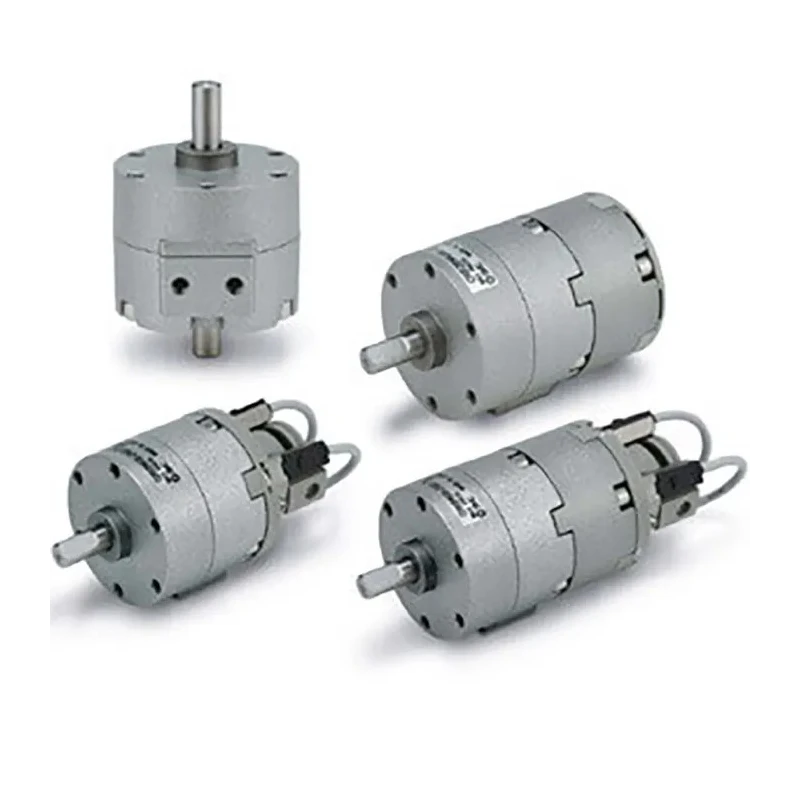

SMC Pneumatic Rotary Actuator Double Acting, 0.7 MPa, 15mm Bore CRB2

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Rotary Actuator Double Acting, 0.7 MPa, 15mm Bore CRB2



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	34mm
Length	39.5mm
Model	CRB2
Gross Weight	46g
Series	CRB2
Maximum Operating Temperature	60°C
Sub Type	Single Vane
Minimum Operating Temperature	5°C
Bore Diameter	15mm
Shaft Type	Double Shaft
Action Type	Double Acting
Standards/Approvals	RoHS
Cushioning Type	Rubber Bumper
Port Thread Size	M3 x 0.5
Maximum Axial Force	40N
Maximum Radial Force	15N

Key Features

Rotary actuator designed for precise pneumatic applications.
Double acting action ensures bidirectional rotary movement.
15mm bore diameter optimal for compact mechanical systems.
Maximum operating pressure of 0.7 MPa for industrial reliability.
Features rubber bumper cushioning for smooth operation.
Single vane sub type for efficient torque transmission.
Supports axial force up to 40N and radial force up to 15N.
Operates within a temperature range of 5°C to 60°C.

Product Description

The SMC CRB2BW15-270SZ is a high-performance double acting pneumatic rotary actuator, specifically engineered for mechanical and automation systems where precise rotational movement is essential. Integrating the CRB2 Series technology, this actuator offers robust bidirectional turning through a single vane mechanism.

Key highlights include a 15mm bore diameter, enabling compact installation without sacrificing power. The actuator's maximum operating pressure of 0.7 MPa ensures operational reliability across demanding industrial applications. Rubber bumper cushioning mitigates impact forces during actuation, enhancing smoothness and reducing wear.

Designed for durability, this model supports axial forces up to 40N and radial forces up to 15N, making it suitable for actuating valves, robotic arms, or any equipment requiring controlled rotation. The operating temperature range of 5°C to 60°C allows for use in varied environments, including manufacturing lines, assembly automation, and material handling systems.

Connectivity is secured by a standard port thread size of M3 x 0.5. The actuator is RoHS compliant, guaranteeing environmental standards are met. It has a compact length of 39.5mm and height of 34mm, allowing for efficient use of space and easy integration into system layouts.

Typical applications include pneumatic cylinder-driven mechanisms, process automation equipment, machine build, and laboratory instrumentation where compact size, precision, and reliability are crucial. The standard CRB2 Series design features piping ports located on the flat surface for simplified assembly and maintenance.

SMC offers many variations of shaft-end shape, ensuring optimal fit for specialized requirements. This actuator is manufactured in Japan, reflecting high-quality engineering and strict compliance with international standards. Its low weight of 46g further facilitates installation and use in lightweight assemblies.

This product is ideal for engineers and designers focused on industrial, laboratory, and automation projects requiring high-quality rotary actuation. Explore more pneumatic actuators and automation solutions in the Pneumatic Cylinder category and browse SMC’s premium range on EnvMart.
