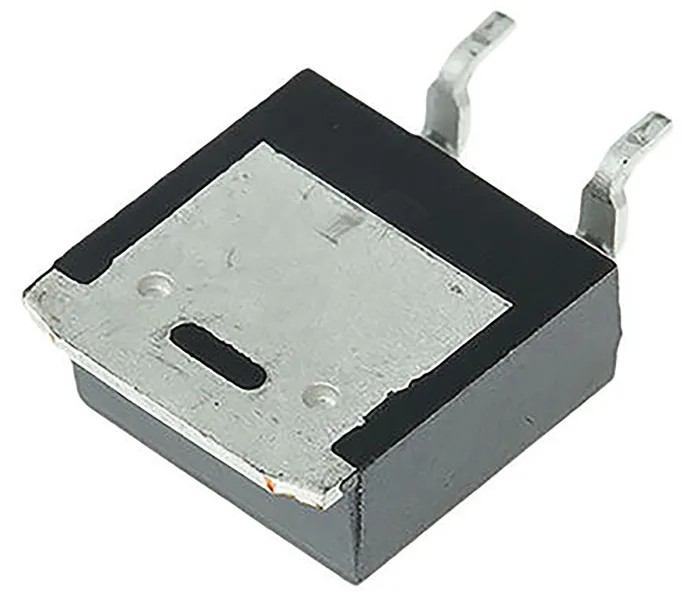

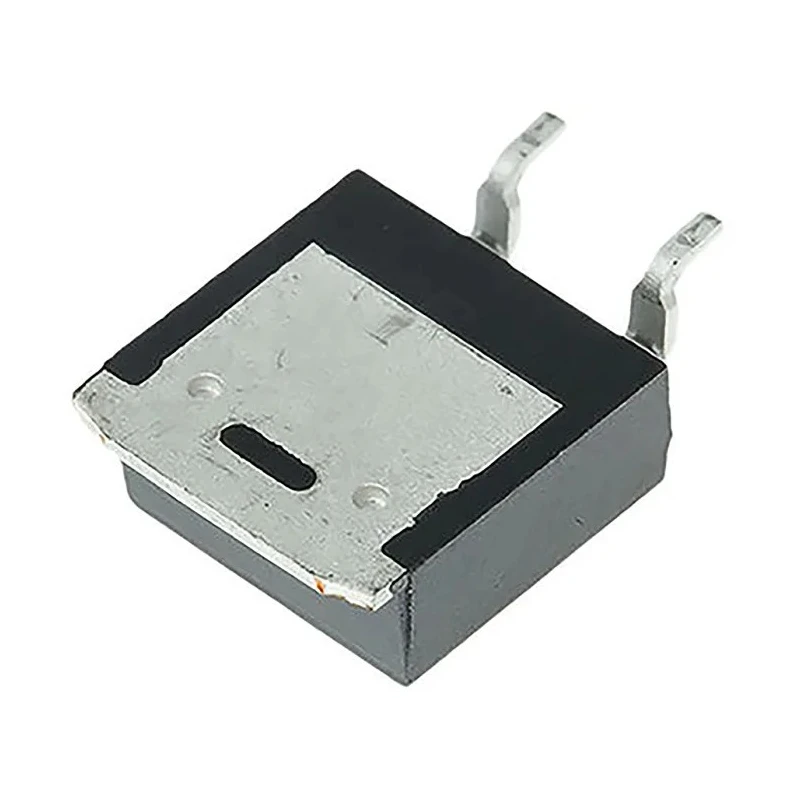

onsemi Type N-Channel Ignition IGBT 21 A 430 V 3-Pin TO-252 Surface Mount ISL9V3040D3ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | ISL9V3040D3ST |
| Mount Type | Surface |
| Series | EcoSPARK |
| Energy Rating | 300mJ |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 21A |
| Maximum Collector Emitter Voltage Vceo | 430V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.2V |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 150W |
| Maximum Gate Emitter Voltage VGEO | ±10 V |
Key Features
- The device features a 3-pin TO-252 surface mount package.
- Maximum power dissipation is 150 W, suitable for high-power applications.
- Rated for operating temperatures from -40°C to 175°C allowing wide thermal range.
- Designed with a maximum switching speed of 1 MHz for fast switching performance.
- Compliant with RoHS standards ensuring environmental safety.
- Includes automotive standard AEC-Q101 for reliability in automotive applications.
- Maximum gate-emitter voltage rating is ±10 V providing robust gate control.
- Maximum collector-emitter saturation voltage is 2.2 V ensuring low conduction losses.
Product Description
onsemi ISL9V3040D3ST is a Type N-Channel Ignition IGBT semiconductor designed for high efficiency and reliable switching in power electronics applications. It supports a maximum continuous collector current of 21 A and withstands collector-emitter voltages up to 430 V. Packaged in a 3-pin TO-252 surface mount format, this IGBT is optimized for compact PCB mounting and effective thermal management.
This device dissipates up to 150 W of power, making it suitable for demanding ignition and power control circuits. It operates reliably across a wide temperature range from -40°C to 175°C, allowing use in various environmental conditions. The 1 MHz switching speed facilitates high-frequency applications requiring fast electronic switching.
Conforming to RoHS regulations, the ISL9V3040D3ST ensures reduced environmental impact by eliminating hazardous substances. It meets automotive standards by complying with AEC-Q101, guaranteeing durability and performance in automotive electronic systems.
With a maximum gate-emitter voltage tolerance of ±10 V and a low saturation voltage of 2.2 V, the device strikes a balance between control precision and conduction efficiency. It features an energy rating of 300 mJ tailored for ignition pulse energy requirements typical in ignition systems.
This ignition IGBT is ideal for use in industrial power supplies, automotive ignition systems, and various electronic control modules demanding reliable high-current switching performance.
The device features a 3-pin TO-252 compact surface mount package. Maximum continuous collector current rated at 21 A. Voltage rating of up to 430 V for high-voltage switching tasks. High power dissipation capacity of 150 W ensures thermal reliability.
Wide operating temperature range from -40°C to 175°C supports harsh conditions. Fast switching speed of 1 MHz enhances efficiency in power circuits. Energy rating of 300 mJ designed for ignition pulse applications. Automotive AEC-Q101 certified for high reliability in automotive use.
Compliant with RoHS directives for environmental safety. Low collector-emitter saturation voltage of 2.2 V minimizes conduction losses. Explore a wide range of semiconductors and discrete components in the Electronics & Electricals category at EnvMart for your industrial and automotive project needs.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for the ISL9V3040D3ST is rated at 21 A.
This model can withstand a maximum collector-emitter voltage of 430 V.
The ISL9V3040D3ST has a maximum power dissipation capacity of 150 W.
It operates reliably across a wide temperature range from -40°C to 175°C.
The maximum switching speed of this model is 1 MHz, suitable for fast switching applications.
This IGBT is packaged in a 3-pin TO-252 surface mount format.
The ISL9V3040D3ST complies with the automotive standard AEC-Q101 for reliability in automotive applications.
The maximum gate-emitter voltage rating for this IGBT is ±10 V.
The maximum collector-emitter saturation voltage is 2.2 V, which helps minimize conduction losses.
Yes, it is compliant with RoHS standards, ensuring reduced environmental impact.
The energy rating of the ISL9V3040D3ST is 300 mJ, designed for ignition pulse applications.
The ISL9V3040D3ST is manufactured in India.
