| Country of Origin | China |
|---|---|
| Diameter | 1.2mm |
| Brand | Vishay |
| Height | 1.2mm |
| Length | 2mm |
| Model | MCL4151-TR |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | MCL4151 |
| Maximum Operating Temperature | 175°C |
| Case | DO-204AL, molded epoxy over glass body |
| Package Type | MicroMELF |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Pin Count | 2 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 200mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 50V |

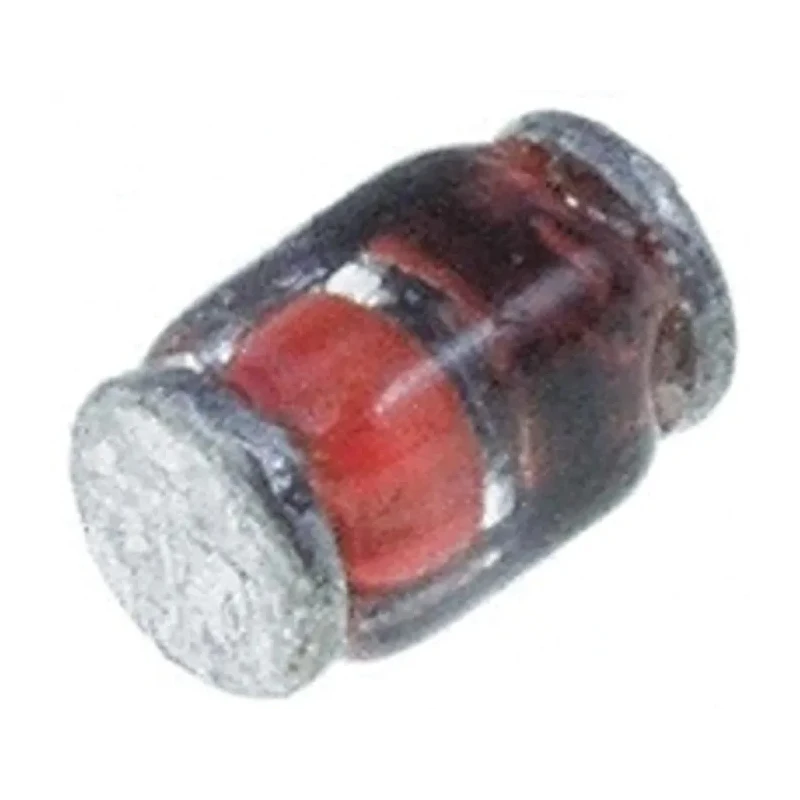

Vishay MCL4151-TR is a silicon junction switching diode housed in a compact 2-pin MicroMELF surface mount package. Rated for a maximum forward current of 200 mA and peak reverse voltage of 50 V, it offers fast switching with a reverse recovery time of only 4 ns. The diode features a glass passivated junction that provides excellent reliability and low leakage current below 0.2 µA, making it ideal for high voltage rectification and snubber circuits.
This diode's peak non-repetitive forward surge current is rated at 2 A, ensuring it can handle transient loads safely. The operating temperature range from -65°C up to 175°C allows deployment in demanding industrial and electronic environments.
The case is made of a molded epoxy over glass body, classified under DO-204AL with a height, width, and diameter of approximately 1.2 mm, and a length of 2 mm. Matte tin plated leads are solderable according to J-STD-002 and JESD 22-B102 standards. The diode polarity is clearly marked with a color band denoting the cathode end for straightforward assembly.
Typical applications include high voltage rectification of G2 grid CRT and TV circuits as well as snubber circuits for camera flashes. The device is commercial grade, RoHS compliant, and conforms to JESD 201 class 1A whisker test standards.
This product is manufactured in China and does not carry additional automotive or special approval standards. Compact MicroMELF surface mount package enhances PCB space efficiency. High reliability with cavity-free glass-passivated junction and superectifier structure.
Low leakage current and low forward voltage drop optimize efficiency. Wide operating temperature range for versatile industrial applications. Solder dip 275°C max for 10 seconds ensures compatible manufacturing processes.
Compliance with multiple JEDEC standards for solderability and reliability. Color band polarity marking simplifies identification and assembly. Ideal for use in switching, rectification, and snubber circuit applications.
