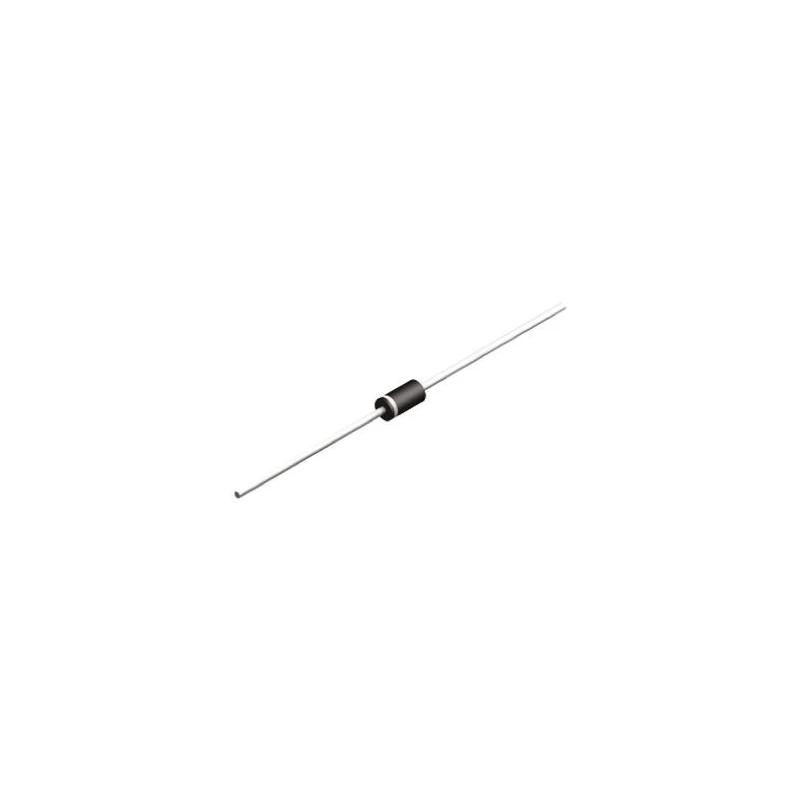

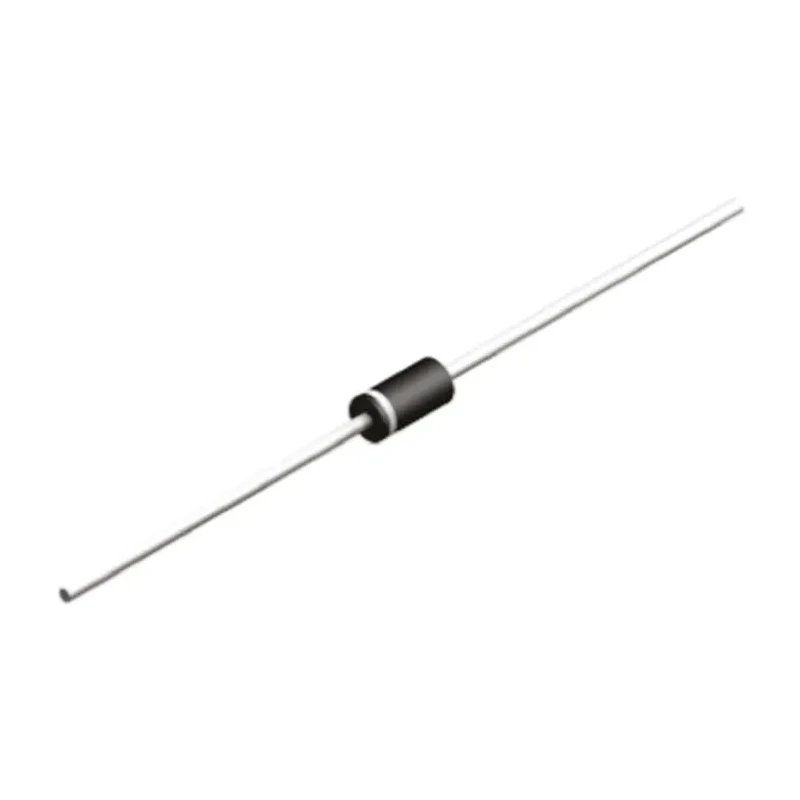

onsemi Silicon Junction Diode, Single Configuration, 1 A Maximum Forward Current, 50 V Peak Reverse Voltage, DO-41 1N4006RLG

onsemi 1N4006RLG is a reliable silicon junction diode designed for Discrete Semiconductor applications requiring standard recovery characteristics. This single diode configuration supports a maximum forward current of 1 A and can withstand a peak reverse voltage of 50 V, making it suitable for various general-purpose low-power electronic circuits.

The device is housed in a DO-41 package which is epoxy molded for corrosion resistance and durability, with terminal leads designed for efficient through-hole PCB mounting. Its small form factor includes a length of 54.9 mm and a 2.7 mm diameter, facilitating compact circuit designs.

The diode supports a wide operating temperature range from -65 °C to 175 °C, allowing it to perform reliably in harsh environmental conditions. With a maximum forward voltage drop of 1.1 V, this diode offers efficient rectification and low power loss.

The 1N4006RLG diode is engineered to handle a peak non-repetitive forward surge current of 30 A, providing robustness against transient current spikes typically found in power supply circuits.

The cathode side is clearly marked by a polarity band for accurate installation and minimization of circuit errors. The lead temperature rating of up to 260 °C for 10 seconds ensures compatibility with common soldering processes.

This diode is commonly used in high frequency inverters, free wheeling, and polarity protection applications in industrial, commercial, and laboratory electronics. Its corrosion-resistant case and solderable leads extend its suitability to manufacturing environments that demand durability and performance consistency.

Designed for general purpose low power electronic applications. Epoxy molded case ensures external corrosion resistance. Terminal leads are readily solderable for easy PCB mounting. Maximum forward voltage is 1.1 V ensuring efficient rectification.

Operating temperature range from -65 to 175 °C for versatile thermal performance. Peak non-repetitive forward surge current of 30 A for transient conditions. Cathode is indicated by a polarity band for correct orientation.

Compact size with 54.9 mm length and 2.7 mm diameter for space-saving circuit design. Suitable for use in high frequency inverters, free wheeling, and polarity protection diodes. Lead temperature for soldering up to 260 °C for 10 seconds ensures robust assembly.

Explore further power semiconductors and discrete devices from onsemi at EnvMart to enhance your electronic design and manufacturing projects.
