| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | J113 |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Sub Type | JFET |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Drain Source Resistance Rds | 100Ω |
| Maximum Power Dissipation Pd | 625mW |
| Maximum Gate Source Voltage Vgs | -35V |
| Drain Source Current Ids | 2 mA |

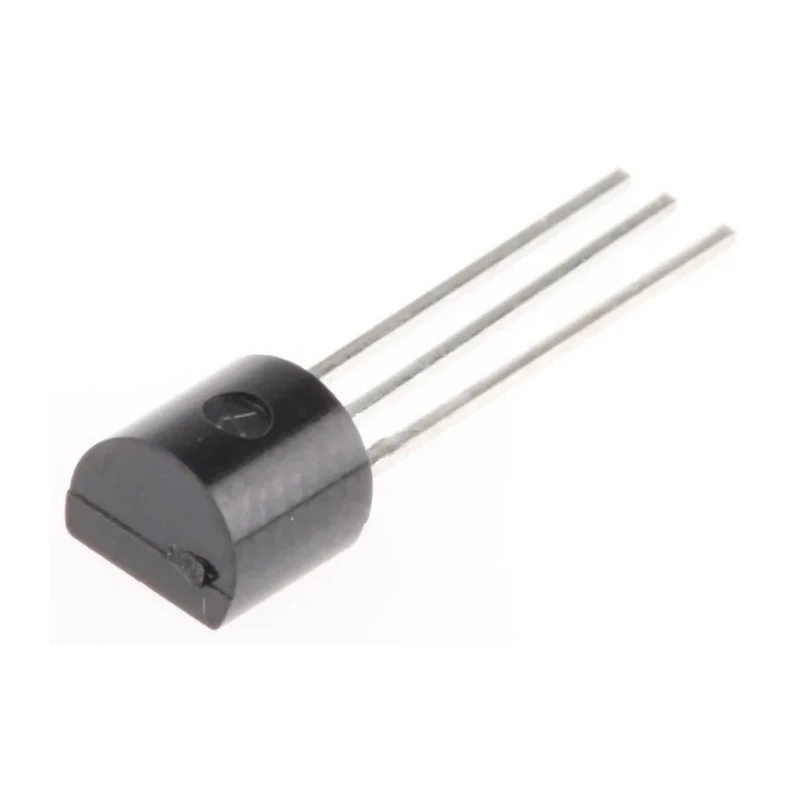

onsemi J113 is a Single N-Channel JFET-Channel JFET transistor packaged in a 3-pin TO-92 format, designed for through hole installation. It supports a drain source current of 2 mA and operates over a wide temperature range from -55°C to 150°C, making it suitable for robust industrial and laboratory applications.
This device offers a maximum power dissipation of 625 mW and a maximum drain source resistance of 100 ohms, making it efficient for signal amplification and switching in semiconductor circuits.
Its compact dimensions (length 5.2 mm, width 4.19 mm, height 5.33 mm) and single configuration make it ideal for use in precision electronic equipment and general semiconductor discrete component applications.
The maximum gate source voltage of -35V allows it to handle typical control voltages safely.
Commonly applied in electronic circuits requiring low noise, high input impedance, and stable operation, it finds use in industrial electronics, measurement devices, and embedded system design.
The transistor has a maximum power dissipation rating of 625 mW. It features a maximum drain source resistance of 100 ohms. Operating temperature range spans from -55°C to 150°C. The device features a maximum gate source voltage of -35 volts.
Compact dimensions with length 5.2 mm, width 4.19 mm, and height 5.33 mm. Single configuration N-channel JFET suitable for Discrete Semiconductor applications. Ideal for electronic circuits requiring low noise and high input impedance.
Through hole mount type simplifies prototyping and manufacturing processes. Explore the range of onsemi semiconductor products at EnvMart for reliable, high-quality electronic components suitable for industrial, commercial, and laboratory use.
