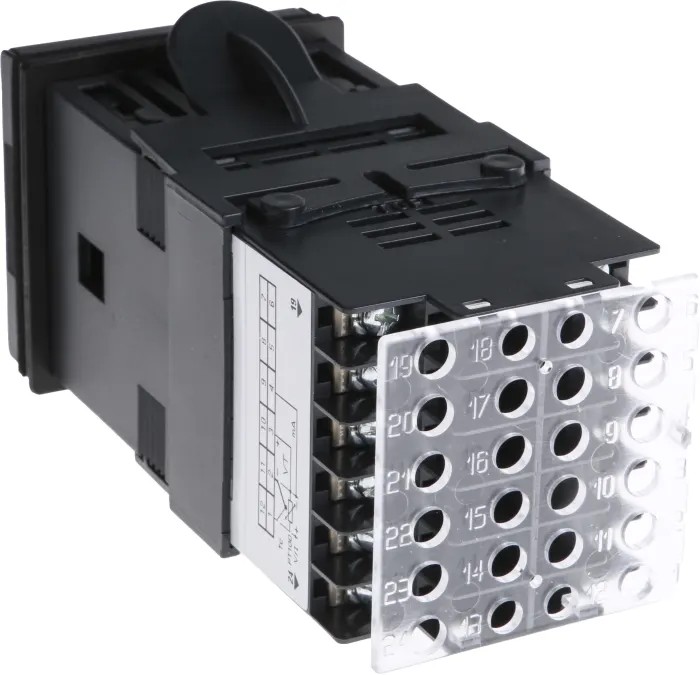

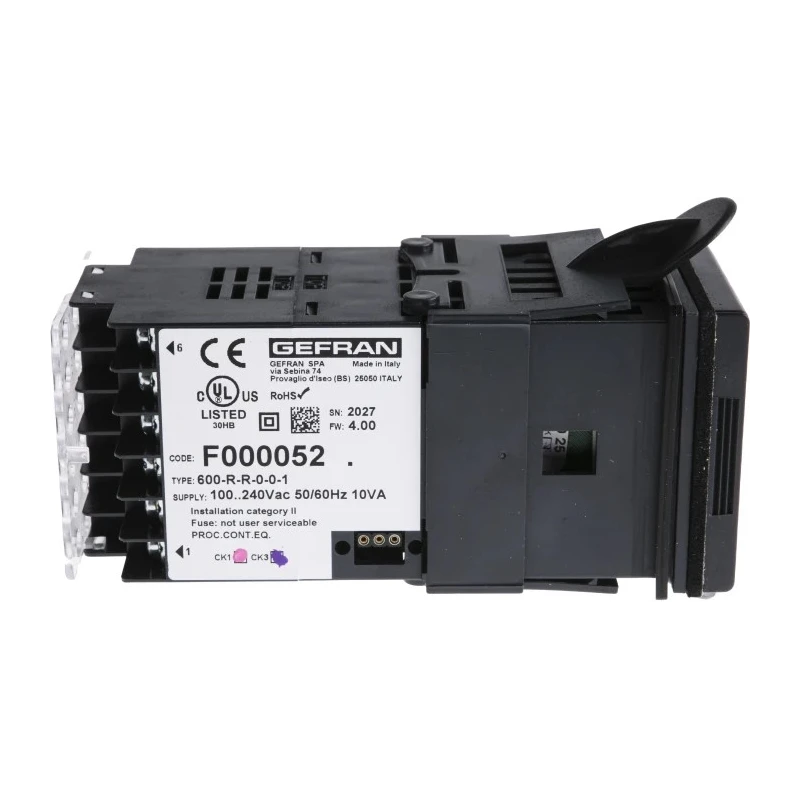

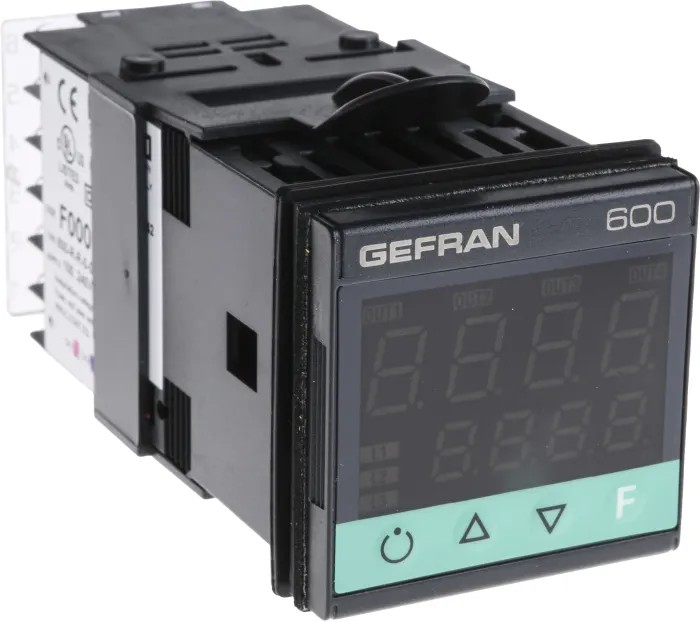

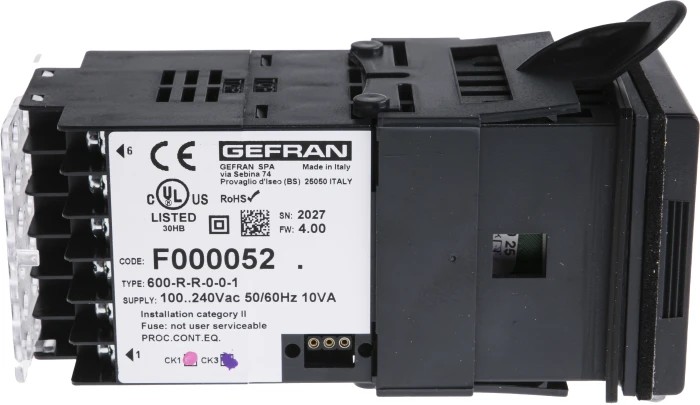

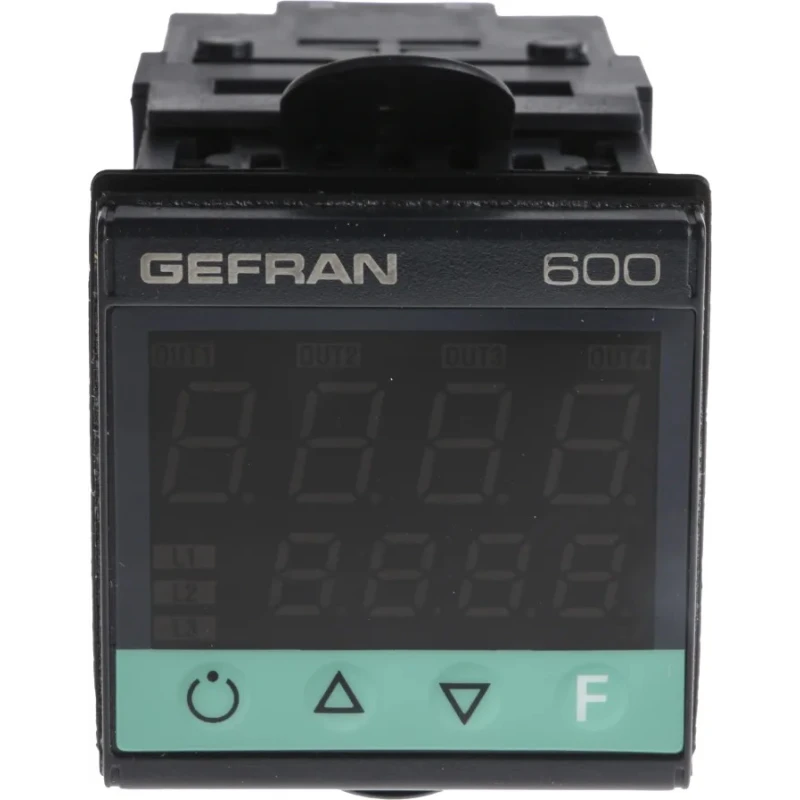

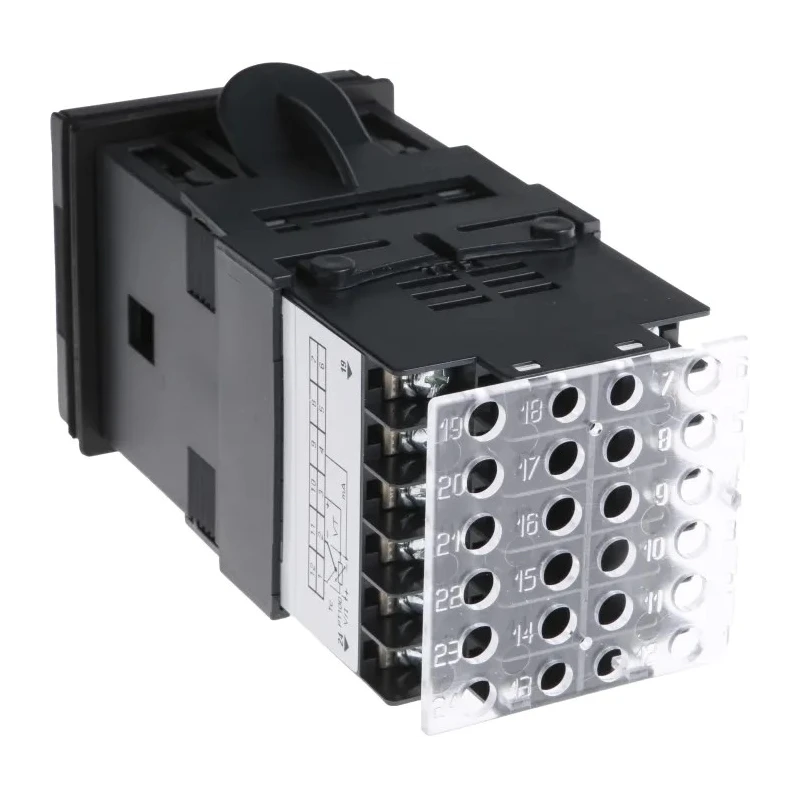

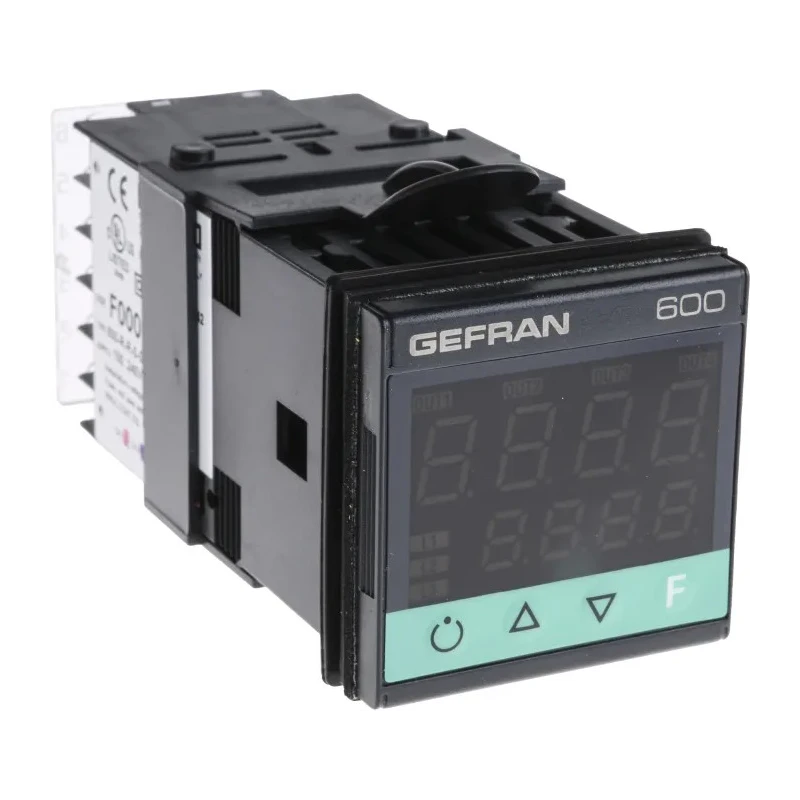

Gefran 600 Front Panel PID Temperature Controller 2 Output Relay 240V ac On-Off F000052/ 600-R-R-0-0-1
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | LED, Multi Line |
| Brand | Gefran |
| Length | 48mm |
| Model | F000052/ 600-R-R-0-0-1 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Front, Panel |
| Output type | Relay |
| Series | 600 |
| Input Type | PTC, RTD, 0 to 60 Mv, 1 to 5 V, 0 to 10 V, 0 to 5 V, 2 to 10 V, 4 to 20 mA, 10 V, 5 V, 20 mA, 1 V, 50 mAac (Ta), Thermocouple, 0 to 1 V |
| Maximum Operating Temperature | 50°C |
| Functions | auto-adaptive, auto-adjustable, Manual/Auto, Bumpless |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Maximum Voltage | 250V |
| Maximum Supply Voltage | 240V ac |
| Digital Comms | RS485 |
| Diagnostics | Error Messages, Displaying Errors |
| Panel Depth | 99mm |
| Controlled Phases | 3 |
| Firing Mode | Phase Angle |
Key Features
- Equipped with two relay outputs for effective control.
- Supports universal process variable input plus auxiliary analogue input from a current transformer.
- Features display with double line LED for setpoint and measurement.
- Includes advanced functions such as auto-adaptive and auto-adjustable control modes.
- IP65 rated casing suitable for harsh industrial environments.
- Optically isolated RS485 communication supporting MODBUS RTU and CENCAL protocols.
- Operating temperature range from 0°C to 50°C.
- Compact 48mm by 48mm front panel mount size for easy integration.
Product Description
Gefran F000052/ 600-R-R-0-0-1 is a front panel PID temperature controller designed for precise industrial temperature management with two output relays. The controller operates from 100VAC to 240VAC supply and features a compact form factor measuring 48mm x 48mm (1/16 DIN) with a panel depth of 99mm. It supports universal inputs, including PTC, RTD, thermocouples, and various voltage and current signals, plus an auxiliary input for current transformer measurement.
This temperature controller is equipped with advanced control functions such as auto-adaptive and auto-adjustable modes, manual/auto switching, bumpless transfer, self-tuning, and bump less manual/auto function. The LED multi-line display shows both the setpoint and the measured value clearly. Diagnostics include error message indication for faults like probe short-circuit or heater break.
The device is housed in a durable IP65 rated enclosure, suitable for harsh industrial environments. Communication is possible via an optically isolated RS485 serial line supporting protocols like CENCAL and MODBUS RTU.
This PID temperature controller is applicable in many industrial settings including climatic cells, cooling plants, die-casting plants, extrusion lines, food processing plants, ovens, packaging machines, and painting plants. It is CE certified and UL approved, ensuring compliance with international safety and performance standards.
Two relay outputs provide reliable on-off control at 240V AC. Universal input options allow versatile sensor connectivity. Auxiliary analogue input supports current transformer signals. Advanced control functions enhance performance and flexibility.
Compact 1/16 DIN panel mountable design saves space. Robust IP65 housing protects in industrial conditions. RS485 communication enables integration with automation systems. Operating temperature range of 0°C to 50°C. Ideal for process control across diverse industries.
Manufactured in Italy with full CE and UL certification. Explore EnvMart for a wide range of Temperature Controllers and industrial automation solutions that meet your precise control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from 0°C to 50°C.
It supports universal inputs including PTC, RTD, thermocouples, and various voltage and current signals.
The front panel mount dimensions are 48mm x 48mm, with a panel depth of 99mm.
This controller is equipped with two relay outputs.
It features optically isolated RS485 communication supporting MODBUS RTU and CENCAL protocols.
The maximum supply voltage for this temperature controller is 240V AC.
It includes advanced functions such as auto-adaptive, auto-adjustable modes, manual/auto switching, and self-tuning.
The enclosure has an IP65 rating, making it suitable for harsh industrial environments.
The maximum current rating is 5A.
It provides diagnostics including error message indications for faults like probe short-circuit or heater break.
The control type is On-Off.
It is manufactured in Italy.
