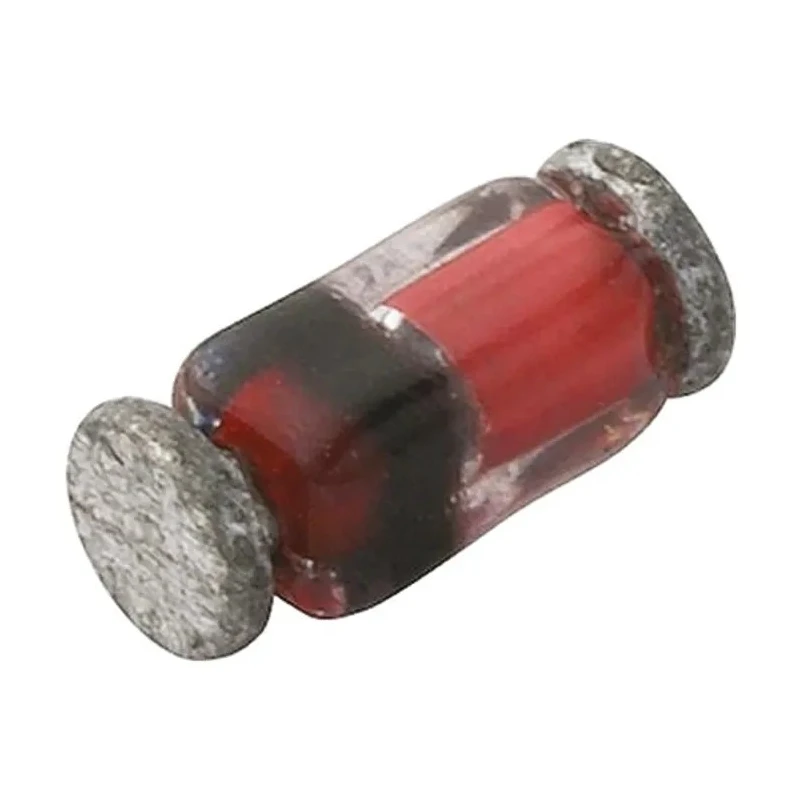

Vishay Silicon Junction Switching Diode, Single, 300 mA, 2-Pin, 50 V, SOD-80 Package LS4151GS08

Vishay LS4151GS08 is a single silicon junction switching diode designed for high reliability and efficiency in electronic and power connector applications. It features a SOD-80 surface mount package with 2 pins and supports a maximum forward current of 300 mA and peak reverse voltage of 50 V. The diode provides fast switching capability with a peak reverse recovery time of 4 ns, making it suitable for high frequency circuits.

The device uses a glass passivated junction and epoxy molding which meets UL 94 V-0 flammability standards ensuring robust mechanical and thermal performance. Matte tin plated leads provide excellent solderability, conforming to J-STD-002 and JESD 22-B102 specifications. The color band marking clearly denotes the cathode end for correct installation.

Operating temperature range from -65°C to 175°C allows use in demanding industrial, laboratory, and commercial electronics environments. Its low leakage current (typically less than 0.2 microamperes) and high forward surge capability (up to 2 A) further enhance performance in sensitive circuits.

The diode is commonly employed in applications such as high voltage rectification in G2 grid CRT and TV circuits, as well as in snubber circuits for camera flashes where fast switching and reliability are critical.

The diode's single silicon junction design enables efficient rectification and switching. Fast switching with 4 ns peak reverse recovery supports high-frequency applications. Compact SOD-80 package with small footprint eases PCB layout.

Wide operating temperature range suits various industrial applications. Robust epoxy molding provides resistance to mechanical and thermal stresses. Tin plated leads facilitate soldering in automated assembly lines. High forward surge capability ensures endurance under transient currents.

Low leakage current increases overall circuit efficiency and reliability. Color band marking aids correct diode orientation during installation.

This diode is recommended for use in electronic components, power connectors, semiconductors, and Discrete Semiconductor applications across industrial, manufacturing, laboratory, and consumer electronics sectors.
