SMC CDU Series 10 mm Pneumatic Piston Rod Cylinder Double Acting Aluminium Alloy CDUK10-10D
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 67mm |
| Model | CDUK10-10D |
| Series | CDU |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 10mm |
| Rod Type | Single |
| Lubrication | Not required |
| Action Type | Double Acting |
| Proof Pressure | 10.5 bar |
| Cushioning Type | Rubber |
| Maximum Piston Speed | 500 mm/s |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Stroke Allowance | +1.0 mm |
Key Features
- Compact double acting pneumatic cylinder ensures precise linear motion for industrial automation.
- Features a durable aluminium alloy body for enhanced stability and corrosion resistance.
- 10 mm stroke length and single male piston rod design ideal for space-saving installations.
- Rubber cushioning at both ends reduces operational impact and noise.
- Designed for easy mounting and direct installation thanks to rectangular profile.
- Supports high operational speed up to 500 mm/s, enhancing productivity.
- Operates reliably within temperature range of 5°C to 60°C, with a maximum of 70°C.
- Suitable for proof pressures up to 10.5 bar and maximum operating pressure of 7 bar.
Product Description
SMC CDU Series CDUK10-10D is a compact and robust pneumatic piston rod cylinder engineered for demanding industrial applications. Featuring a double acting mechanism, this cylinder offers smooth, bi-directional linear actuation with a 10 mm stroke, ideally suited for precise positioning tasks in automated machinery, material handling, and process control systems.
The aluminium alloy construction delivers excellent strength and resistance to corrosion, making it suitable for environments with moisture or contaminants. Its single, male piston rod conforms to metric thread standards, facilitating straightforward integration into existing pneumatic setups. The rectangular form factor provides direct-mount versatility, saving installation space and ensuring precise alignment.
Rubber cushions at both ends of the cylinder minimize impact forces, reduce vibration, and maintain quiet operation. The CDUK10-10D supports a maximum piston speed of 500 mm/s, effectively meeting high-cycle automated operations. Ambient and fluid temperatures from 5°C up to 60°C are supported, with tolerance for short durations up to 70°C. Lubrication is not required for maintenance, further simplifying upkeep.

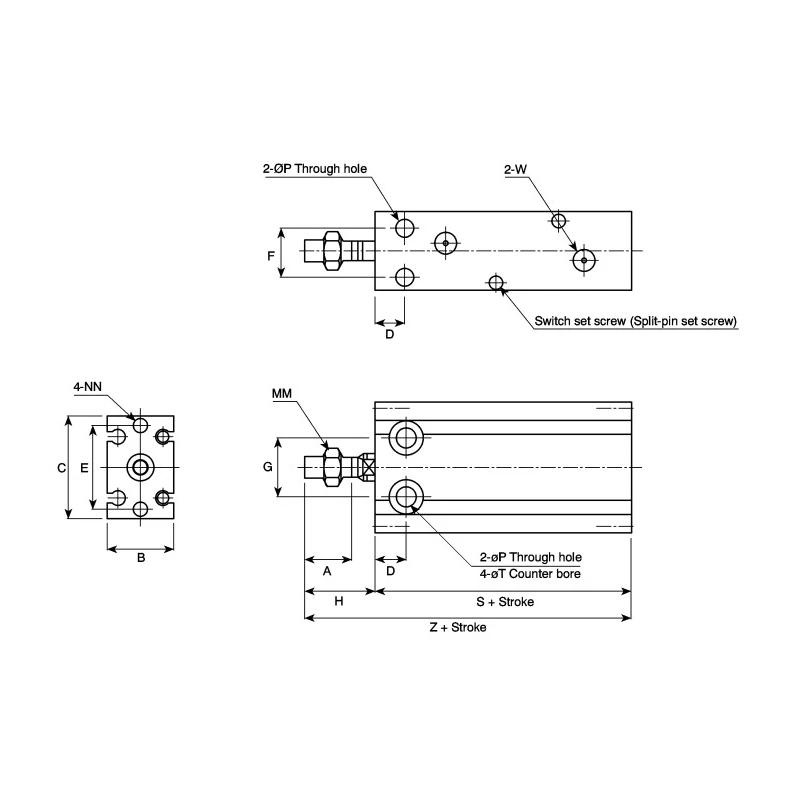

With a maximum operating pressure of 7 bar (proof pressure up to 10.5 bar), this cylinder safely handles demanding pneumatic workloads across manufacturing, packaging, and laboratory systems. The inclusion of mounting grooves allows for auto-switch accessories and sensor integration, expanding control capabilities. Port size is M5, providing compatibility with standard pneumatic fittings.
The CDUK10-10D is designed for reliability and longevity, providing consistent performance in industrial, laboratory, and light mechanical automation settings. Typical applications include assembly machines, pick-and-place robots, and conveying solutions where compact form and precise motion are critical.
Industrial categories: Pneumatic Cylinder, Pneumatic Actuator, Machine Automation Components, Packaging Equipment, Laboratory Automation. Browse more SMC Pneumatic Cylinders and industrial automation solutions on EnvMart for the latest models and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 10 mm.
The maximum operating pressure for the CDUK10-10D is 7 bar, with a proof pressure of up to 10.5 bar.
The cylinder features a body made of aluminium alloy, providing strength and corrosion resistance.
This model supports a maximum piston speed of 500 mm/s, suitable for high-cycle operations.
It operates reliably within a temperature range of 5°C to 60°C, with a maximum tolerance of 70°C for short durations.
No, lubrication is not required for maintenance of this pneumatic cylinder, simplifying upkeep.
This model features rubber cushioning at both ends, which reduces operational impact and noise.
The rod type of this pneumatic cylinder is single, with a male piston rod that conforms to metric thread standards.
The length of this pneumatic cylinder is 67 mm.
This pneumatic cylinder is suitable for applications in assembly machines, pick-and-place robots, and conveying solutions.
It is designed for easy mounting with a rectangular profile that allows for direct installation and precise alignment.
The cylinder includes rubber cushioning, a compact design, and supports high operational speeds, enhancing productivity in automation tasks.
