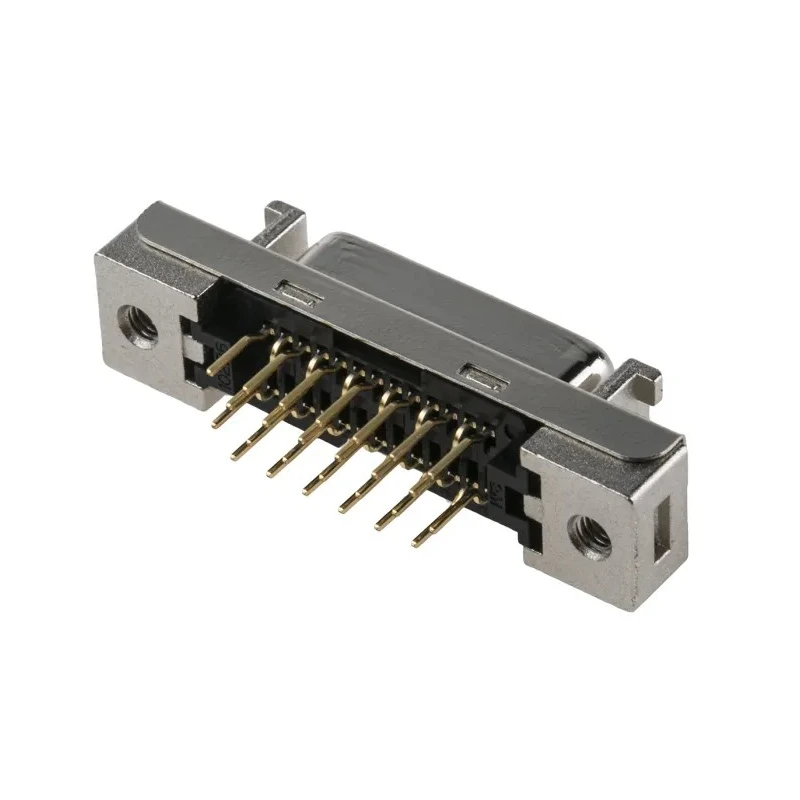

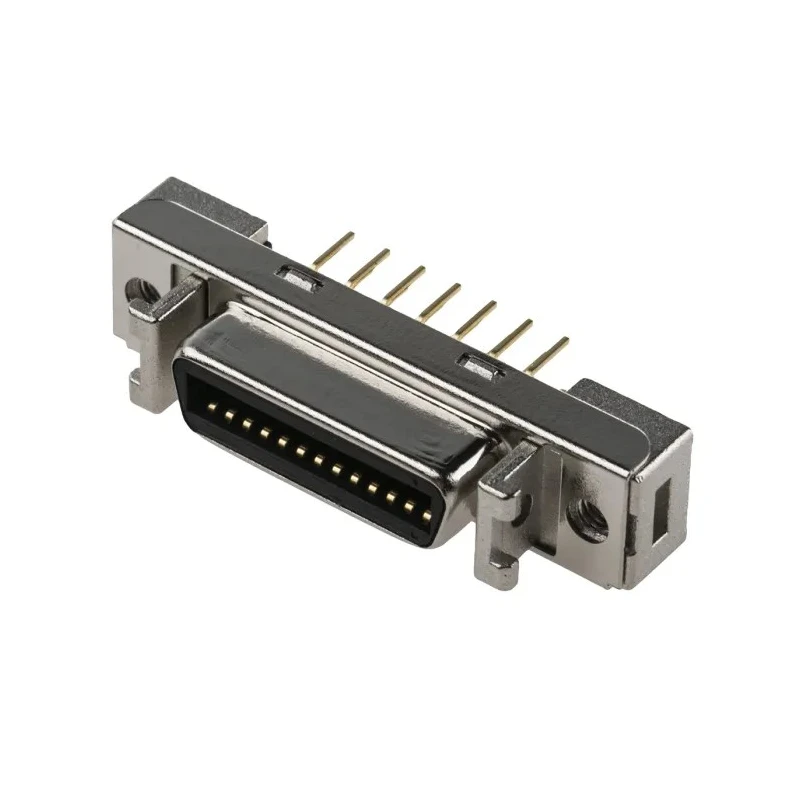

3M 26 Way Female Straight Through Hole SCSI Connector 2.54 mm Pitch, Solder Termination 10226-6212PL
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 500V |
| Brand | 3M |
| Orientation | Straight |
| Current | 1A |
| Model | 10226-6212PL |
| Mount Type | Through Hole |
| Housing Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Series | 102 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| ER - Connector, rectangular, IBrand | 3M |
Key Features
- Features 26 gold over nickel plated copper alloy contacts for robust conductivity.
- Utilizes a zinc alloy housing with a straight orientation for through-hole mounting.
- Rated for 1A current and 500V voltage with a wide operating temperature range from -20°C to 85°C.
- Designed with a latch and screw lockdown to maintain stable connections on PCBs.
- Meets RoHS compliance standards ensuring environmental safety.
- Compact dimensions enable high-density installations in telecom and hospital equipment.
- Suitable for high-speed I/O technology with excellent EMI/ESD protection.
- Connector gender is female, optimized for mating with cable-mounted solder plugs.
Product Description
3M 10226-6212PL is a 26 Way Female Straight Through Hole SCSI Connector engineered for high-density, reliable electrical connections in computing, telecommunications, and medical equipment applications. Featuring a 2.54 mm pitch and solder termination, this connector is designed for robust PCB mounting using the through-hole technique to ensure secure and vibration-resistant bonds.
The connector houses 26 gold over nickel plated copper alloy contacts within a durable zinc alloy housing. It carries a current rating of 1 ampere and withstands voltage up to 500 volts. Its operating temperature range extends from -20°C to +85°C, supporting demanding industrial and commercial environments.

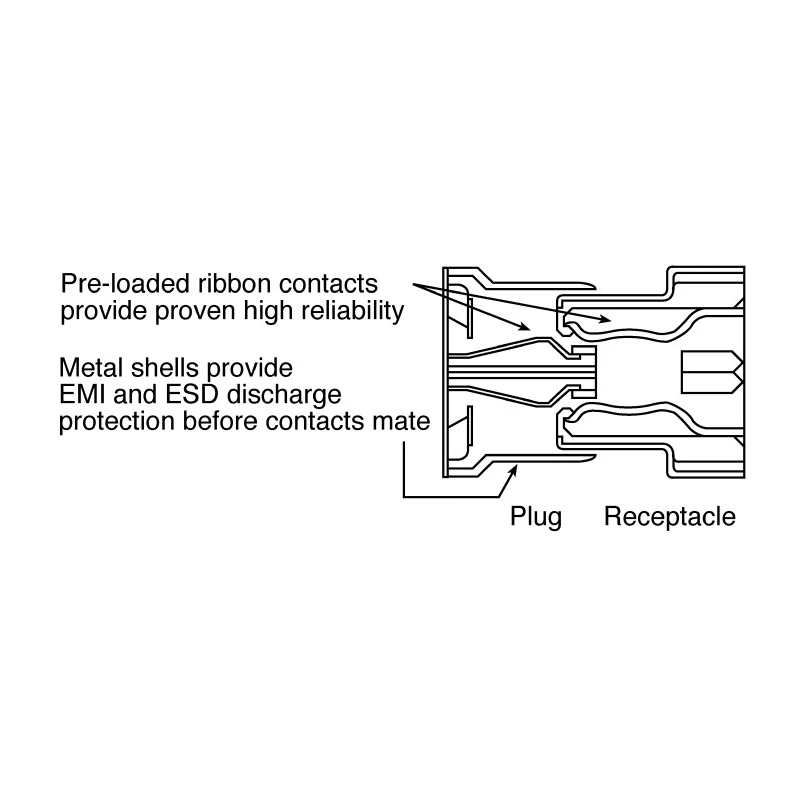

Additional design features such as screw lockdown and latch mechanisms provide secure retention on PCBs, minimizing connection failures during frequent plug/unplug cycles. The connector ensures excellent EMI/ESD protection, critical for sensitive high-speed I/O technology applications.
It mates specifically with cable-mounted solder plugs from the same series, providing system-level compatibility. 26 gold-plated copper alloy contacts. Zinc alloy straight orientation housing. 1 ampere current rating, 500 volts maximum voltage.
Wide operating temperature range from -20°C to 85°C. Through-hole solder termination for durable PCB mounting. Screw lockdown and latch for stable connections. RoHS compliant and manufactured in the Philippines. Ideal for hospital, telecommunications and high-speed I/O use cases.
Explore more 3M connectors and accessories in the Electronics Components category on EnvMart to find matching cables and adaptors for your projects.
Explore more products in our Electronic Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 1 ampere.
It can withstand a maximum voltage of 500 volts.
The pitch of the contacts is 2.54 mm.
The connector features a zinc alloy housing and gold over nickel plated copper alloy contacts.
It operates within a temperature range of -20°C to +85°C.
It utilizes a through-hole solder termination for durable mounting on PCBs.
Yes, it ensures excellent EMI and ESD protection, making it suitable for high-speed I/O technology applications.
It is designed with a latch and screw lockdown to maintain stable connections on PCBs.
Yes, it meets RoHS compliance standards, ensuring environmental safety.
The connector has a total of 26 contacts.
It is suitable for applications in telecommunications, computing, and medical equipment.
The connector is manufactured in the Philippines.
