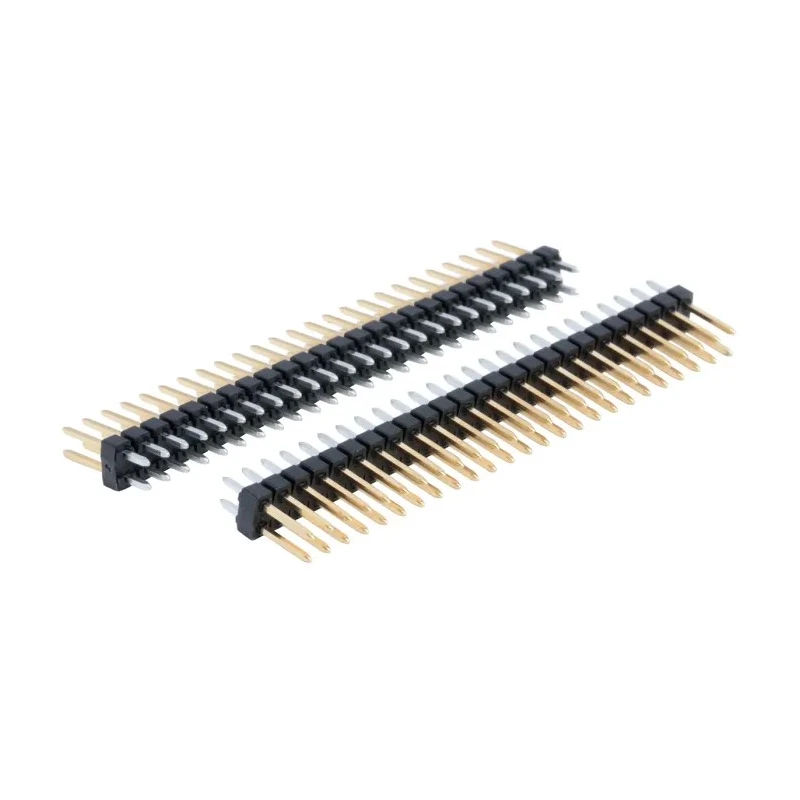

Molex C-Grid III Series Straight Through Hole Pin Header 50 Contacts 2.54 mm Pitch 2 Row Unshrouded 90131-0785
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Designed for board-to-board and wire-to-board applications.
- Features a breakaway design for custom length configurations.
- Pins provide high retention force ensuring secure mating connections.
- Constructed with brass contact material plated with gold for enhanced conductivity.
- Rated for currents up to 3A and voltage up to 350V.
- Operating temperature range from -55°C to 125°C.
- Mount type is through-hole for secure PCB mounting.
- Unshrouded male contacts allow easy mating with compatible sockets.
Product Description
Molex 90131-0785 C-Grid III Series Straight Through Hole Pin Header from Molex provides a 50-contact configuration with 2.54 mm row pitch designed for reliable and flexible interconnection solutions. Manufactured with brass contacts plated in gold and housed in durable polyester, this connector supports current ratings up to 3A and voltage up to 350V.
Its unshrouded straight orientation and through-hole mounting provide a robust mechanical and electrical connection suitable for both board-to-board and wire-to-board applications. The pin header includes a breakaway feature allowing easy customization to meet specific design requirements.
Operating across a broad temperature range of -55°C to 125°C, this connector ensures high mechanical stability and long-lasting performance after soldering. Ideal for use in industrial automation, computing devices, medical equipment, telecommunications, transportation electronics, and consumer electronics, it meets modern interconnection demands without standards or certifications restrictions.
Breakaway design for flexible length configuration. Gold-plated brass contacts for reliable conductivity and corrosion resistance. Through-hole mount ensures secure PCB attachment. Rated for 3A current and 350V voltage. Complies with industrial mechanical stability requirements.
Unshrouded male pin configuration for easy mating. Wide operating temperature (-55°C to 125°C) supports various environments. Compatible with C-Grid III series sockets and wire housings.
This Molex product is part of the broad C-Grid III interconnection system known for durability, flexibility, and high retention force, making it a preferred choice for designers and manufacturers across sectors such as industrial, medical, and automotive equipment. Explore similar PCB header products and technical resources on EnvMart to support your electronic design and manufacturing needs.
Explore more products in our Electronic Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this pin header is 3A.
This connector is rated for a voltage of up to 350V.
The operating temperature range for this model is from -55°C to 125°C.
This connector uses a through-hole mounting type for secure PCB attachment.
The contacts are made of brass and are plated with gold, while the housing is made of durable polyester.
This pin header features 50 contacts arranged in 2 rows with a 2.54 mm pitch.
The connector has unshrouded male contacts which allow for easy mating with compatible sockets.
Yes, it features a breakaway design that allows for custom length configurations.
This model uses solder termination for secure connections.
It is suitable for board-to-board and wire-to-board applications across various sectors including industrial automation and telecommunications.
The tail pin length of this pin header is 2.9 mm.
The mating pin length for this connector is 6.75 mm.
