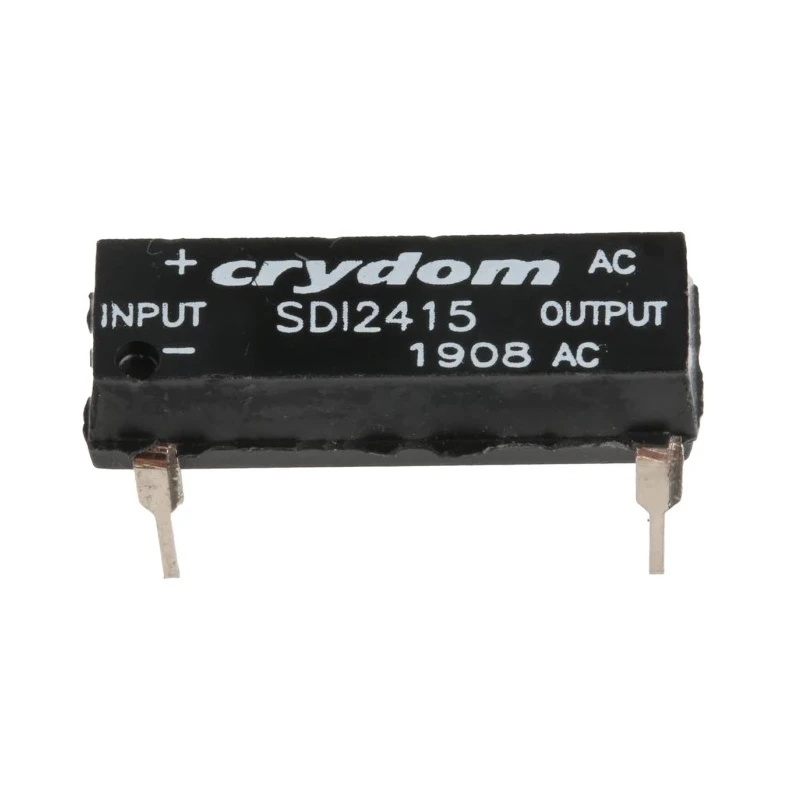

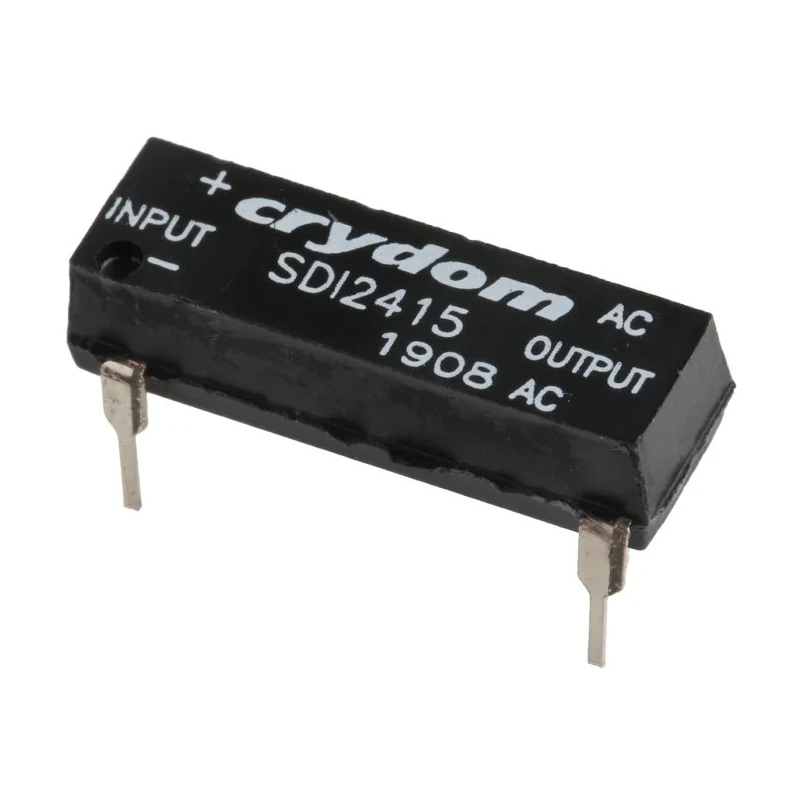

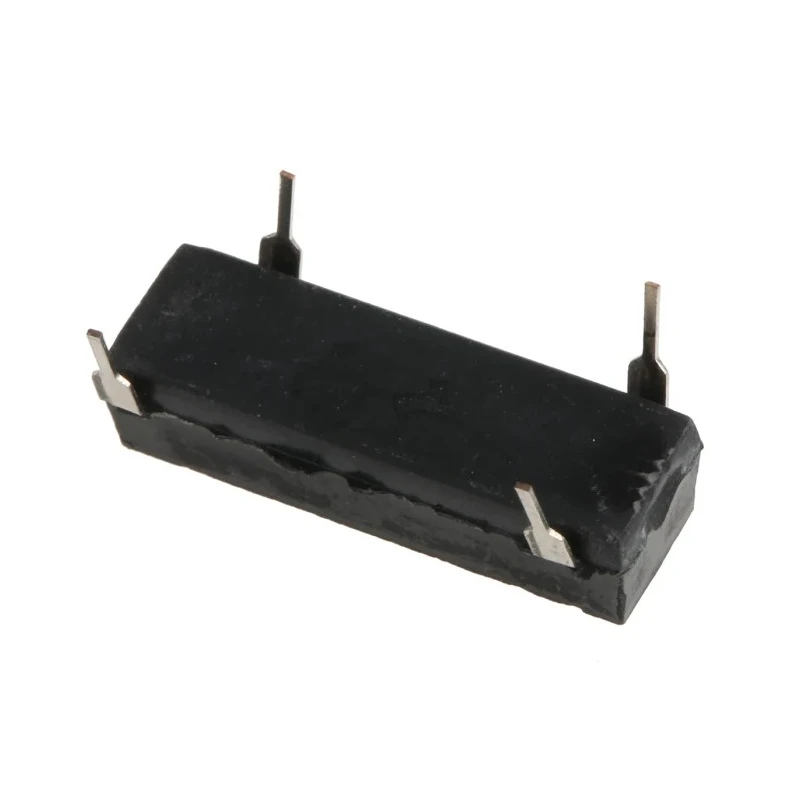

Crydom SD Series Solid State Relay PCB Mount, 1.5 A Load, 280 Vrms Load, 35V Control SDI2415

Crydom SDI2415 solid state relay is a high-quality component designed for industrial and automation applications requiring reliable switching. It is engineered for PCB mounting with a DIP package that facilitates compact, high-density board layouts. This relay supports a maximum load current of 1.5 A and a maximum load voltage of 280 Vrms, making it suitable for controlling moderate power AC loads.

The relay operates with a control voltage range from 10V to 35V, allowing flexible integration with various control systems. Its zero cross switching functionality minimizes electrical noise and prolongs load life by switching the load at the zero voltage crossing point.

Measuring 21.6 mm in length, 6.7 mm in width, and 4.8 mm in height, this device is designed for high-density PCB installations. The screw terminal type ensures secure and reliable electrical connections. It is rated with an IP20 protection level, providing protection against solid objects larger than 12 mm.

The operating temperature range from -30°C to +80°C supports use in demanding environments. The relay features a very low off-state leakage current of 0.01 mA and a maximum output capacitance of 2 pF, ensuring minimal power loss and high switching precision. The isolation voltage of 3.75 kV offers excellent electrical separation between input and output circuits for safety and reliability.

This solid state relay complies with CSA, UR, and RoHS standards, ensuring compliance with quality and environmental regulations. It is manufactured in Mexico with superior manufacturing processes, suitable for industrial, automation, HVAC, and manufacturing system applications.

Operates with a control voltage range of 10V to 35V for flexible application. Features zero cross switching function for reduced electrical noise. Compact DIP package with dimensions 21.6mm length, 6.7mm width, and 4.8mm height.

IP20 rated with screw terminal type for secure connections. Wide operating temperature range from -30°C to +80°C for durability. Very low off-state leakage current of 0.01mA ensuring energy efficiency. Isolation voltage of 3.75 kV ensures electrical safety and reliability.

Meets CSA, UR, and RoHS standards for quality and environmental compliance. Explore more Crydom Solid State Relays and related automation components on EnvMart for industrial and electronic applications.
