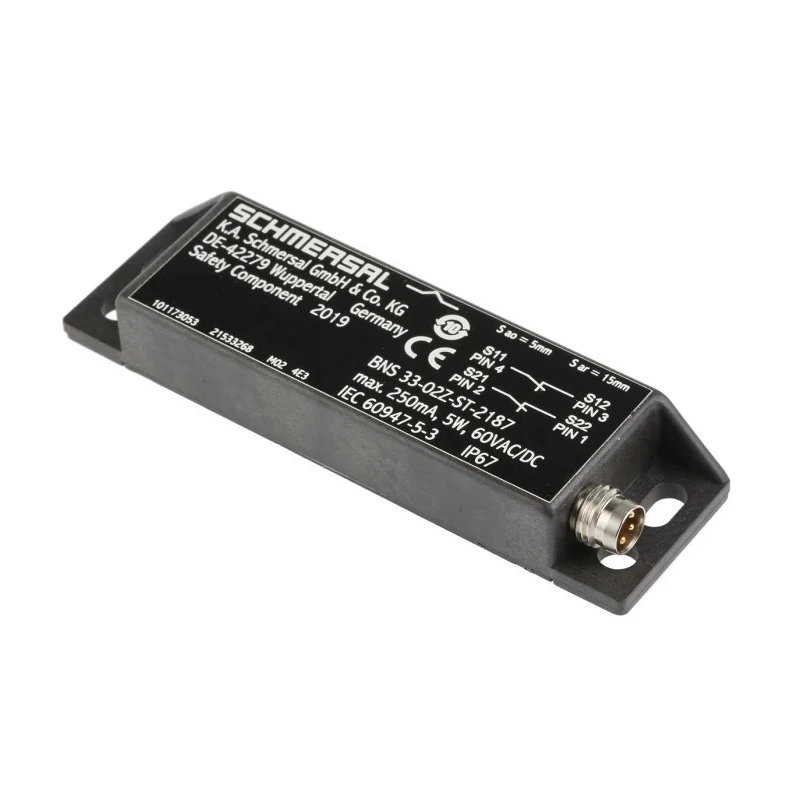

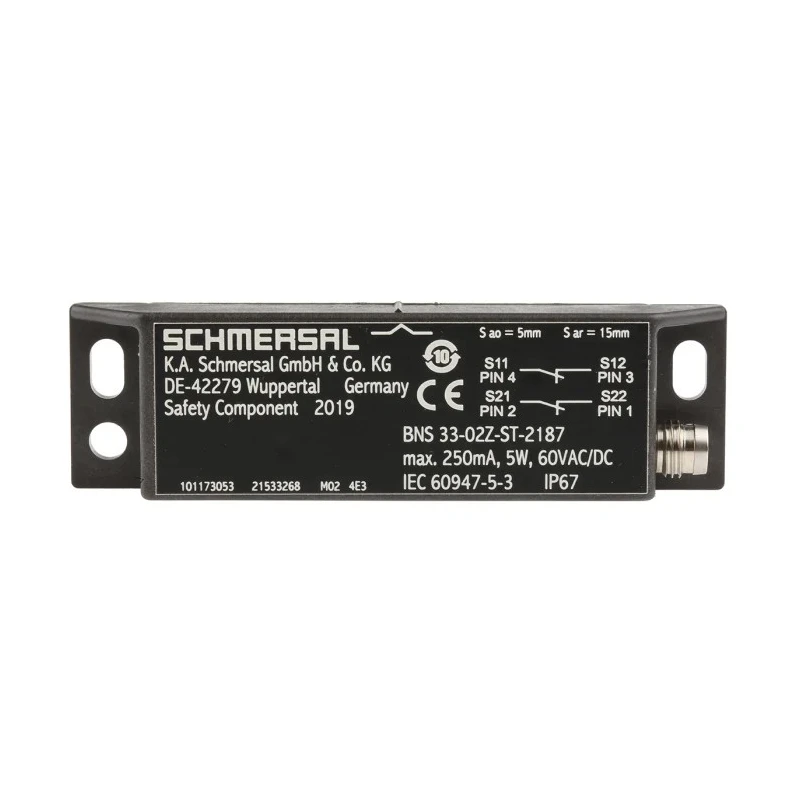

Schmersal BNS33 Series Magnetic Safety Switch Plastic Housing 2 NO Contacts M8 Connector IP67
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 88mm |
| Model | BNS33 |
| Connection Type | M8 |
| Depth | 13mm |
| IP Rating | IP67 |
| Width | 25mm |
| Housing Material | Plastic |
| Series | BNS33 |
| Actuator Type | Coded |
| Safety Category | 4 |
| Switching Current | 0.25A |
| Terminal type | M8 |
| Sensor Principle | Magnetic |
| Body Style | Rectangular |
| Standards/Approvals | EAC, IEC, BG, EN, cULus |
| Housing Colour | Black |
| Safety Contacts | 2 NO |
| Switching Distance | 18 mm |
| Schmersal BNS33 Series Magnetic Safety Switch, Plastic Housing, 2 NC, CableBrand | Schmersal |
Key Features
- Robust plastic rectangular housing with black color and IP67 rating ensures protection against dust and water.
- Features coded actuator type for tamper-resistant operation with switching current of 0.25A.
- Has 18 mm switching distance and operates up to 60V AC/DC voltage.
- Non-contact magnetic sensor principle suitable for machine access panel and assembly line safety.
- Compact dimensions of 88mm length, 25mm width, and 13mm depth support versatile installation.
- Designed for industrial use with standards approvals including EAC, IEC, BG, EN, and cULus certification.
- Operating temperature range from -25°C to +70°C for varied factory environments.
- Suitable for security systems, food processing industry, and hazardous area exclusion applications.
Product Description
Schmersal BNS33 BNS 33-02Z-ST-2187 Magnetic Safety Switch is designed for non-contact safety monitoring in industrial environments. Featuring a robust plastic rectangular housing with black color and IP67 rating, it ensures protection against dust and water ingress. The switch incorporates 2 Normally Open (NO) safety contacts with a switching current capacity of 0.25A and functions effectively up to 60V AC/DC.
The device utilizes a coded actuator type based on magnetic sensor principles, offering tamper-resistant operation by preventing bypass with ordinary magnets. The 18 mm switching distance and secure M8 4-pin connector allow simple and reliable integration into machine access panels, assembly lines, and security systems.
With compact size dimensions of 88 mm length, 25 mm width, and 13 mm depth, this switch is suited for installations where space is limited. It operates reliably in temperature ranges from -25°C to +70°C, making it adaptable to diverse industrial environments including food processing and manufacturing facilities.
The Schmersal BNS33 series complies with rigorous safety standards such as EAC, IEC, BG, EN, and cULus, ensuring dependable performance in safety-critical applications. Although the actuator is sold separately, this model is engineered for high safety category 4 applications, supporting hazardous area exclusion and equipment interlocking.
Robust plastic rectangular housing with protection class IP67. 2 NO contacts provide secure switching. Coded magnetic actuator prevents tampering. 4-pin M8 connector for easy wiring. Compact dimensions suited for varied installations.
Wide operating temperature range from -25°C to +70°C. Compliance with multiple international safety standards. Ideal for machine safety, access panels, assembly lines, and food industry usage.
This Schmersal magnetic safety switch belongs to the Electronics & Electricals category under Switches & Sockets and Safety Switches, offering industrial and manufacturing customers a reliable non-contact safety solution. Browse additional products from Schmersal and related Safety Switches on EnvMart for comprehensive automation and safety component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This unit utilizes a coded actuator type based on magnetic sensor principles, which helps prevent tampering.
The switch has an IP67 rating, ensuring protection against dust and water ingress.
It has compact dimensions of 88mm in length, 25mm in width, and 13mm in depth.
It operates reliably in a temperature range from -25°C to +70°C.
It complies with multiple safety standards including EAC, IEC, BG, EN, and cULus.
It features a secure M8 4-pin connector for easy wiring.
The switching distance is 18 mm.
The housing is made of robust plastic and is colored black.
It is designed for high safety category 4 applications.
