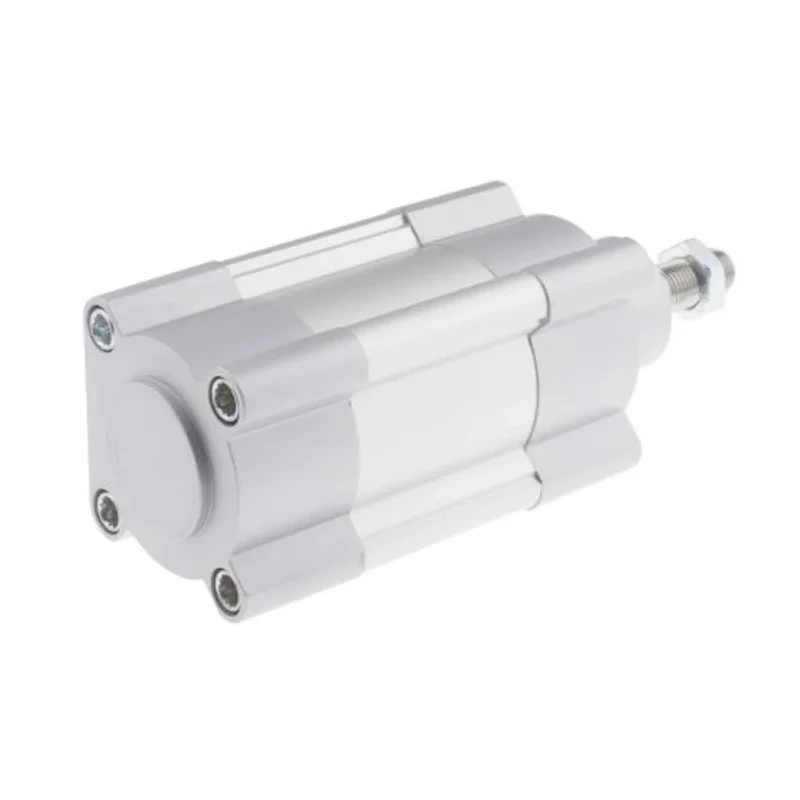

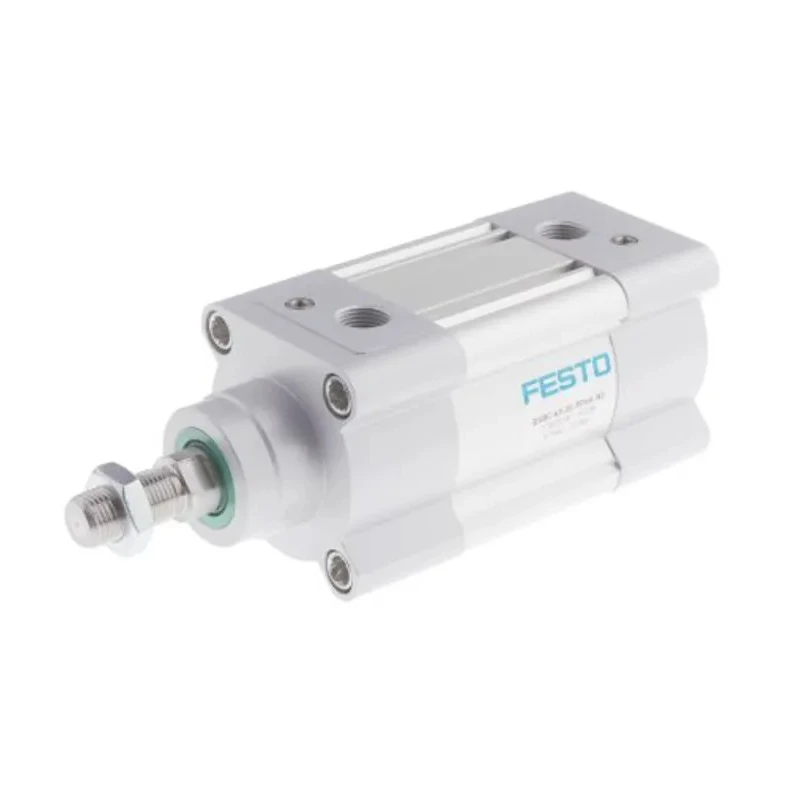

Festo Pneumatic Piston Rod Cylinder 63mm Bore, 40mm Stroke, Aluminium Body, Double Acting DSBC-63-40-PPSA-N3

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Piston Rod Cylinder 63mm Bore, 40mm Stroke, Aluminium Body, Double Acting DSBC-63-40-PPSA-N3

Name: Festo Pneumatic Piston Rod Cylinder 63mm Bore, 40mm Stroke, Aluminium Body, Double Acting DSBC-63-40-PPSA-N3
Brand: FESTO
SKU: 145417
Price: 212.2 USD
Availability: InStock



Category Pneumatic Piston Rod Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	Aluminium
Maximum Operating Pressure	12 bar
Height	75mm
Length	193.1mm
Model	DSBC-63-40-PPSA-N3
Gross Weight	1.7kg
Width	75mm
Mount Type	Through Hole
Series	DSBC
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	40mm
Bore Diameter	63mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 15552, RoHS
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Size	3/8 in G

Key Features

The cylinder has a 63mm bore diameter with a 40mm stroke length.
Constructed from aluminium body and equipped with a high-alloy steel piston rod.
Double acting design operates via compressed air applied to both advancing and retracting.
Self adjusting pneumatic cushioning ensures smooth operation without manual adjustment.
Designed according to ISO 15552 standard for versatile mounting options.
Maximum operating pressure is 12 bar with temperature range from -20°C to 80°C.
Piston rod has a male 3/8 in G threaded connector.
Lightweight at 1.7 kg with compact dimensions of 193.1 mm length, 75 mm height and width.

Product Description

Festo DSBC-63-40-PPSA-N3 Pneumatic Piston Rod Cylinder is engineered with a 63mm bore and a 40mm stroke length, housed in a robust aluminium body. This double acting cylinder features a high-alloy steel piston rod ensuring excellent performance and long service life. It operates with self adjusting pneumatic cushioning at both ends of the barrel to provide smooth and low-noise operation without the need for manual adjustments.

The cylinder conforms to ISO 15552 standards, facilitating interchangeability and flexible mounting in any position, including through hole mounting. The design includes slots for flush mounting of proximity sensors on the magnetic piston rod for non-contact position detection.

Operating pressures up to 12 bar with a temperature range from -20°C to 80°C makes this actuator suitable for demanding industrial environments. The piston rod's male 3/8 in G thread simplifies integration with mechanical linkages.

The 193.1 mm length, 75 mm width and height, and weight of 1.7 kg make it compact and lightweight for ease of installation and operation. This pneumatic actuator is ideal for industrial automation, manufacturing lines, hydraulic & pneumatic tools applications, and fluid power systems requiring reliable, precise linear motion.

The cylinder has a 63mm bore diameter with a 40mm stroke length. Constructed from aluminium body and equipped with a high-alloy steel piston rod. Double acting design operates via compressed air applied to both advancing and retracting.

Self adjusting pneumatic cushioning ensures smooth operation without manual adjustment. Designed according to ISO 15552 standard for versatile mounting options. Maximum operating pressure is 12 bar with temperature range from -20°C to 80°C.

Piston rod has a male 3/8 in G threaded connector. Lightweight at 1.7 kg with compact dimensions of 193.1 mm length, 75 mm height and width. Suitable for industrial, manufacturing, and automation applications requiring precise linear actuation.
