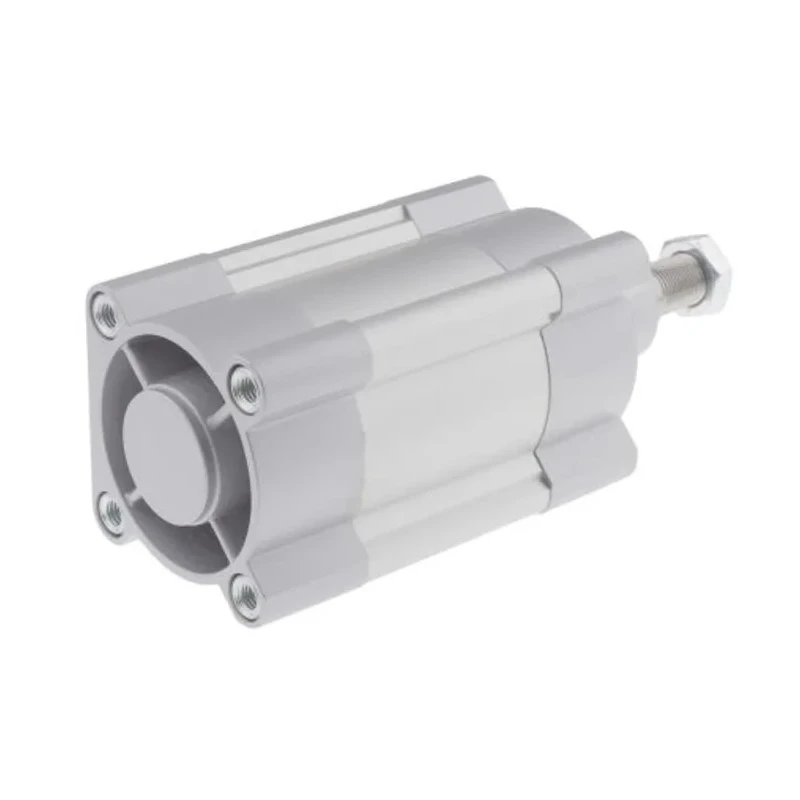

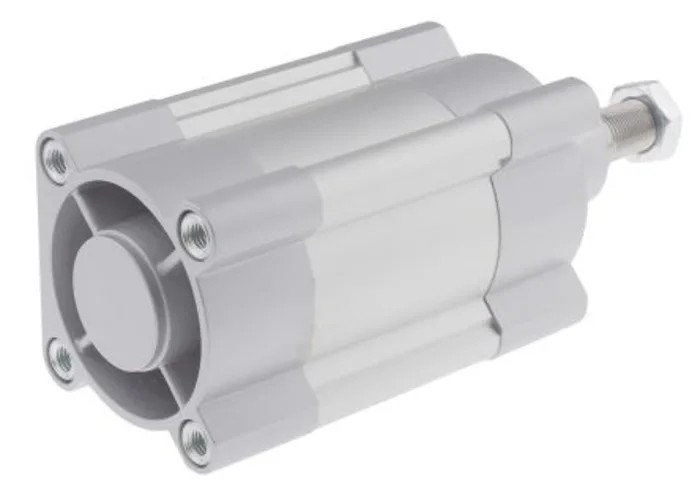

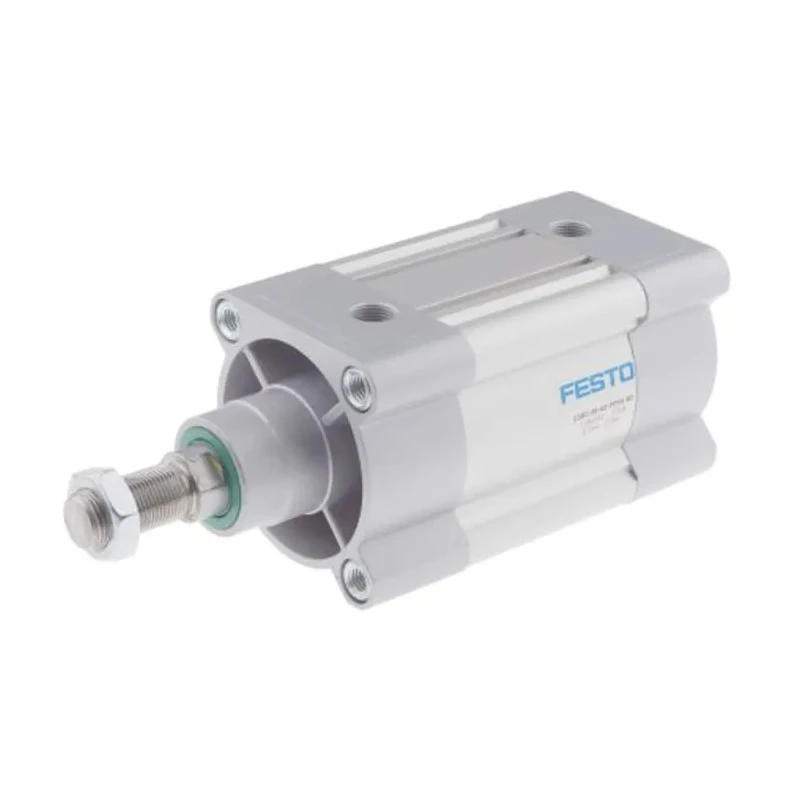

Festo Pneumatic Piston Rod Cylinder 80mm Bore, 25mm Stroke, Double Acting, Aluminium Body DSBC-80-25-PPVA-N3

Festo DSBC-80-25-PPVA-N3 Pneumatic Piston Rod Cylinder is a precision double acting pneumatic actuator engineered for diverse industrial uses including mechanical automation, fluid power systems, and manufacturing processes. The cylinder features an 80mm bore diameter with a 25mm stroke, crafted from lightweight yet robust aluminium body, ensuring low weight and long service life. It operates under a maximum pressure of 12 bar with an operating temperature range from -20°C to 80°C, making it suitable for demanding factory floor environments.

This DSBC series model incorporates adjustable pneumatic cushioning at both ends, which absorbs energy effectively in the end positions, reducing noise and vibrations and prolonging cylinder and machine component life. The piston rod is constructed from high-alloy steel with male threading (3/8 in G) for secure mounting. Its double acting design enables bidirectional pneumatic control, allowing compressed air to advance or retract the piston rod.

The cylinder conforms to ISO 15552 specifications, granting easy interchangeability and flexible mounting in various orientations through its through hole mount type. Magnetic piston rods facilitate contactless position sensing with proximity sensors mounted in the cylinder slots, enhancing automation control and safety.

Typical applications include material handling, packaging machinery, automotive manufacturing, and other industrial automation sectors where precise, reliable linear motion is essential. The compact dimensions of 217.6mm length, 93mm width and height, combined with a gross weight of 2.7 kg, allow easy integration into existing systems.

Manufactured in Germany, this DSBC series pneumatic cylinder offers proven quality, robustness, and operational efficiency for industrial and laboratory pneumatic actuation needs. Complies with ISO 15552 standard for industrial pneumatic cylinders.

Adjustable end cushioning reduces operational noise and vibration. High-alloy steel piston rod with threaded connector for durability. Double acting mechanism for controlled linear motion. Through hole mounting type offers versatile installation options.

Wide operating temperature range from -20°C to 80°C. Compact size and lightweight aluminium body design. Magnetic piston rod compatible with proximity sensors. Maximum operating pressure of 12 bar for heavy-duty applications.

Made in Germany to high-quality manufacturing standards. Explore more Festo pneumatic systems and cylinders on EnvMart for your industrial automation and fluid power requirements.
